| Product Line | Driveline & Axles |
| Category Name | Center Support Bearings |

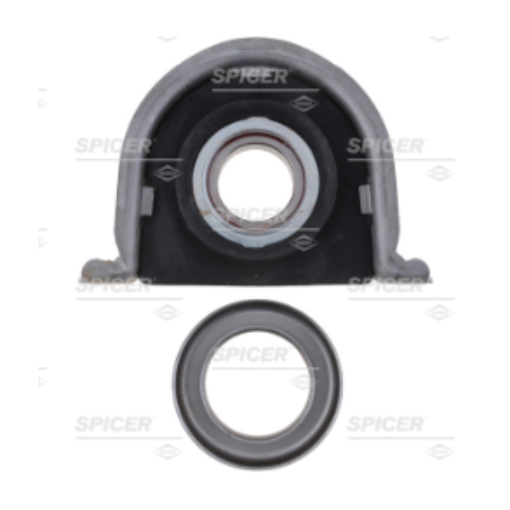

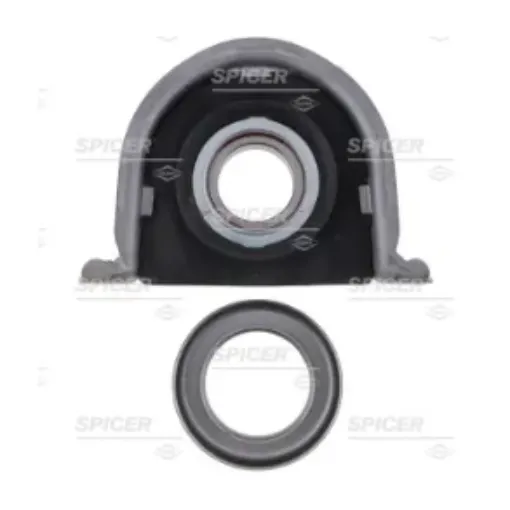

| Part Type | Drive Shaft Center Support Bearing |
| Alternate Part Name | Hanger Bearing, Carrier Bearing Assembly, Driveshaft Bearings, Center Bearing |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Bolt Hole Diameter | 0.560 in. |
| Series | 1710 |
| VMRS Code | 24002008 |
| Material | Steel/Rubber |
| Bearing Inside Diameter | 1.968 in. |
| Bracket Width | 2.250 in. |
| Distance Between Bolt Holes | 7.620 in. |
| Height | 2.780 in. |
| Style Code | 20 |
| Net Weight | 5.38 lb. |
| Cross References | 2104-2108811X, 21042108811X, 210881-1X, 2108811X, 7503100121X, CB310012 1XSA, EM69070, JCB-6907, JCB6907 |
| Intended Application | - Designed for use on various trucks and buses, especially those with 1710 series driveshafts. The bearing has an inside diameter of 1.968 inches.
|
| BOM | - 1 Drive Shaft Center Support Bearing
- 2 Drive Shaft Flinger
|
