| Product Line | Suspension |
| Category Name | Chassis & Suspension |
| Part Type | Rotating Bar PIN Bushing Kit |
| Alternate Part Name | Bar Pin Bush, Bar Pin Bushing Kit Shim Type, End Bushing Kit Shim Type, Bar Pin Bushing Kit |
| OEM Part Number | 34013-088L |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Bolt Hole Diameter | 1 in. |
| Mounting Position | Rear Suspension |
| Mounting Type | Straddle |
| Outside Diameter (O.D.) | 4-3/8 in. |
| Material | Vulcanized Rubber, Carbon Steel. |
| Distance Between Bolt Holes | 8-1/2 in. |
| Package Length | 6.00 in. |
| Package Width | 13.00 in. |
| Package Height | 7.00 in. |
| Net Weight | 20.82 lb. |
| Cross References | 20859, 334831, 34013088, 750332, BP200, BP200HE, R309326 |
| Intended Application | - Compatible with Ridewell Rear RD202B, RD202C and RD202S (Load Cushion) suspensions.
- Compatible with Hendrickson RT/RTE 340/460 Walking Beam (Rear Suspension), RT/RTE 480/520 Walking Beam (Rear Suspension), Haulmaax 400/460 (Rear Suspension), HN 402/462/522 (Rear Suspension) and R 460/463, RS 400/403 (Rear Suspension); Compatible with Meritor Air Link MWA Series.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|

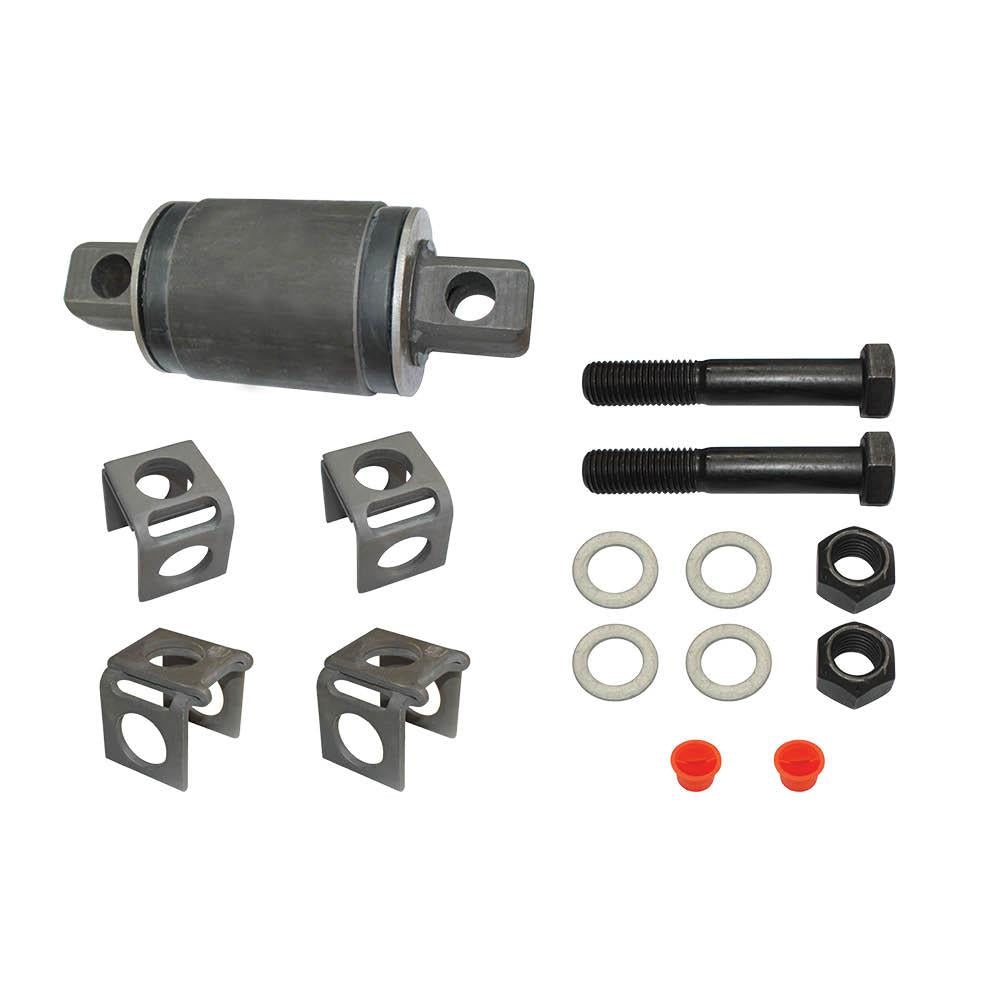

| BOM | "- Bar Pin End Bushing Rotating (Shim Type) pcs x 1
- Alignment Shim pcs x 4
- 1""-8 UNC x 6"" Hex Bolt pcs x 2
- 1 "" Hardened Washer pcs x 4
- I131""-8 UNC Locknut pcs x 2
" |
