| Product Line | Suspension |
| Category Name | Chassis & Suspension |

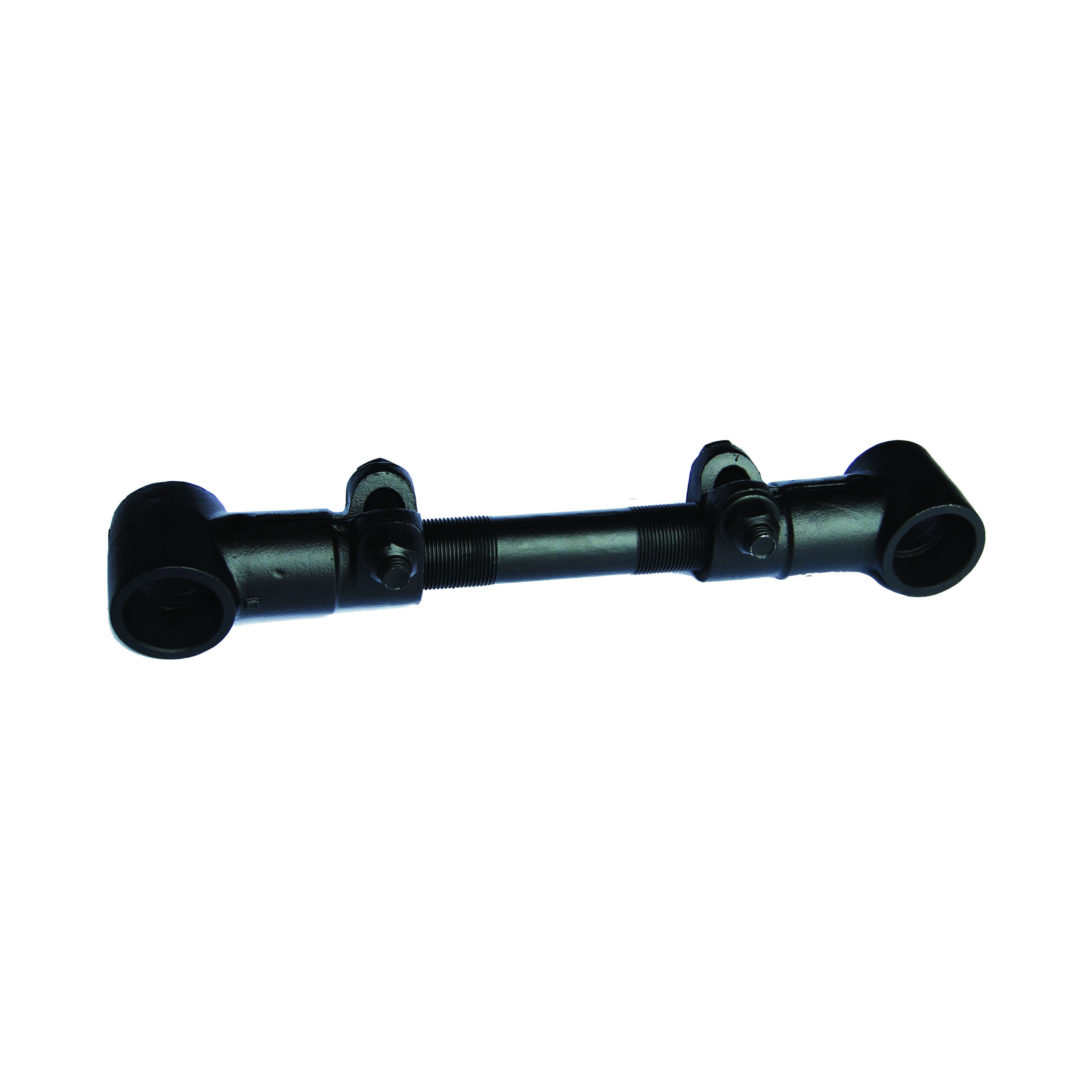

| Part Type | Adjustable Torque Rod |
| Alternate Part Name | Torque Rod, Torque Arm Adjustable, Adjustable Torque Arm without Bushings |
| OEM Part Number | 1517201 |
| Applicable Bushing | 10.099 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Bolt Hole Diameter | 1 in. |
| Mounting Position | Rear Suspension |
| Torque Rod Style | Adjustable |
| Material | Forged Steel |
| Bushing Type | Hollow (Bushings Not Included) |
| Center Bar Outside Diameter (O.D.) | 1-15-32 in. |
| Distance Between Bolt Holes | 15 in. to 17 in. |
| Net Weight | 11.94 lb. |
| Cross References | 15172-01, 1517201, 345-199, 345199, E-3283A, E3283A, IT3283A, R303283A, T5485, TR001 |
| Intended Application | - Compatible with Reyco Granning 21AR Air Suspension, Reyco Granning 21B Cast Four Spring Suspension, Reyco Granning 21B Fabricated Four Spring Suspension Models. Compatible with Watson & Chalin MS2500 Series Suspensions.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| BOM | - Torque Rod (1)
- Bolts: (2) Hex Head Cap Screws, 5/818 UNF x 3" Long (Grade 8).
- Lock Nut (2)
|
