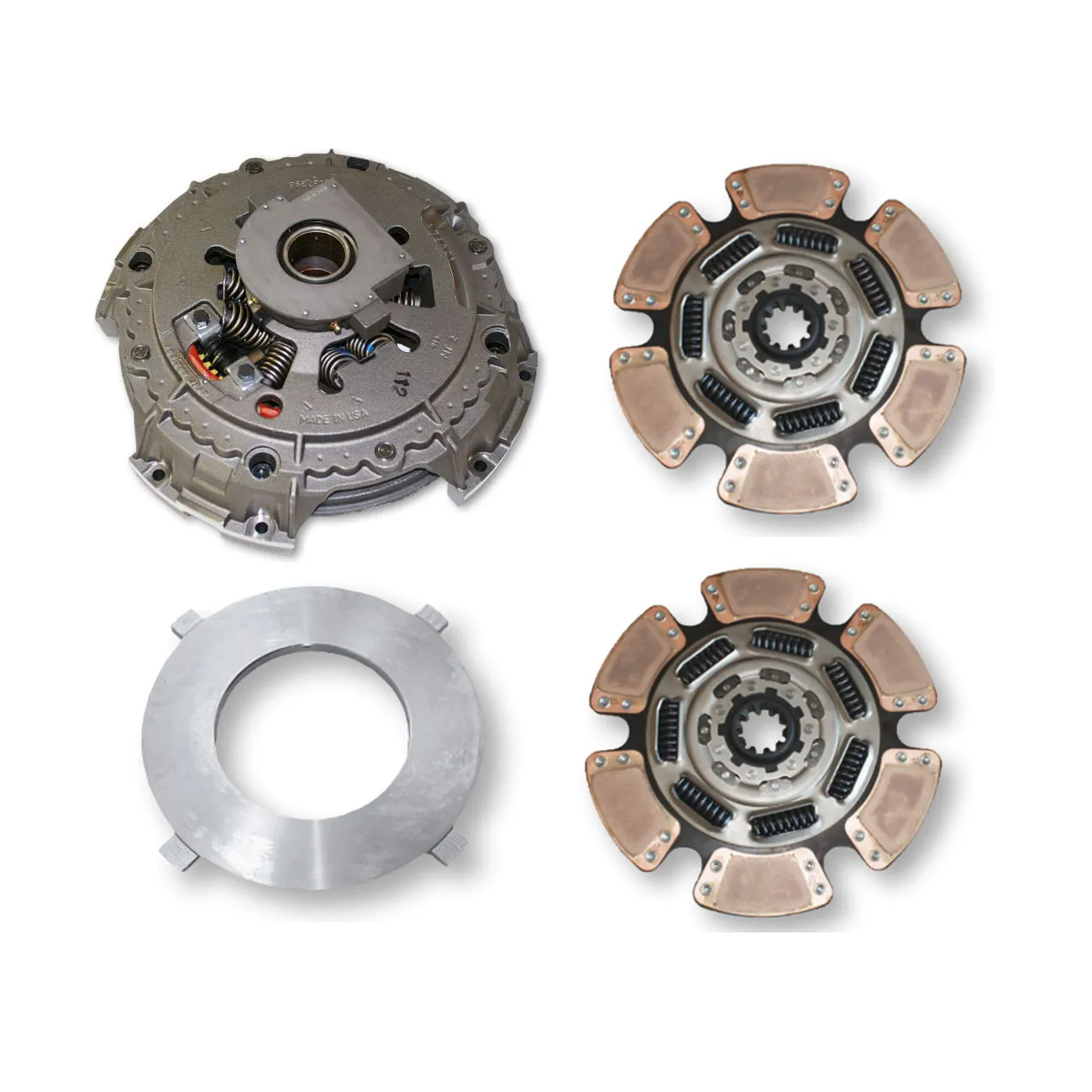

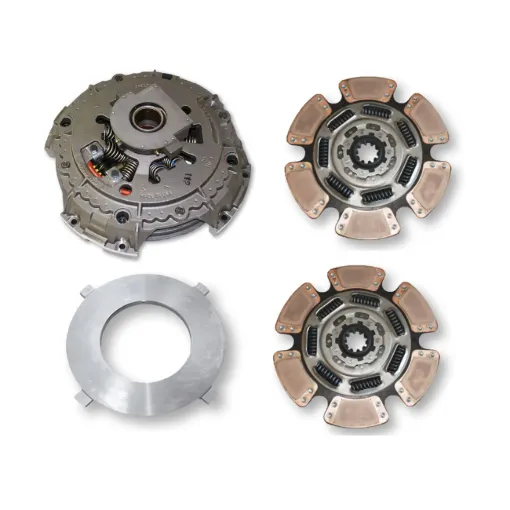

SELF ADJUST-CLUTCH,15.5X2 SA,7SPR 6PD 309701-25 F276015H

Name: SELF ADJUST-CLUTCH,15.5X2 SA,7SPR 6PD 309701-25 F276015H
Brand: ROAD CHOICE
SKU: 1000-CLU20992582H
Availability: OutOfStock

Manufacturer: ROAD CHOICE

SKU: 1000-CLU20992582H

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Transmission
Category Name	Clutch Components
Part Type	Clutch Assembly
Alternate Part Name	Clutch Assemblies, Heavy Duty Clutch Assembly
OEM Part Number	309701-25
Application/Fitment Attributes
Application Type	Heavy Duty Trucks
Clutch Diameter	15-1/2 in.
Flywheel Bore Diameter	10 in.
Spline Count	10
Spline Diameter	2 in.
Dimensional/Physical Attributes
Material	Steel, Ceramic Pad
Technical/Performance Attributes
Adjustment System	Self-Adjust
Disc Facing Material	Ceramic
Disc Paddle Type	6
Disc Spring Quantity	7
Pressure Plate Clamp Load	4.000 lb.
Torque Rating	2050 ft-lb
Transmission Type	Manual
Packaging & Logistics Attributes
Net Weight	145 lb.
Special Attributes
Cross References	209701-25, 20970125, 309701-25, 30970125, ABP N25 209701 25, CLU10992582H, CLU20992582H, MAF-209925-25, MAF20992525
Intended Application	Compatible with heavy-duty manual transmissions that utilize a 15-1/2 in. x 2 in. dual disc clutch for a 10-inch flywheel bore, 2 in. input shaft – 10 splines, 7 Spring configuration with 6 Pad ceramic discs and an approximate capacity of 2050 ft-lb, designed as a direct replacement for OEM Eaton-type configurations and aftermarket equivalents in Class 8 applications with a Self-Adjust system. Always compare with your OEM part number prior to purchase to confirm full compatibility.
