| Product Line | Suspension |
| Category Name | Chassis & Suspension |

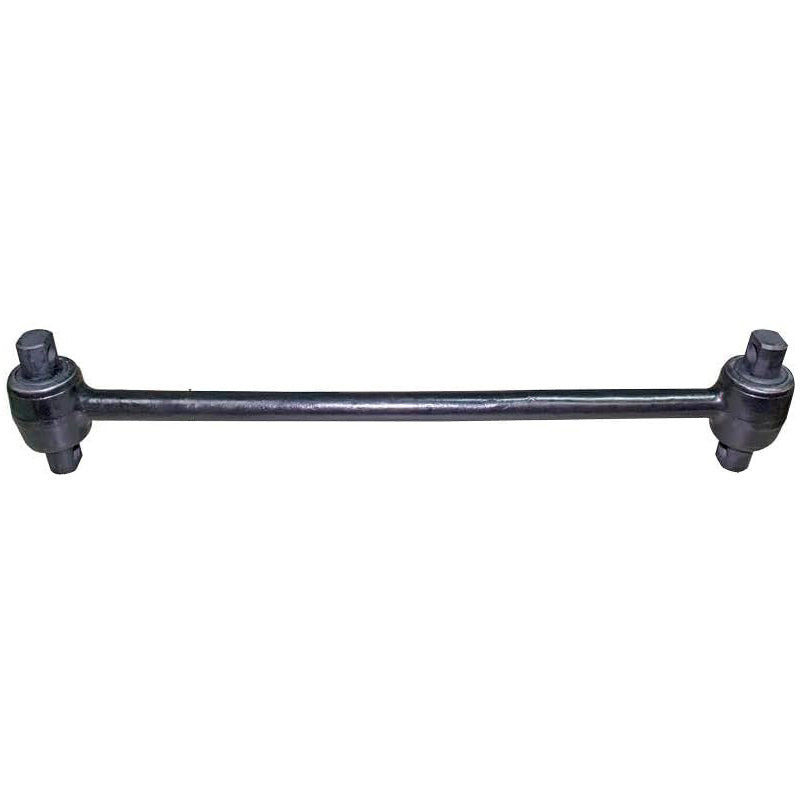

| Part Type | Rigid Torque Rod |
| Alternate Part Name | Torque Rod, Torque Rod Assy, Torque Arm Rigid, Torque Arm with Bushings |
| OEM Part Number | 1616749002 |
| Applicable Bushing | F317261 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Bolt Hole Diameter | 5/8 in. |
| Mounting Position | Front Axle Suspension |
| Torque Rod Style | Rigid |
| Material | Forged Steel |
| Bushing Orientation Angle – End 1 | 90 deg. |
| Bushing Orientation Angle – End 2 | 35 deg. |
| Bushing Type | Straddle/Bar Pin |
| Center Bar Outside Diameter (O.D.) | 1-3/32 in. |
| Distance Between Bolt Holes | 24-1/2 in. |
| Net Weight | 13.51 lb. |
| Cross References | 16-16749-002, 1616749002, 345-868, 345868, 6813267216, 741451, A16-16749-002, A1616749002, E-15542, E15542, GAFF11081, TMR535 |
| Intended Application | - Compatible With Freightliner Rear FAS AirLiner I & II Suspension Systems.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| BOM | - Torque Rod pcs x 1
- Torque Rod Bush pcs x 2
|
