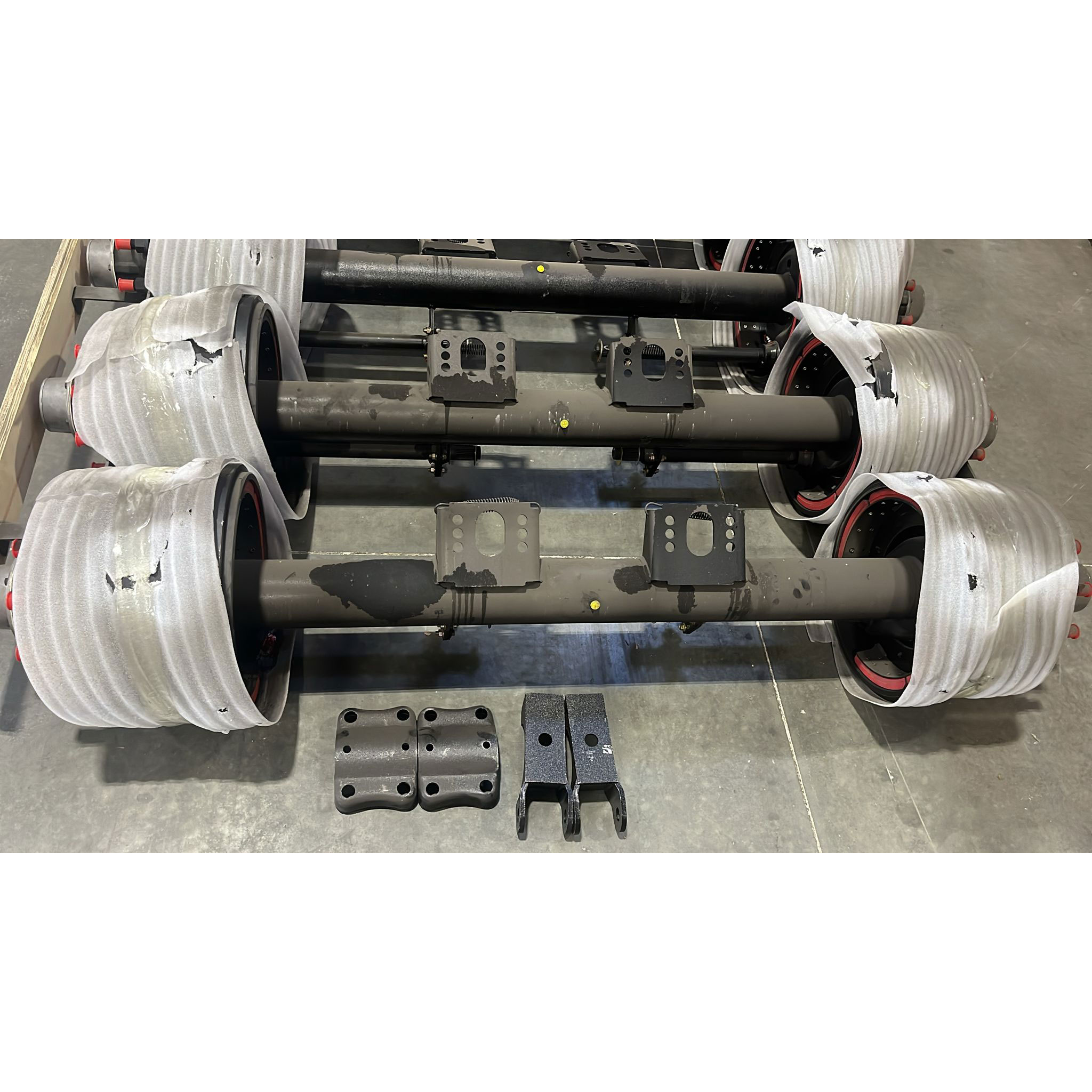

Axles fully assembled with brackets & ABS

Name: Axles fully assembled with brackets & ABS
SKU: HJD10Y33NH12
Availability: OutOfStock

Be the first to review this product

SKU: HJD10Y33NH12

Price:

Qty:

i h h

Specifications
Reviews
Contact Us

Products specifications

Basic Part Information
Product Line	Suspension
Category Name	Trailer Axles
Part Type	Axle Assembly with ABS
Alternate Part Name	Assembled Trailer Axle with Brackets and ABS
Application/Fitment Attributes
ABS Compatibility	2S/2M
Application Type	Heavy Duty Trailers, Semi-Trailers
Brake Drum Bolt Pattern	10 Bolt
Brake Drum Bolt Size	M22 × 1.5
Brake Type	Drum Brake
Slack Adjuster Type	Automatic
Dimensional/Physical Attributes
Axle Surface Coating Type	Anti-corrosion paint
Bearing Material	High-carbon steel, ground-finish
Brake Drum Hub Pilot Diameter (PCD)	285.75 mm
Brake Drum Material	Cast Iron – Machined Surface
Inner Bearing	HM218248/10, HM218248/10
Material Axle Tube	Alloy Steel – Heat Treated
Outer Bearing	HM212049/11
Track Width	71.5 in.
Technical/Performance Attributes
Axle Nominal Capacity	10000 kg
Bearing Type	Tapered Roller Bearings
Brake Shoe Lining	High-friction non-asbestos material
Camshaft Length	570 mm
Camshaft Teeth	28
Oil Seal Qty	2 Pcs
Packaging & Logistics Attributes
Net Weight	400 kg
Special Attributes
Cross References	HJD10Y33NH12, HJD10Y33NH12-1816T3-S-000T, HJD10Y33NH121816T3S000T
Intended Application	Suspension and Braking System for Heavy-Duty Trailers
BOM	Axle Barrel Assembly: Axle Tube / Beam Brake Chamber Mount (2 pcs) Camshaft Mount (2 pcs) Brake Plate (2 pcs) ABS Bracket & Wire Rivet Brake Drum Hub Assembly: Hub & Drum Set Wheel Studs M22 × 1.5 (20 pcs) Positioning Bush (4 pcs) Camshaft Assembly Camshaft (L/R) Camshaft Bracket & Sleeve Retaining Rings Bolts Washers Brake Shoe Assembly: Brake Shoe 180 mm (4 pcs) Brake Pad 180 mm (8 pcs total) Roller & Hanger (4 pcs each) Seal & Locking Assembly: Hub Cap & Nut Assembly Filter Cotton / Plug Cover ABS Assembly: Tone Ring (2 pcs) Sensor (2 pcs), Wire (2 pcs) Included Accessories: Upper & Lower Mounting Plates (2 pcs each)
