| Product Line | Steering Components |
| Category Name | Tie Rods & Ends |

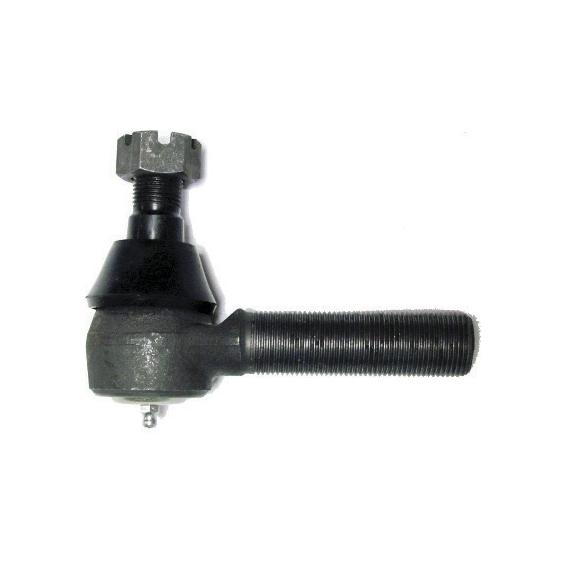

| Part Type | Tie Rod End |
| Alternate Part Name | Right Hand Tie Rod End, Tie Rod End Socket, Steering Tie Rob End |
| OEM Part Number | R230142 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Mounting Location | Front Axle |
| Material | Forged Steel |
| Rod End Thread Size | 1.125 in.- 12 |
| Rod Thread Direction | Right Hand |
| Stud Center to Rod End Length | 5.44 in. |
| Stud Thread Diameter | 0.875 in. - 14 |
| Taper Diameter - Large | 1.181 in. |
| Taper Diameter - Small | 1.038 in. |
| Taper Length | 1.14 in. |
| Tie Rod Design Type | Straight |
| Net Weight | 4.08 lb. |
| Cross References | 12548108, 310468, E10109, ES3275R, L24SV8003B12, L24SV8003B13, L24SV8003G12, R230142, E-10109 |
| Intended Application | - Compatible with Front Axle GM B/C Series Conventional Chassis (models Kodiak and Topkick, 1990-2000)
- Compatible with GM P60 (1992-1996)
- Compatible with GM T5500 / T6500 / T7500 / T8500 (1997)
- Compatible with Chevrolet Kodiak, GMC B7 (1993-1999)
|
