| Product Line | Suspension |
| Category Name | Chassis & Suspension |
| Part Type | Rigid Torque Rod |
| Alternate Part Name | Torque Rod, Torque Rod Assy, Torque Arm Rigid, Torque Arm with Bushings |
| OEM Part Number | 493920C2 |
| Applicable Bushing | F174003 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |

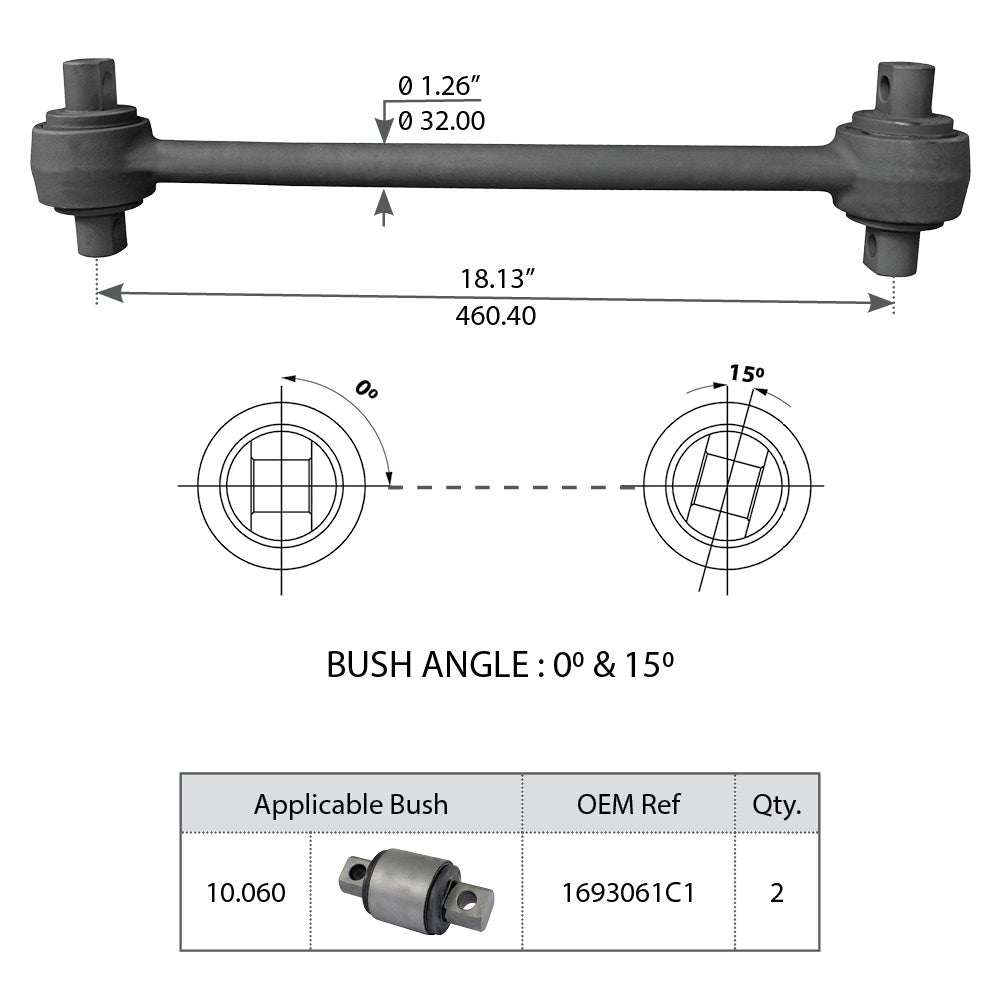

| Bolt Hole Diameter | 5/8 in. |
| Mounting Position | Rear Suspension |
| Torque Rod Style | Rigid |
| Material | Forged Steel |
| Bushing Orientation Angle – End 1 | 0 deg. |
| Bushing Orientation Angle – End 2 | 15 deg. |
| Bushing Type | Straddle/Bar Pin |
| Center Bar Outside Diameter (O.D.) | 1-1/4 in. |
| Distance Between Bolt Holes | 18-1/8 in. |
| Net Weight | 18.78 lb. |
| Cross References | 301304, 345854, 383788, 4851, 493920C1, 493920C2, 57750342, 57750371, 588117C91, 588117C92, E-3788, E3788, R303788, TMR510 |
| Intended Application | - Compatible with International Navistar Rear Axle Suspension – Single and Tandem Axle, Corporate Air "Z" Beam Configuration; International Navistar Rear Axle Suspension – Corporate 4 in. Spring, 8100 / 9200 Series, Single Axle Trucks.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| BOM | - Torque Rod pcs x 1
- Torque Rod Bush pcs x 2
|
