| Product Line | Suspension |
| Category Name | Chassis & Suspension |

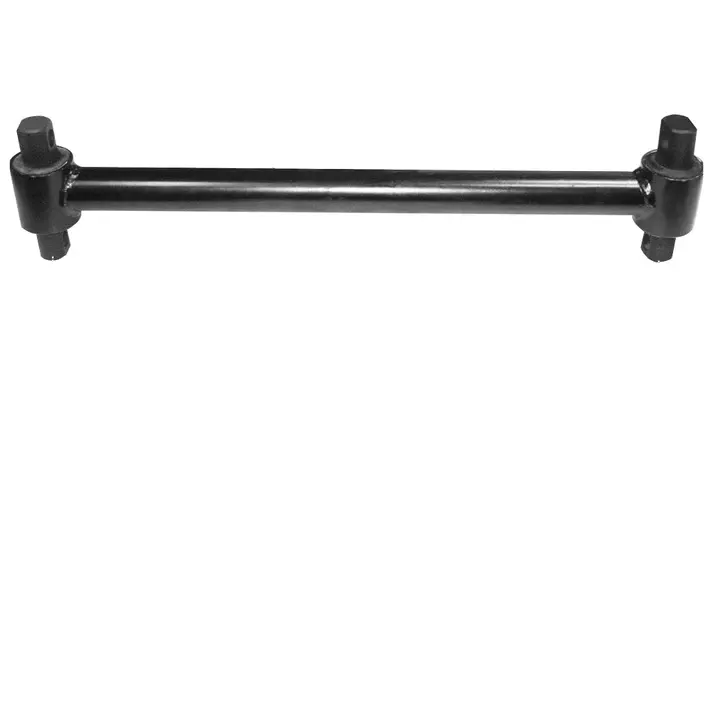

| Part Type | Rigid Torque Rod |
| Alternate Part Name | Torque Rod, Torque Rod Assy, Torque Arm Rigid, Torque Arm with Bushings |
| OEM Part Number | 493921C1 |
| Applicable Bushing | F174003 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Bolt Hole Diameter | 5/8 in. |
| Mounting Position | Rear Suspension |
| Torque Rod Style | Rigid |
| Material | Forged Steel |
| Bushing Orientation Angle – End 1 | 0 deg. |
| Bushing Orientation Angle – End 2 | 15 deg. |
| Bushing Type | Straddle/Bar Pin |
| Center Bar Outside Diameter (O.D.) | 1-1/4 in. |
| Distance Between Bolt Holes | 21-31/32 in. |
| Net Weight | 20.69 lb. |
| Cross References | 301305, 345855, 383789, 4852, 493921C1, 57750341, 57750372, 588118C91, 588118C92, 588188C91, E-3789, E3789, R303789, TMR512 |
| Intended Application | - Compatible with International Navistar trucks equipped with Corporate Four-Spring Tandem Rear Suspension, designed for single-axle configurations in the 8100 and 9200 Series.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| BOM | - Torque Rod pcs x 1
- Torque Rod Bush pcs x 2
|
