| Product Line | Suspension |
| Category Name | Chassis & Suspension |

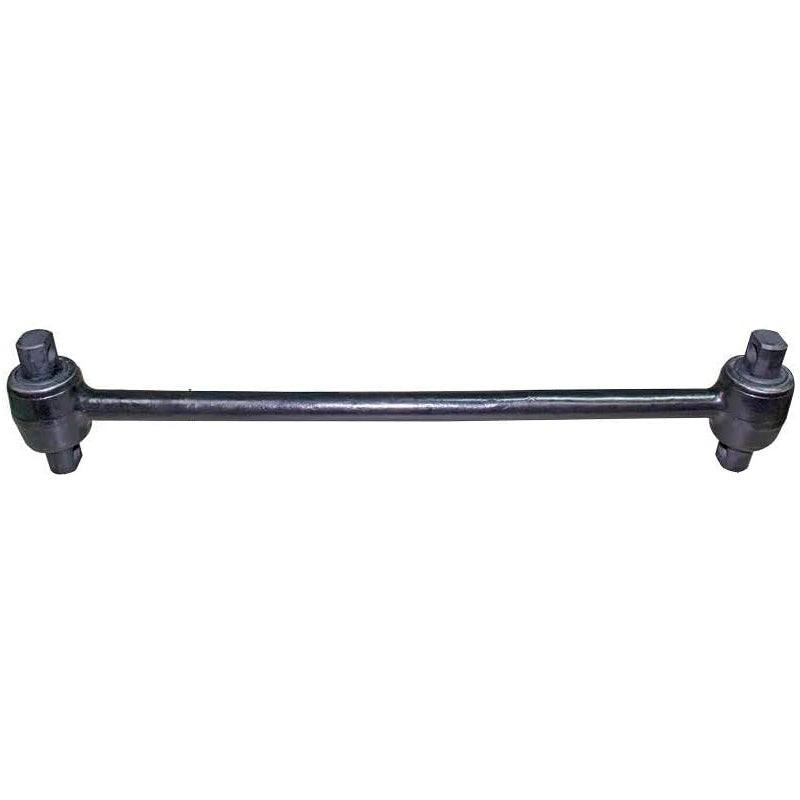

| Part Type | Rigid Torque Rod |
| Alternate Part Name | Torque Rod, Torque Rod Assy, Torque Arm Rigid, Torque Arm with Bushings |
| OEM Part Number | 3548381C1 |
| Applicable Bushing | F317261 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Bolt Hole Diameter | 5/8 in. |
| Mounting Position | Rear Suspension |
| Torque Rod Style | Rigid |
| Material | Forged Steel |
| Bushing Orientation Angle – End 1 | 90 deg. |
| Bushing Orientation Angle – End 2 | 90 deg. |
| Bushing Type | Straddle/Bar Pin |
| Center Bar Outside Diameter (O.D.) | 1-1/8 in. |
| Distance Between Bolt Holes | 25-1/2 in. |
| Net Weight | 13.49 lb. |
| Cross References | 345-904, 345904, 3548381C1, 3580088C1, 3580088C2, 4C4Z4612AA, 501565C2, 60218-000, 60218000, TMR533 |
| Intended Application | - Compatible with International Navistar Rear Suspension – New Corporate Air IROS, 3.5 in. Air Spring, "Z" Beam Configuration, Series Trucks; Compatible with Hendrickson Air Suspension – Single and Tandem Axle, HAS 120, 150, 190, 210, 230, 360, 400, 402, 40LH, 460; Hendrickson RT / RTE Series Air Suspension – Models 380, 400, 440, 460;
- Hendrickson RT2 / RTE2 Series Air Suspension – Models 400, 460, Series Trucks.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| BOM | - Torque Rod pcs x 1
- Torque Rod Bush pcs x 2
|
