| Product Line | Brakes |
| Category Name | Brakes |

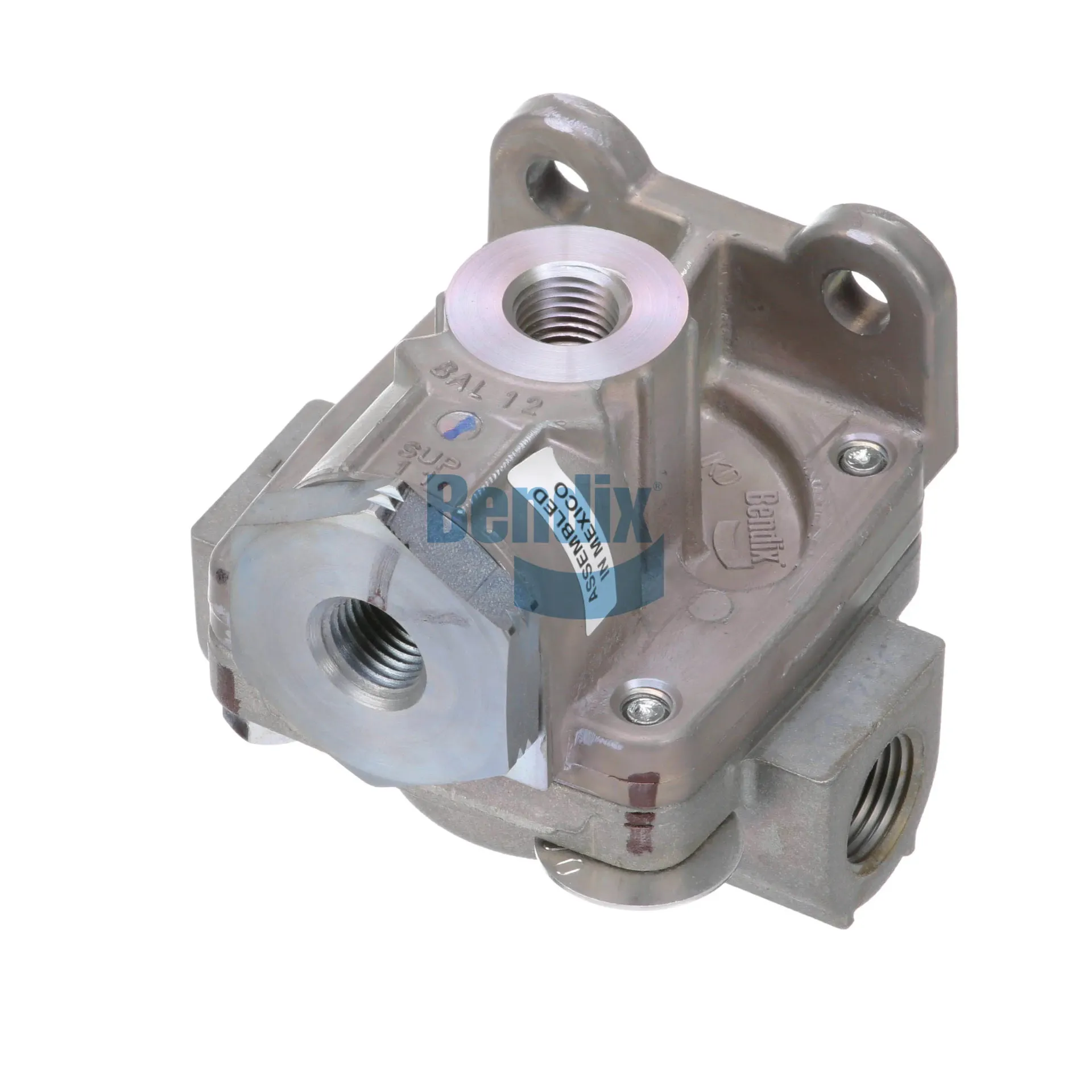

| Part Type | Quick Release Valve |
| Alternate Part Name | Air Brake Quick Release Valve, Quick Release Valve |
| Model | QR-1C |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Balance Port Size | 1/4-18 NPT (Female) |
| Delivery Port 1 Size | 3/8-18 NPT (Female) |
| Delivery Port 2 Size | 3/8-18 NPT (Female) |
| Exhaust Port | Open |
| Mounting Hole Qty | 2 |
| Mounting Holes Size | 0.34 in. |
| Supply Port Size | 1/4-18 NPT (Female) |
| TMC Washer | QR000 |
| Material | Die-cast Aluminum |
| Differential Pressure | 0 psi |
| Maximum Operating Temperature | 200 Deg. F (93 Deg. C) |
| Minimum Operating Temperature | -50 deg. F (-45 deg. C) |
| Sustained Hold | No |
| Zero Hysteresis | Yes |
| Net Weight | 1.09 lb. |
| Cross References | 289714N, 170289714, 289714, 289714N, 289714RX, 289714X, 289915X, AV289714, BH289714, EBN289714N, EM36260, LDV3626, OR289714, OR289714X, R955289714N |
| Intended Application | - Compatible with heavy-duty air brake systems requiring a QR-1C style quick release valve. Ideal for trucks, tractors, buses and commercial vehicles equipped with pneumatic service brake systems. Installs in service brake circuits to exhaust application air directly at the valve, reducing brake release time, minimizing drag and improving brake response. For systems matching the original Bendix 289714N specifications.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| Foam Insert Included | No |
