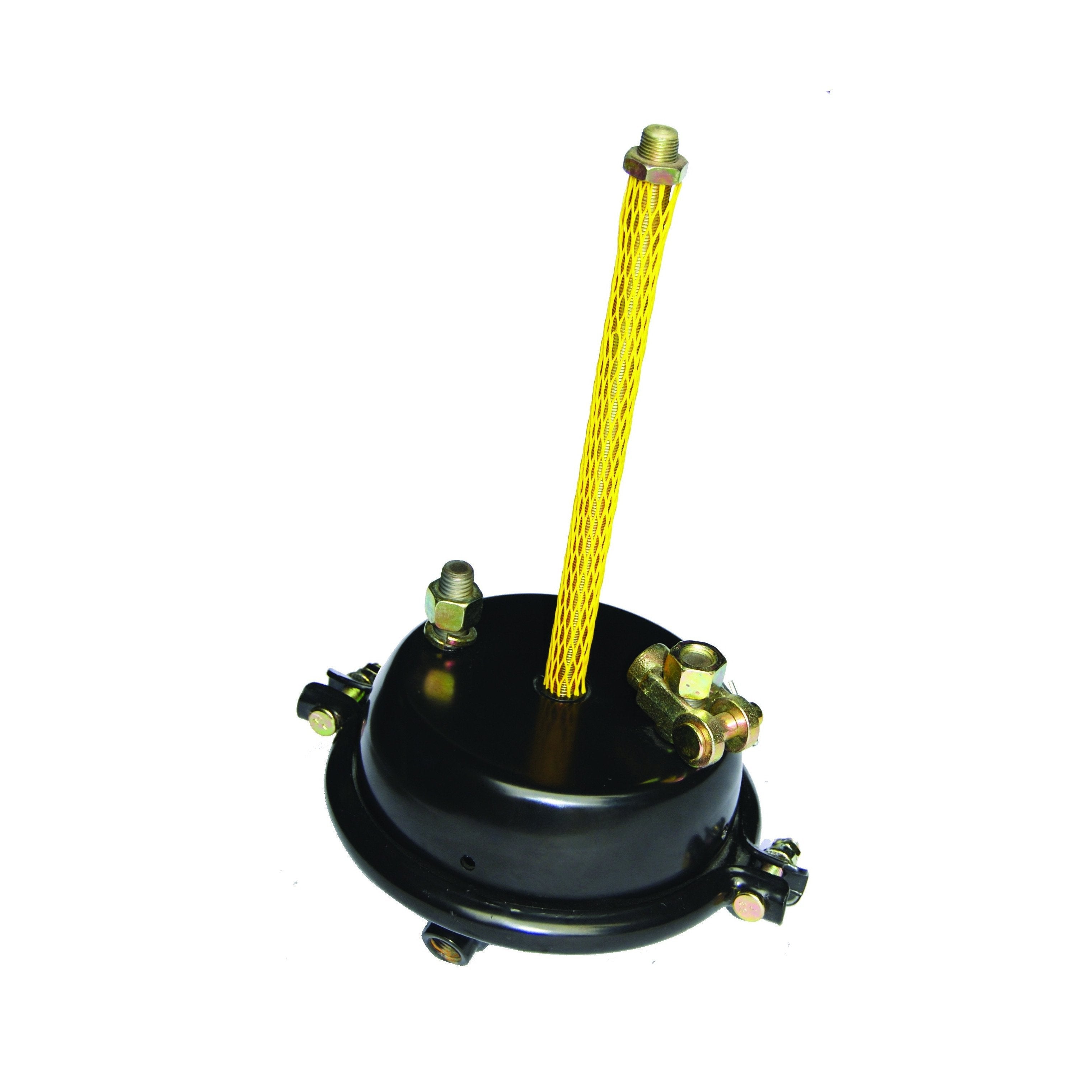

| Part Type | Air Brake Chamber |
| Alternate Part Name | Brake Canister / Brake Can / Air Brake Canister |
| Model | T12, T-12, 12 |
| OEM Part Number | 288795 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Brake System Compatibility | S-Cam |
| Brake Type | Drum |
| Chamber Style | Single Diaphragm |
| Chamber Type | Service Brake Chamber |
| Clevis Mounting Type | Threaded |
| Mounting Bolt Length | 1.50 in. (38.1 MM) |
| Mounting Bolt Thread Size | 7/16-20 UNF-2A |
| Outside Diameter (O.D.) | 4 in. |
| Push Rod Length | 10.50 in. |
| Push Rod Thread Size | 1/2-20 UNF-2A |
| Service Chamber Joint Type | Single Clamp Band |
| Service Port Thread Size | 3/8-18 NPTF |
| Clevis Yoke | Included |
| Maximum Operating Pressure | 150 PSI |
| Port Orientation | 90° |
| Serviceability | Serviceable |
| Stroke Lenght | 1.75 in. |
| Stroke Type | Standard Stroke |
| Cross References | 288795, 288795N, 745-288795, 745288795, HSC-0214-100, HSC0214100 |
