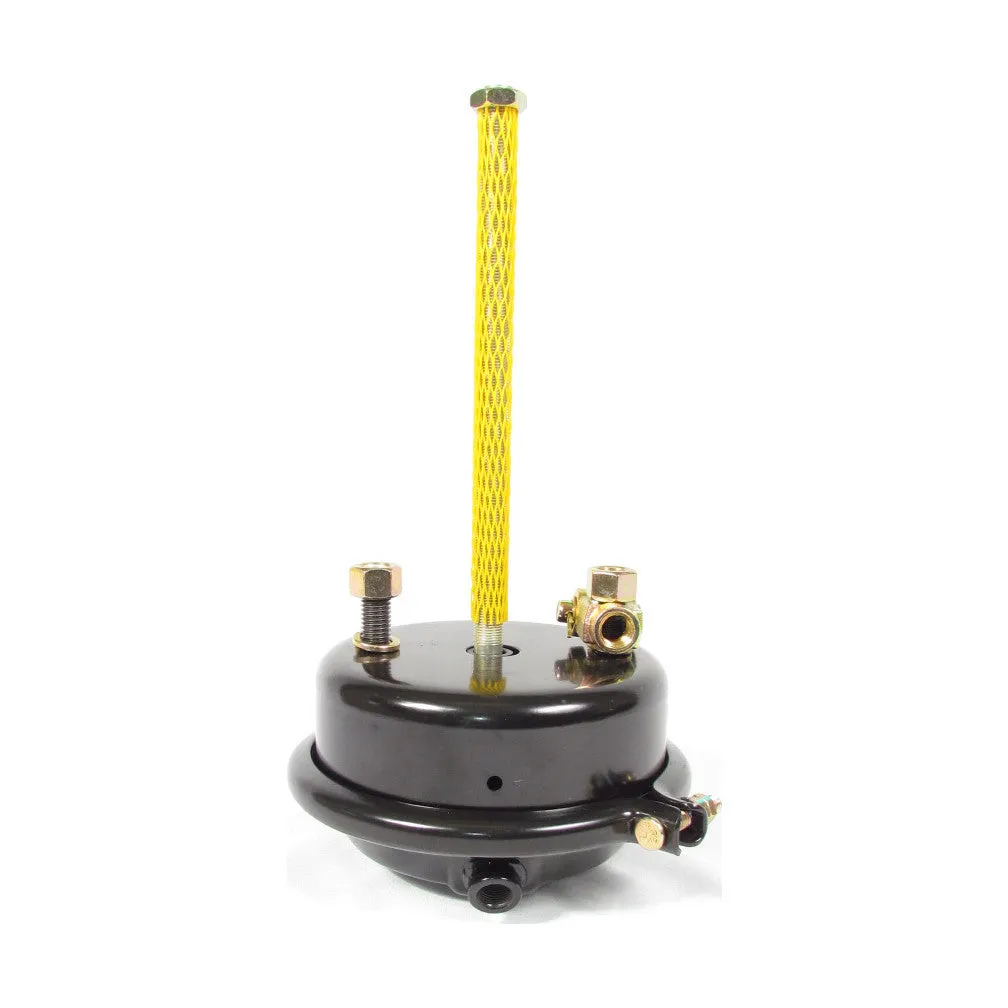

BRAKE CHAMBER TYPE 30 F288813

Name: BRAKE CHAMBER TYPE 30 F288813
Brand: FORTPRO
SKU: F224728
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F224728

Price:

Qty:

i h h

Products specifications

Basic Part Information
Part Type	Air Brake Chamber
Alternate Part Name	Brake Canister / Brake Can / Air Brake Canister
Model	Type 30, T30, T-30, 30
OEM Part Number	288813
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
Brake System Compatibility	S-Cam
Brake Type	Drum
Chamber Style	Single Diaphragm
Chamber Type	Service Brake Chamber
Clevis Mounting Type	Threaded
Mounting Bolt Length	1.55 in.
Mounting Bolt Thread Size	5/8-11 UNF-2A
Outside Diameter (O.D.)	8 3/16"
Push Rod Length	10 in.
Push Rod Thread Size	5/8-18 UNF-2A
Service Chamber Joint Type	Single Clamp Band
Service Port Thread Size	3/8-18 NPTF
Technical/Performance Attributes
Clevis Yoke	Included
Maximum Operating Pressure	150 PSI
Port Orientation	90°
Serviceability	Serviceable
Stroke Lenght	2.50 in.
Stroke Type	Standard Stroke
Special Attributes
Cross References	179.SC30, 179SC30, 288813, 288813N, 30021, E-30S, E-BC30S, E30S, EBC30S, HSC-0230-100, HSC0230100, M459, R870030, SC30, SC30S
