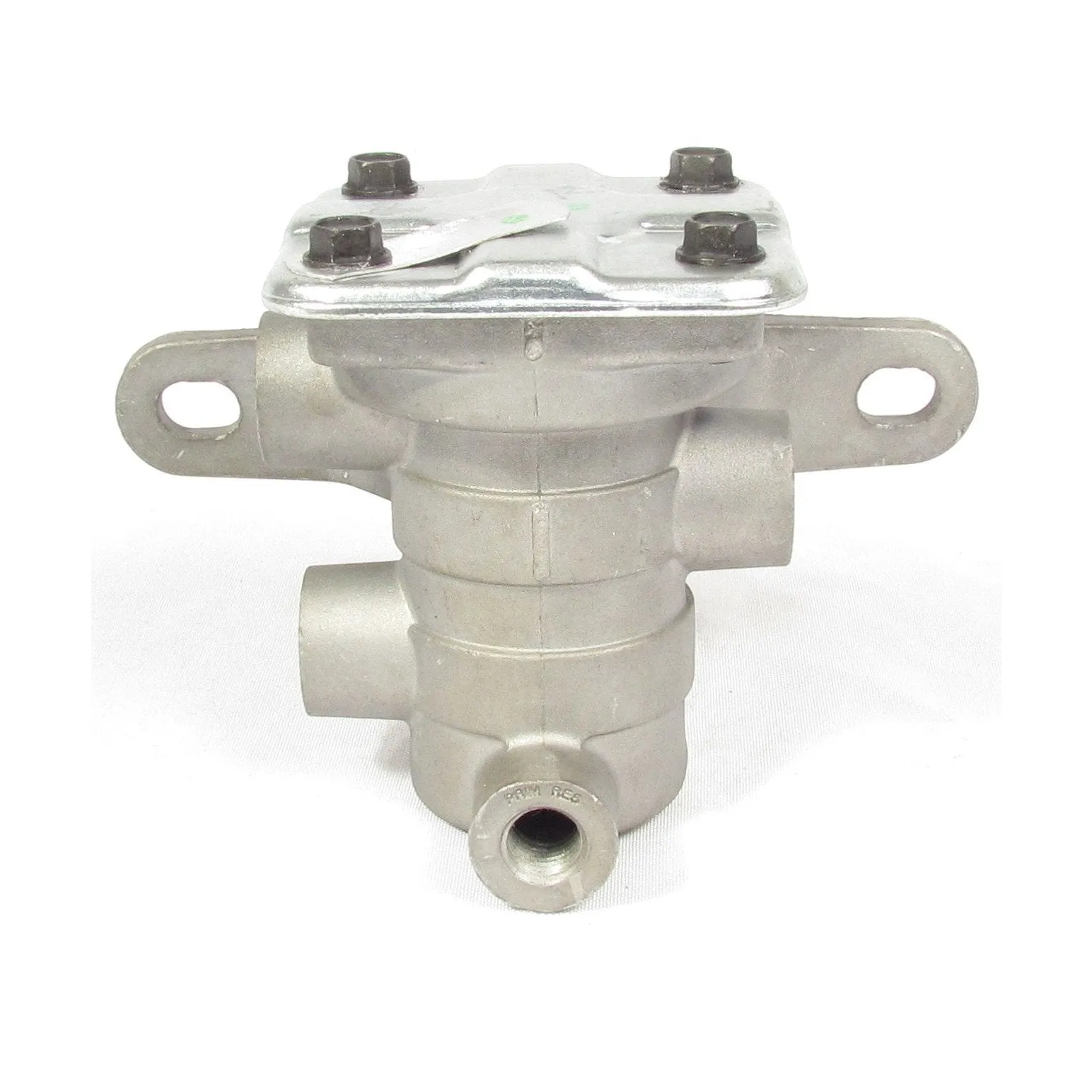

DVP - FKN28030 INVERSION VALVE

Name: DVP - FKN28030 INVERSION VALVE
Brand: FORTPRO
SKU: F224686
Availability: BackOrder

Fabricante: FORTPRO

Sku: F224686

Precio:

Cant.:

i h h

Especificaciones de productos

Basic Part Information
Product Line	Brakes
Category Name	Air Brake Valves
Part Type	Inversion Valve
Alternate Part Name	Brake Inversion Valve, Air Inversion Control Valve, Inversion Control Valve, Air Brake Inversion Valve
OEM Part Number	KN28030
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
Control Port Size	1/4-18 NPT
Delivery Port Size	1/4-18 NPT
Mounting Type	14.73mm × 10.34mm oval holes, 0.41mm thick
Reservoir Port Size	1/4-18 NPT
Supply Port Size	1/4-18 NPT
Dimensional/Physical Attributes
Material	Die-cast Zinc
Technical/Performance Attributes
Maximum Operating Temperature	200 deg. F (93 deg. C)
Minimum Operating Temperature	-40 deg. F (-40 deg. C)
Packaging & Logistics Attributes
Net Weight	1.80 lb.
Special Attributes
Cross References	20QE311AR, 20QE3142R, 286364, 286364N, 286365, 286634, 286834, 286893, 287278, 288063, 288063N, 288352, 288364, 288364N, 9718990010, 9718990040, 9718990050, KN28030, N20950AA, RKN28030, S9718990010, S9718990040, S9718990050, ZZKN28030X
Intended Application	Used with spring brake equipped truck or tractors. Complies with pre-March 1998 FMVSS-121 regulations. Detects primary reservoir air system failure, allowing modulated control of spring brakes.
