| Product Line | Brakes |
| Category Name | Slack Adjusters |

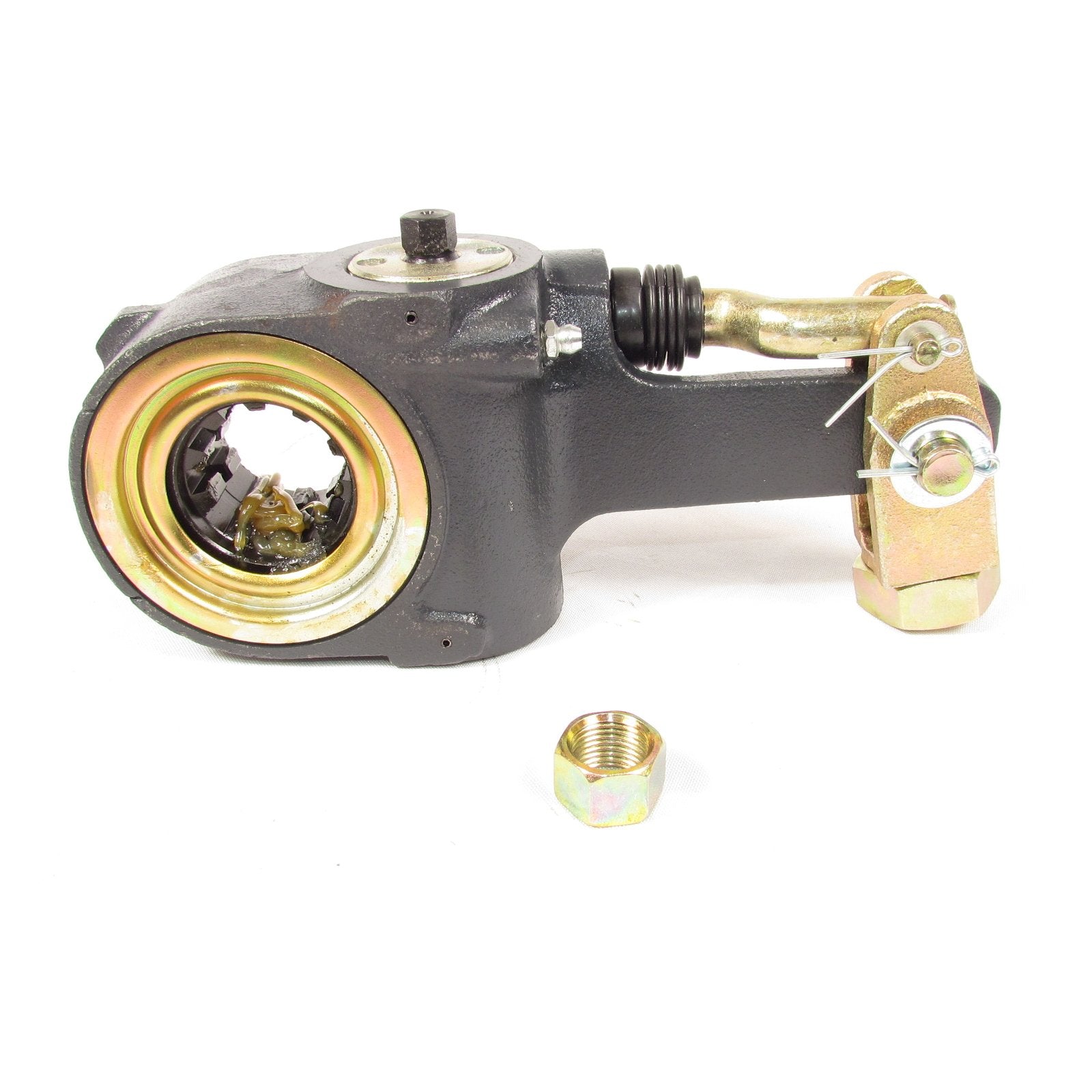

| Part Type | Automatic Slack Adjusters |
| Model | Gunite Style |
| OEM Part Number | AS1132 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Compatible Brake Chamber Sizes | T-30 Std or T-16/T-24 Long Stroke |
| Clevis Type | Straight |
| Material | Alloy Steel |
| Arm Length Position 1 | 5-1/2 in. |
| Arm Offset | No Offset |
| Body Inclination Angle | 0 deg. |
| Clevis Thread Diameter | 5/8-18 UNF-2B |
| Slack Spline Count | 10 |
| Slack Spline Diameter | 1-1/2 in. |
| Maximum Operating Temperature | 158 deg. F (70 deg. C) |
| Maximum Torque | 20.000 In./Lbs. |
| Minimum Operating Temperature | (-40 deg. F) (-40 deg. C) |
| Operation Type | Tension Adjuster - Torque |
| Cross References | 1381011, 25QD51P2, 400-10005, 40010005, 5361, AS1132, E11398, K041870, MK41100S, R801041 |
