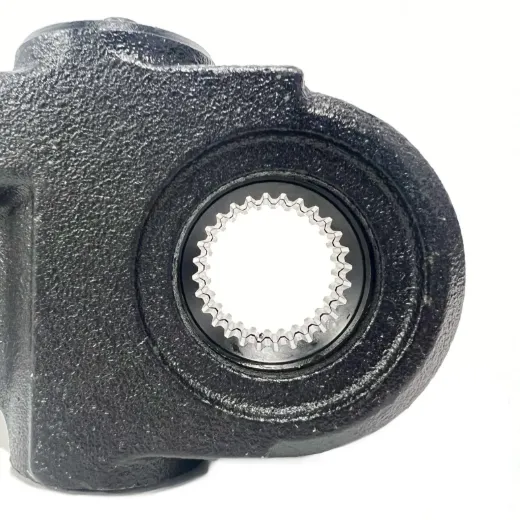

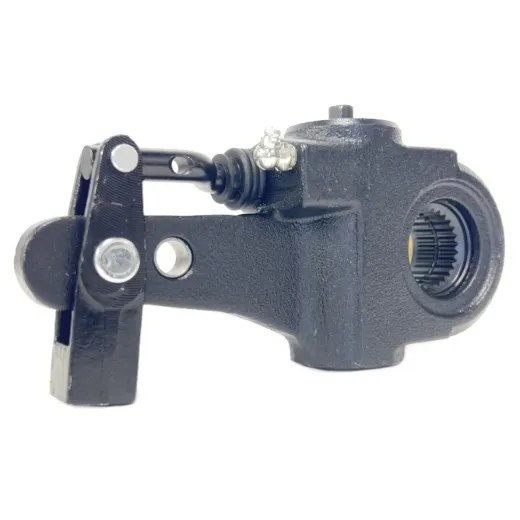

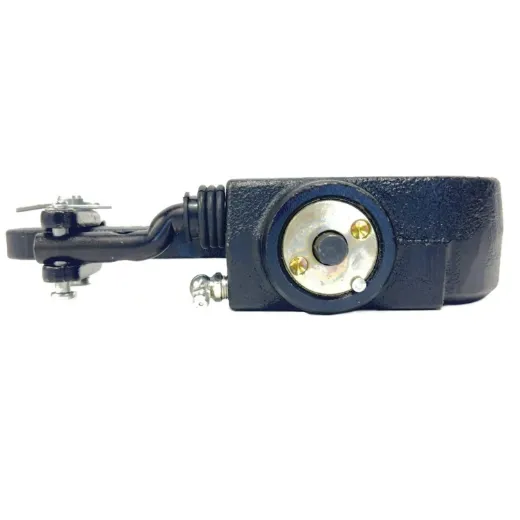

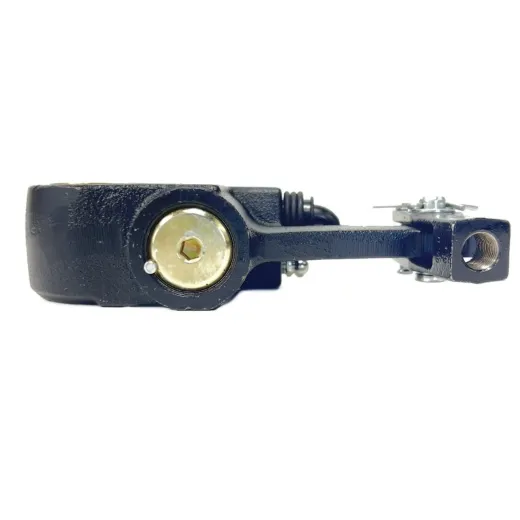

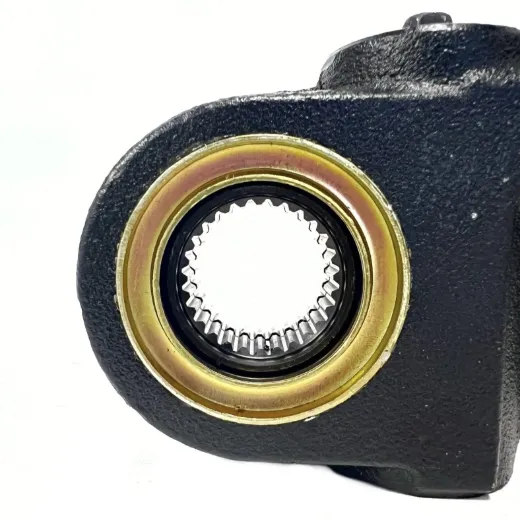

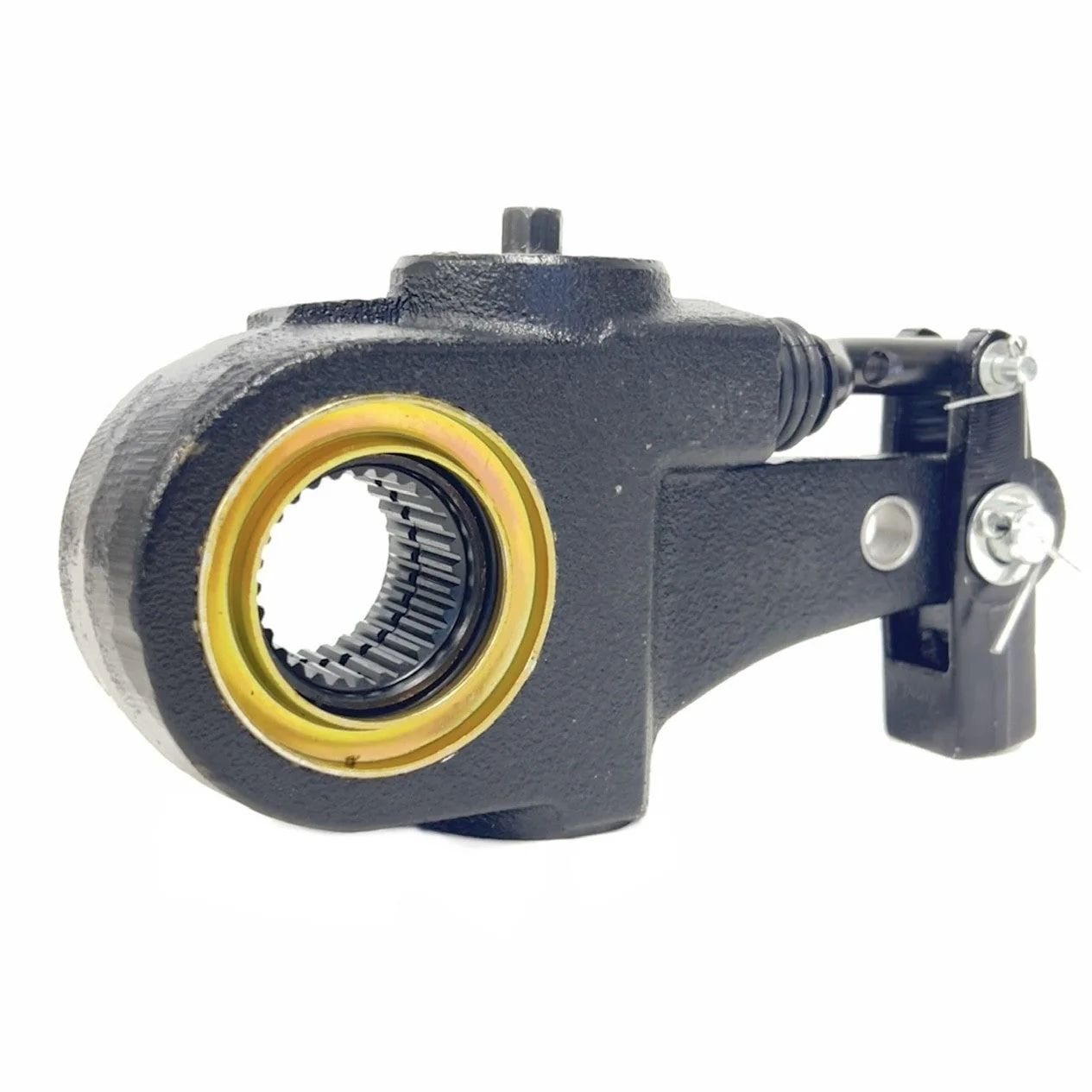

CB22103 CREWSON TYPE AUTO SLACK ADJUSTER 1-1/2IN - 28 TEETH 5"-6"

Manufacturer: FORTPRO
SKU: F225058
Price:
i h h
Products specifications
Basic Part Information
Product LineBrakes
Category NameSlack Adjusters
Part TypeAutomatic Slack Adjusters
ModelCrewson Style
OEM Part NumberCB22103
Application/Fitment Attributes
Application TypeHeavy Duty Trucks, Semi-Trucks
Compatible Brake Chamber SizesMultiple
Clevis TypeStraight
Dimensional/Physical Attributes
MaterialAlloy Steel
Arm Length Position 16 in.
Arm Length Position 25 in.
Arm OffsetNo Offset
Body Inclination Angle0 deg.
Clevis Thread Diameter5/8-18 UNF-2B
Slack Spline Count28
Slack Spline Diameter1-1/2 in.
Technical/Performance Attributes
Auto-Check Indicator IncludedNo
Maximum Operating Temperature158 deg. F (70 deg. C)
Maximum TorqueTorque <10 or>33 ft-lb
Minimum Operating Temperature(-40 deg. F) (-40 deg. C)
Operation TypeTension Adjuster - Torque
Special Attributes
Cross References11-355, 11-511, 11-515, 11-519, 11355, 11511, 11515, 11519, 1362830, 25QD419P4, 802670, CB22103, CI22103, CS52321, E-6993, E-6993A. E-6993, E-6993B, E6993, E6993A, E6993B, R806953, R806964
*
*
*
