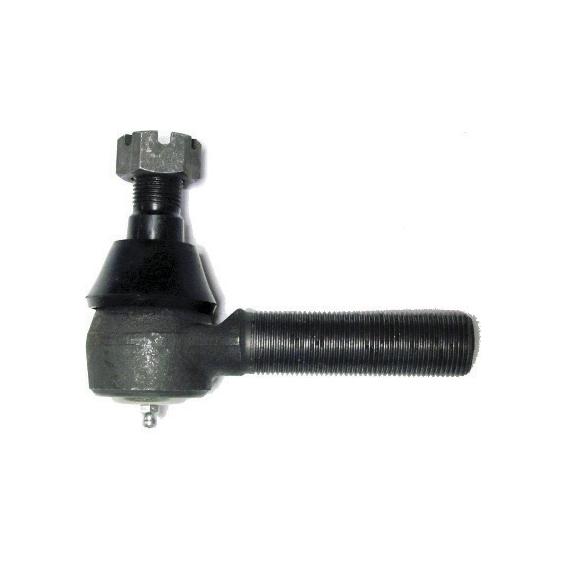

FES411L, F269-2235,1649637C91 TIE ROD

Name: FES411L, F269-2235,1649637C91 TIE ROD
Brand: FORTPRO
SKU: F265883
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F265883

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Steering Components
Category Name	Tie Rods & Ends
Part Type	Tie Rod End
Alternate Part Name	Left Hand Tie Rod End, Tie Rod End Socket, Steering Tie Rob End
OEM Part Number	1649637C91
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
Mounting Location	Front Axle
Dimensional/Physical Attributes
Material	Forged Steel
Rod End Thread Size	1.125 in.- 12
Rod Thread Direction	Left Hand
Stud Center to Rod End Length	9.188 in.
Stud Thread Diameter	0.875 in. - 14
Taper Diameter - Large	1.102 in.
Taper Diameter - Small	0.967 in.
Taper Length	1.08 in.
Technical/Performance Attributes
Tie Rod Design Type	Straight
Packaging & Logistics Attributes
Net Weight	4.68 lb.
Special Attributes
Cross References	1649637C91, 310215, 310215E, 377635C91, 447094C91, 507835C91, 8235-R230029, 8235R230029, ARE-9916, ARE9916, ES411L, FTR411L, L20LV8087A13, L24SV5551A11, R230028, SP692234
Intended Application	Compatible with Meritor FF and MFS front steer axles installed on Class 6–8 heavy-duty trucks as part of the steering linkage assembly
