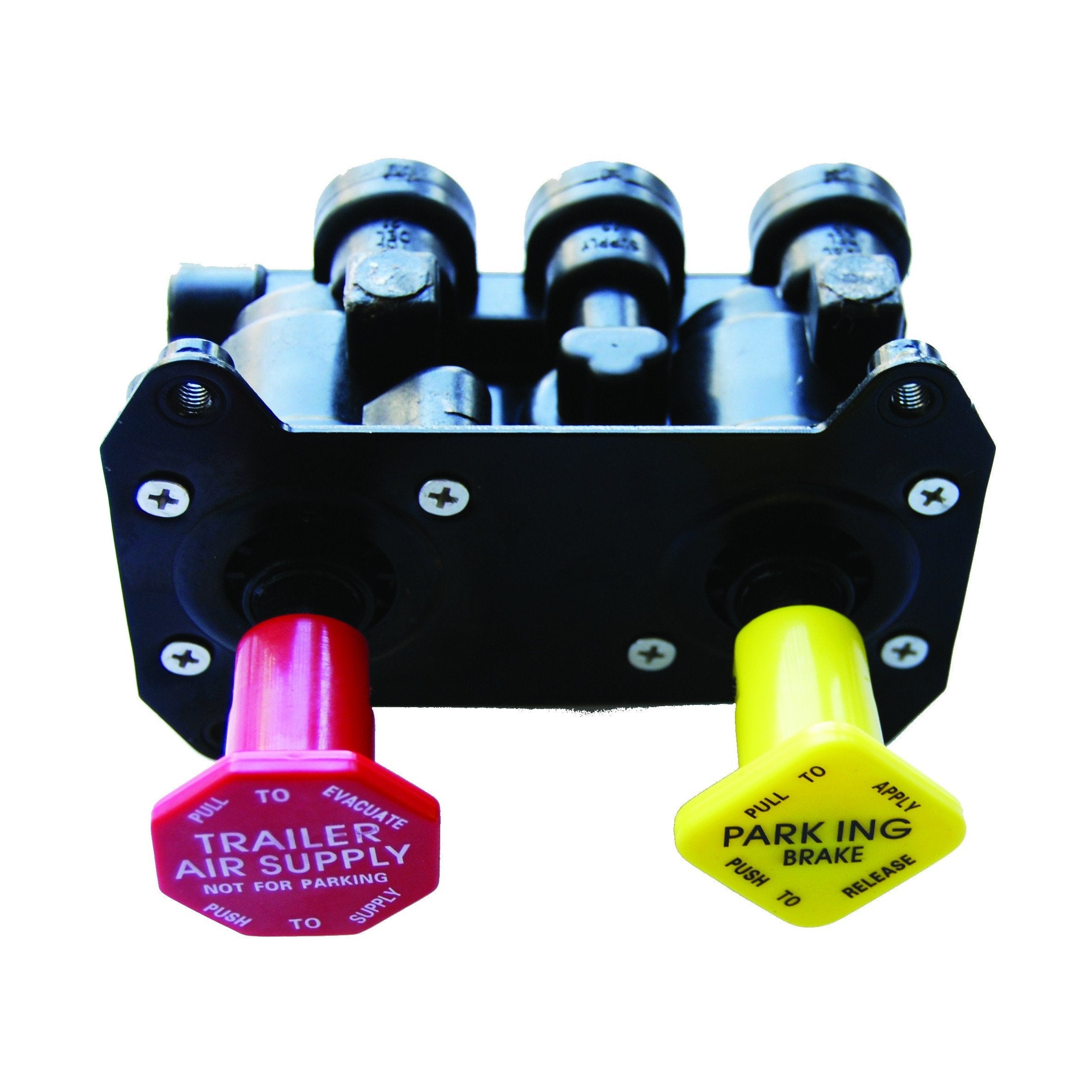

FKN20615 MV-2 CONTROL VALVE 6 PORTS

Manufacturer: FORTPRO

SKU: F224615

Price:

Qty:

i h h

Specifications
Contact Us

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Air Brake Valves
Part Type	Dash Valve
Alternate Part Name	Dash Control Module / Manifold Dash Valve
Model	MV-2
OEM Part Number	KN20615
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
Delivery Port 2.1 Size	1/4-18 NPT
Delivery Port 2.2 Size	1/4-18 NPT
Exhaust Port Size	1/4-18 NPT
Mounting Hole Qty	4
Mounting Hole Size	Ø .275 in.
Supply Port 1.1 Size	1/4-18 NPT
Supply Port 1.2 Size	1/4-18 NPT
Dimensional/Physical Attributes
Material	EGC-Engineering Grade Composite
Button(s) Included	Yes
Technical/Performance Attributes
Maximum Operating Temperature	200 deg. F (93 deg. C)
Minimum Operating Temperature	-40 deg. F (-40 deg. C)
Tractor Trip Pressure	20 - 35 psi
Trailer Override Pressure	25 ± 5 psi
Trailer Trip Pressure	20 - 45 psi
Packaging & Logistics Attributes
Net Weight	1.77 lb.
Special Attributes
Cross References	065160, 101437, 101437N, 103147, 106331, 106992, 107212, 131011, 131013, 1665095C91, 170800257, 170800257WF, 170BW800257, 170KN20615, 5000628, 5005053, 5005054, 800257, 9346490210, EM34580, EMDKN20615N, KN20615, KN20615N, LVM-3458, LVM3458, R955KN20615N, RKN20615, S-11529, S11529, S9346490210
Intended Application	Designed to efficiently manage the parking brake system on trucks and trailers with air brakes. Its main function is to control the air supply to the tractor and trailer parking brake system, allowing safer operation and reducing the number of pipes and valves required compared to traditional systems. Main functions: ? Tractor protection ? Trailer service brake control ? Parking system ? Trailer parking only ? Trailer recharging with spring brakes activated on the tractor ? Isolation of primary and secondary air tanks
