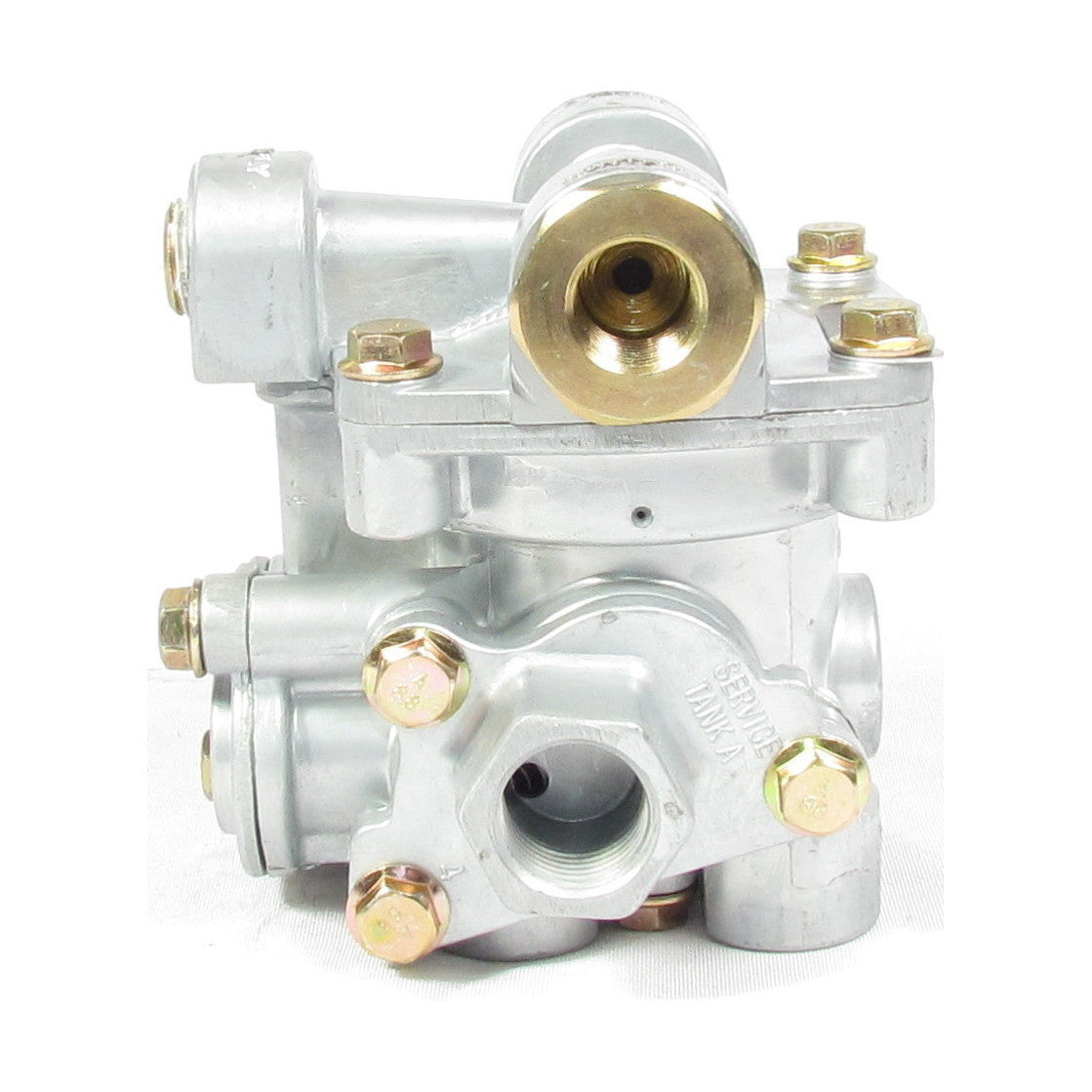

FKN26000 RT-4 MULTIFUNCTION VALVE

Name: FKN26000 RT-4 MULTIFUNCTION VALVE
Brand: FORTPRO
SKU: F224790
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F224790

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Air Brake Valves
Part Type	Trailer Valve
Alternate Part Name	Multi-Function Trailer Valve
Model	RT-4
OEM Part Number	KN26000
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
Control Port Size	3/8-18 NPT
Delivery Port Qty	4
Delivery Port Size	3/8-18 NPT
Reservoir Port Size	3/8-18 NPT, 1/2-14 NPT
Supply Port Size	3/8-18 NPT
Supply Port Qty	2
Dimensional/Physical Attributes
Material	Die-cast Aluminum
Technical/Performance Attributes
Closing Pressure	55 psi
Packaging & Logistics Attributes
Net Weight	4.64 lb.
Special Attributes
Cross References	170.KN26000, 170KN26000, 5396-KN26000, 5396KN26000, EM40760, FTV4076, KN26000, KN26000N, KN26000RX, R955KN26000N, ZZKN26000N
Intended Application	Used on trailers to control both parking and emergency brake functions. Controls reservoir charging. Applies emergency (parking) brakes upon loss of trailer supply (emergency) line pressure. Meets all FMVSS-121 trailer requirements for spring brake control and other regulations prior to Oct. 8, 1992. Interchangeable with competitive units.
