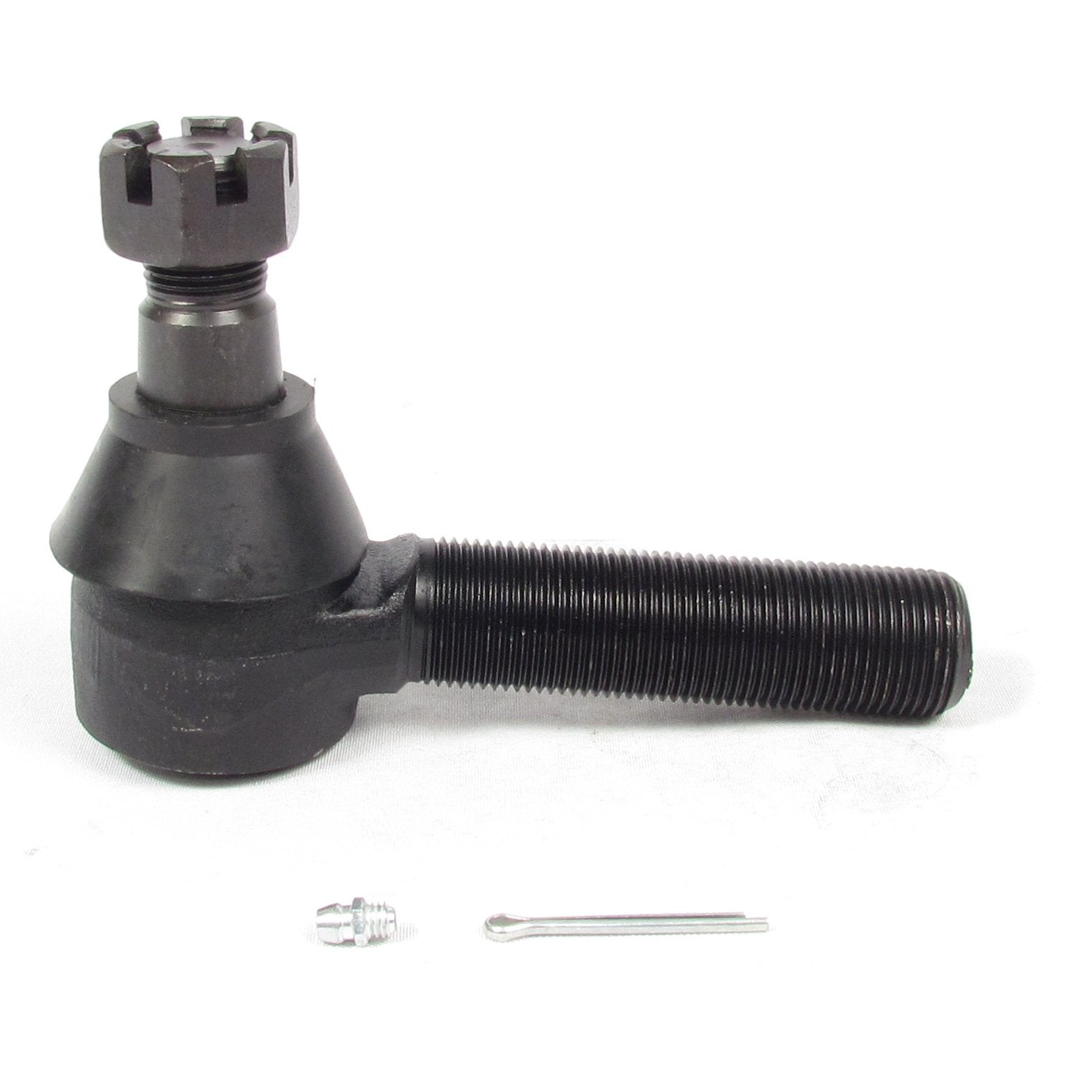

REPLACE F265850 / FR230068 TIE ROD / ES423L

Name: REPLACE F265850 / FR230068 TIE ROD / ES423L
Brand: FORTPRO
SKU: F265858
Availability: BackOrder

Manufacturer: FORTPRO

SKU: F265858

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Steering Components
Category Name	Tie Rods & Ends
Part Type	Tie Rod End
Alternate Part Name	Left Hand Tie Rod End, Tie Rod End Socket
OEM Part Number	R230068
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
Mounting Location	Front Axle
Dimensional/Physical Attributes
Material	Forged Steel
Rod End Thread Size	1.125 in.- 12
Rod Thread Direction	Left Hand
Stud Center to Rod End Length	5.44 in.
Stud Thread Diameter	0.875 in. - 14
Taper Diameter - Large	1.102 in.
Taper Diameter - Small	0.967 in.
Taper Length	1.08 in.
Technical/Performance Attributes
Tie Rod Design Type	Straight
Packaging & Logistics Attributes
Net Weight	3.34 lb.
Special Attributes
Cross References	00698571, 1006148, 140TR109, 15515804, 1668407C91, 1681457C91, 310222, 310222E, 3744497, 438368C91, 507837C91, 698571, 8235-R230068, 8235R230068, A3144E525, ARE9989, D0HZ3A131A, D0HZ3A131D, E-4614, E11004, E3HZ3A131A, E4614, E4HZ3A131A, EM99890, ES3217L, ES423L, FTR423L, FTR8407, L20SV8100D12, L20SV8102D12, L20SV8102D19, L20SV8102K12, L24SV5043A12, L24SV5043A14, PAI9989, SP692243, 1006149, R230068
Intended Application	Steering System: Tie Rod Assembly (Front Steer Axle) Compatible with Mack CXN, CXU models (2012)
