| Product Line | Suspension |
| Category Name | Chassis & Suspension |

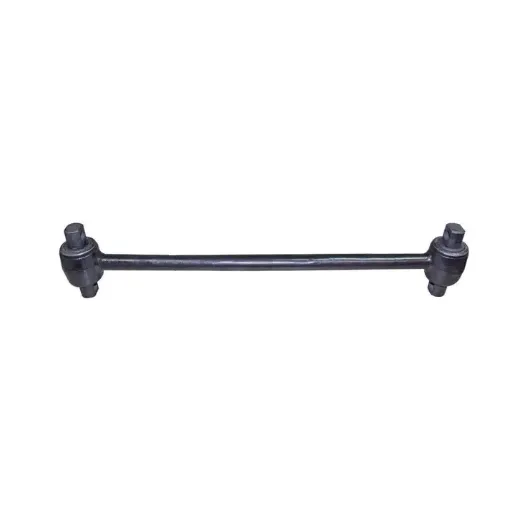

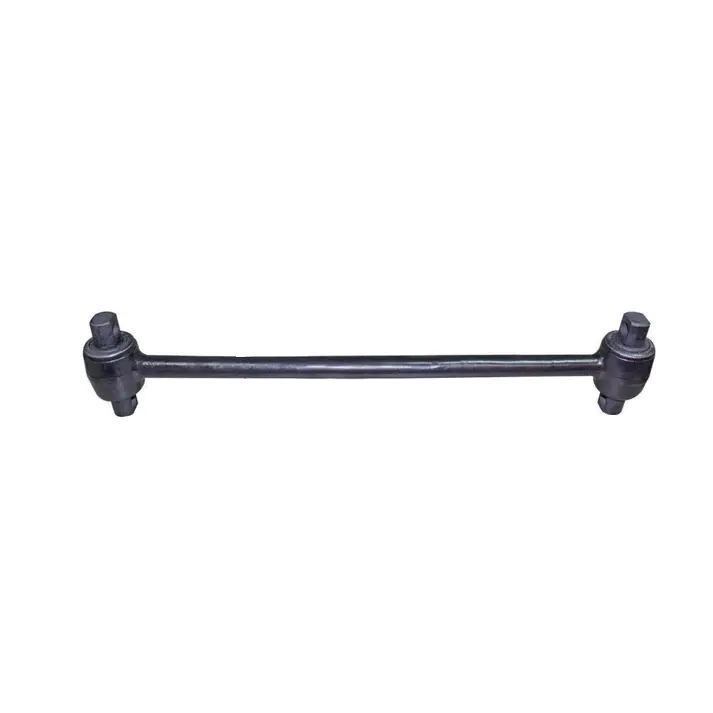

| Part Type | Rigid Torque Rod |
| Alternate Part Name | Torque Rod, Torque Rod Assy, Torque Arm Rigid, Torque Arm with Bushings |
| OEM Part Number | 1616749001 |
| Applicable Bushing | F317261 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Bolt Hole Diameter | 5/8 in. |
| Mounting Position | Front Axle Suspension |
| Torque Rod Style | Rigid |
| Material | Forged Steel |
| Bushing Orientation Angle – End 1 | 90 deg. |
| Bushing Orientation Angle – End 2 | 45 deg. |
| Bushing Type | Straddle/Bar Pin |
| Center Bar Outside Diameter (O.D.) | 1-3/32 in. |
| Distance Between Bolt Holes | 24 in. |
| Net Weight | 13.95 lb. |
| Cross References | 16-16749-001, 1616749001, 345-915, 345915, 741450, A16-16749-001, A1616749001, E-16277, E16277, TMR514F |
| Intended Application | - Compatible With Freightliner Air Ride, FAS ll Suspension Systems.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| BOM | - Torque Rod pcs x 1
- Torque Rod Bush pcs x 2
|
