| Product Line | Brakes |
| Category Name | Air Dryers |
| Part Type | Air Brake Dryer |

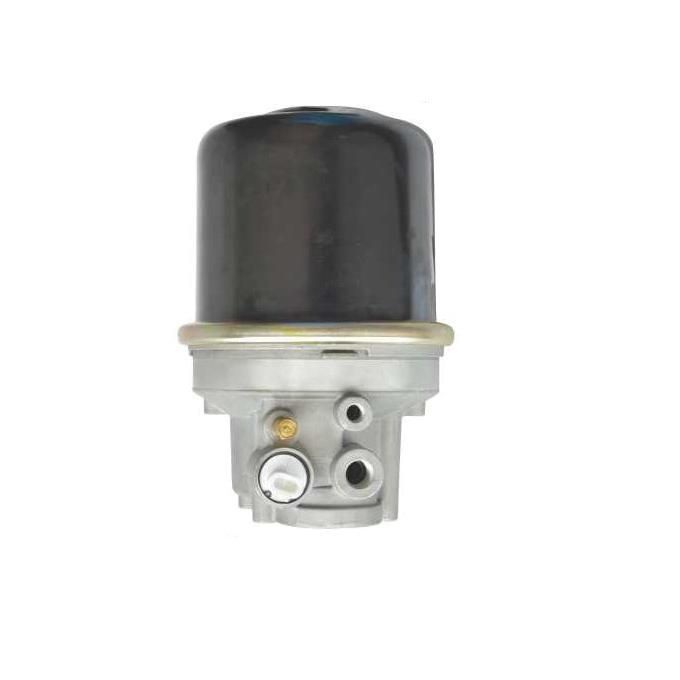

| Model | AD-IP (Integral Purge) |
| OEM Part Number | 65612 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Body Mounting Type | 3/8-16 UNC-2B (4x) |
| Cartridge Thread Type | 1 1/4-7 UNC-2B |
| Cartridge Type | Standard |
| Control Port Size | 1/4 in.-18 NPT |
| Delivery Port 1 Size | 1/2-14 NPT |
| Heater Connector Type | Metri-Pack Sealed Connector (Male) |
| Lower Mounting Bracket Type | .41 IN x 1.15 IN Slot (2x) |
| Purge Exhaust Port Type | Standard |
| Purge Valve Type | Hard Seat |
| Supply Port Size | 1/2 in.-14 NPT |
| Upper Mounting Bracket Type | .41 IN x 1.15 IN Slot (2x) |
| Minimum Operating Temperature | -40 deg. F (-40 deg. C) |
| Operating Voltage | 12V |
| Safety Valve Opening Pressure | 200 psi |
| Thermostat Power Rating (Watts) | 90W |
| Cross References | 065612, 109477, 170065612, 2036827C91, 2036837C91, 26QE434P9, 65612, 802662E, EBN109477X, EBN109477XCF, R955109477X, R955109477XCF |
| Intended Application | For use in standard air brake applications on trucks, tractors, and buses |
