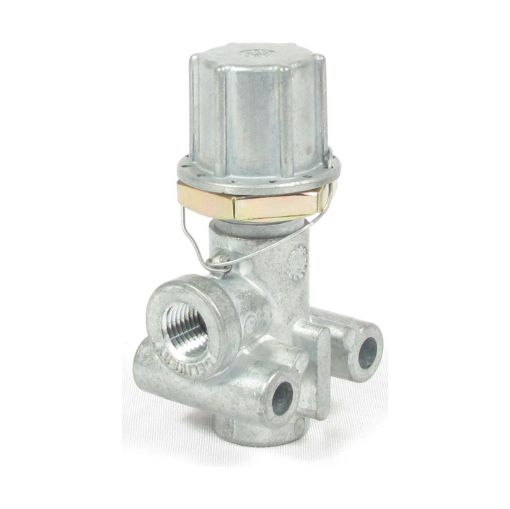

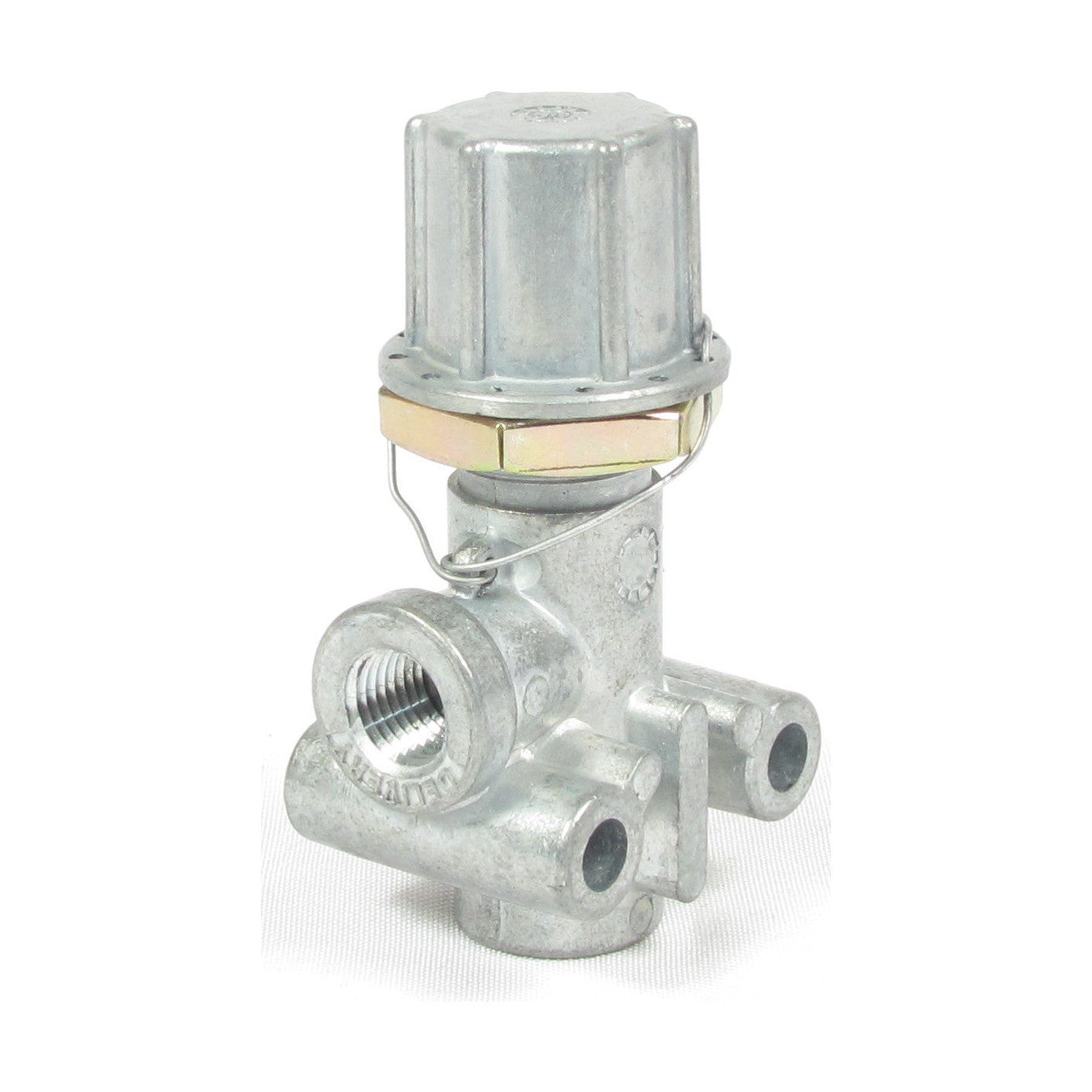

283590, 20QE2119P2 PRESSURE REDUCING VALVE

Name: 283590, 20QE2119P2 PRESSURE REDUCING VALVE
Brand: FORTPRO
SKU: F224673
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F224673

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Air Brake Valves
Part Type	Pressure Reducing Valve
Alternate Part Name	Air Pressure Control Valve, Pressure Regulator Valve, Air Pressure Regulating Valve, Air Pressure Regulator
Model	RV-1
OEM Part Number	283590
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
Delivery Port Size	1/4-18 NPT
Exhaust Port Size	Vent
Mounting Hole Qty	2
Mounting Hole Size	Ø .28 in.
Supply Port Size	1/4-18 NPT
Dimensional/Physical Attributes
Material	Die-cast Zinc
Technical/Performance Attributes
Adjustment System	Adjustable (with Locking Wire)
Delivery Pressure	70 psi
Maximum Operating Temperature	200 deg. F (93 deg. C)
Minimum Operating Temperature	-40 deg. F (-40 deg. C)
Packaging & Logistics Attributes
Net Weight	0.60 lb.
Special Attributes
Cross References	1300, 170283590, 170KN31060, 20QE2119P2, 283590, 283590N, 284157, 284157N, 285533, 285533N, 288424, 347082R92, 745-283590N, 745283590N, EM56370, KN31060, LPR-5637, LPR5637, N15817K, N15817M, RKN31060, S-C568, SC568
Intended Application	Air brake systems in commercial vehicles and trucks. Pneumatic pressure control systems in light duty machinery. Applications where a regulated and stable air supply is required.
