| Product Line | Brakes |
| Category Name | Air Brake NTA Fittings |

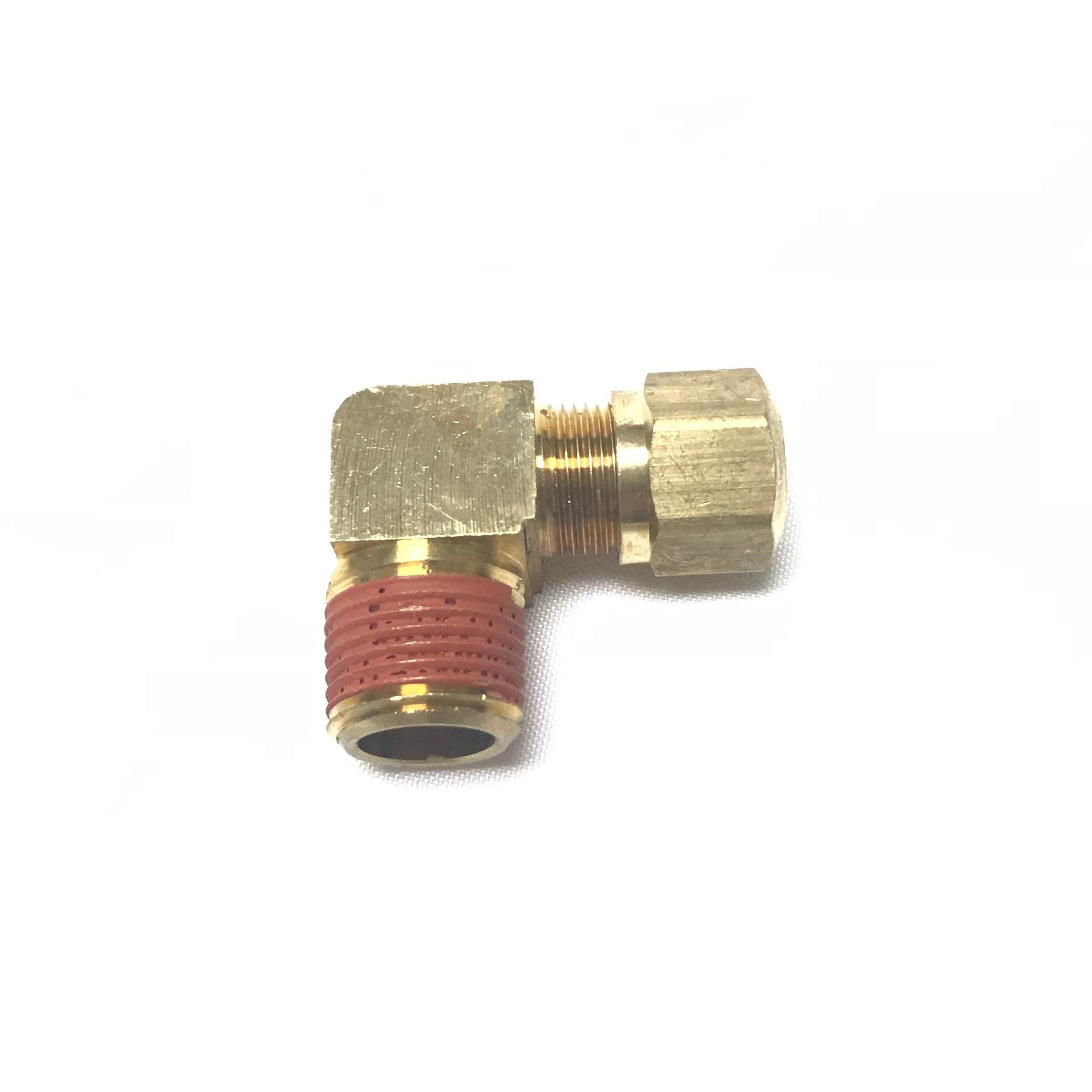

| Part Type | NTA Male Elbow Connector |
| Alternate Part Name | D.O.T. Air Brake Compression Male Elbow Connector |
| OEM Part Number | 1369-4B |
| Application Type | Trailers, Semi-Trucks, Heavy Duty Trucks |
| VMRS Code | 013-010-298 |
| Material | Brass |
| Connection Type | Male Thread - Compression Fitting |
| Connector Shape | Elbow |
| Fitting Angle | 90 deg. |
| Pipe Thread Size | 1/4 in. |
| Tube Outside Diameter | 1/4 in. |
| Maximum Operating Pressure | 150 psi |
| Net Weight | 0.0823 lb. |
| Cross References | 11259, 12-8405, 128405, 1369-4B, 13694B, 16944, 38092, S769AB-4-4, S769AB44 |
| Intended Application | For use in connecting main or secondary air lines in the air brake system on semi-trailers, trailers, buses and agricultural machinery. |
