| Product Line | Brakes |
| Category Name | Air Brake NTA Fittings |

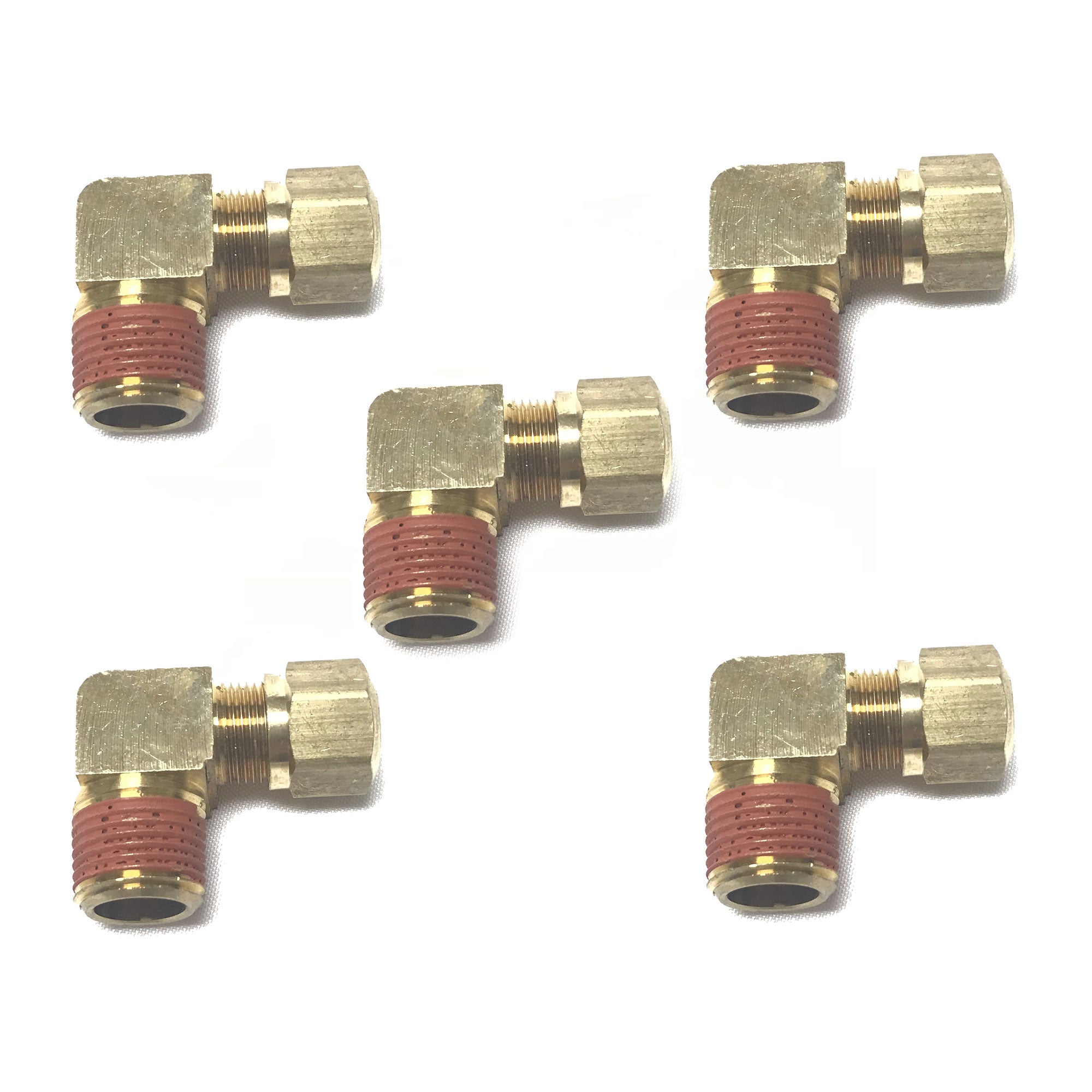

| Part Type | NTA Male Elbow Connector |
| Alternate Part Name | D.O.T. Air Brake Compression Male Elbow Connector |
| OEM Part Number | 1369-12D |
| Application Type | Semi-Trucks, Heavy Duty Trucks, Trailers |
| VMRS Code | 013-010-298 |
| Material | Brass |
| Connection Type | Male Thread - Compression Fitting |
| Connector Shape | Elbow |
| Fitting Angle | 90 deg. |
| Pipe Thread Size | 1/2 in. |
| Tube Outside Diameter | 3/4 in. |
| Maximum Operating Pressure | 150 psi |
| Net Weight | 0.43 lb. |
| Cross References | 016918, 11270, 1369-12D, 136912D, 177.146912D, 177146912D, 38108, S769AB-12-8, S769AB128 |
| Intended Application | For use in connecting main or secondary air lines in the air brake system on semi-trailers, trailers, buses and agricultural machinery. |
