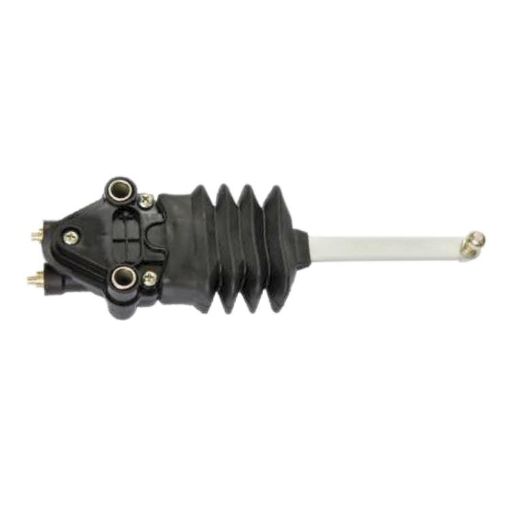

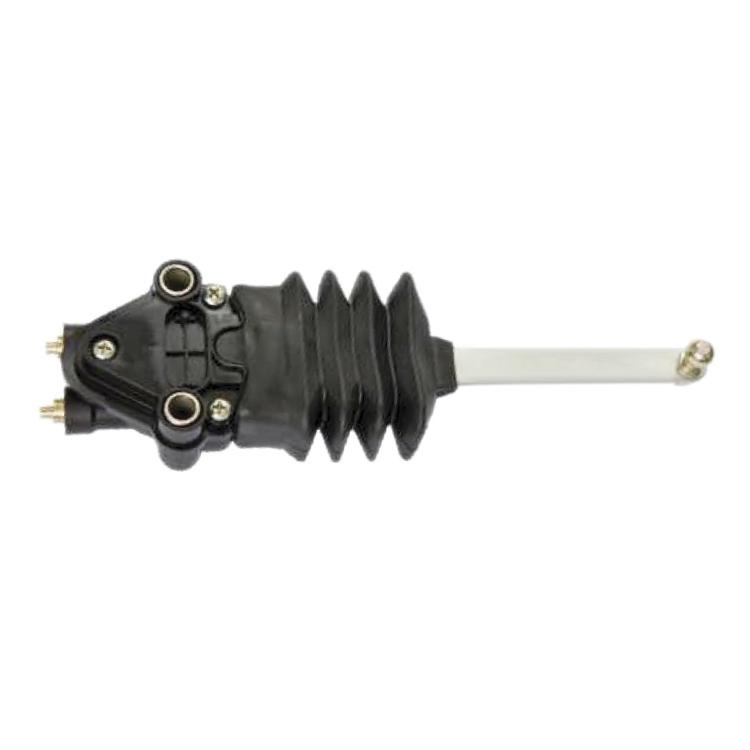

4640070040 Height Control Valve

Name: 4640070040 Height Control Valve
SKU: F245606
Availability: OutOfStock

SKU: F245606

Price:

Qty:

i h h

Specifications
Contact Us

Products specifications

Basic Part Information
Product Line	Chassis & Suspension
Category Name	Air Suspension Valves
Part Type	Cab Height Control Valve
Alternate Part Name	Control Valve Leveling, Height Control Valve, Leveling Valve, Suspension Valve, Cabin Height Control Valve
OEM Part Number	4640070040
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
Connector Type	Push to Connect (PTC)
Mounting Hole Qty	2
Mounting Hole Size	8.5 mm
Port 1 Thread Size	1/4 in.
Port 2 Thread Size	1/4 in.
Dimensional/Physical Attributes
Calculated Volume	0.48608 dm³
Distance Between Bolt Holes	46.4 mm
Length	201 mm
Lever Configuration	With Lever
Lever Hole Diameter	06.5 mm
Technical/Performance Attributes
Actuation Angle Range	-19 deg. to +19 deg.
Lever Stroke Angle	-30 deg. to +30 deg.
Maximum Operating Pressure	11.0 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-40°C to
Packaging & Logistics Attributes
Package Length	9 in.
Package Width	2 in.
Package Height	2 in.
Net Weight	1.08 lb.
Special Attributes
Cross References	171.H004, 171H004, 4640070040, 6300-4640070040, 63004640070040, 740225, K862001, S4640070040, 171H004, 171H004OE, 464 007 004 0, 4640070040, 6300-4640070040, 63004640070040, 740225, 8235-S4640070040, 8235S4640070040, 85106009, E17911, QWABS4640070040, S4640070040, TDAS4640070040, 171.H004, K862001
Intended Application	Compatible with heavy-duty commercial vehicle air suspension systems (trucks, buses, semi-trailers, and Class 7-8 chassis). Functions as a direct original equipment replacement for WABCO part number 4640070040. Always compare with your OEM part number prior to purchase to confirm full compatibility.
