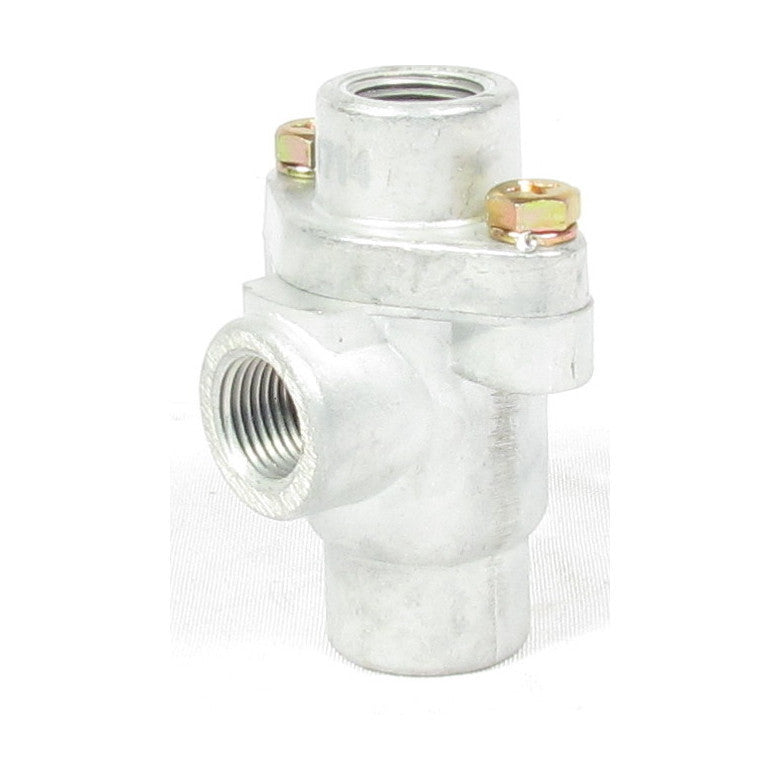

DC-4 DOUBLE CHECK VALVE F278614

Name: DC-4 DOUBLE CHECK VALVE F278614
Brand: FORTPRO
SKU: F224714
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F224714

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Air Brake Valves
Part Type	Check Valve
Alternate Part Name	Twin Check Valve, Two-Way Check Valve, Dual Check Valve
Model	DC-4
OEM Part Number	278614
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
Delivery Port 1 Size	3/8-18 NPT (Female)
Mounting Hole Size	Ø .34 in.
Supply Port 1 Size	3/8-18 NPT (Female)
Supply Port 2 Size	3/8-18 NPT (Female)
Dimensional/Physical Attributes
Material	Die-cast Zinc
Technical/Performance Attributes
Maximum Operating Temperature	200 deg. F (93 deg. C)
Minimum Operating Temperature	-40 deg. F (-40 deg. C)
Packaging & Logistics Attributes
Net Weight	0.75 lb.
Special Attributes
Cross References	170278614, 20QE2222R, 20QE283R, 217698, 277988, 278614, 278614N, 278915, 283321, 283321N, 286414, 287181, 287628, 288323, 288323N, 289547, 289547N, 764368C92, 9340990030, 9340990140, EM40670, KN25060, LCV-4067, LCV4067, RKN25060, S9340990030, S9340990140
Intended Application	Used in air brake systems and other pneumatic systems on heavy vehicles, allowing a single circuit to be supplied from two separate air sources. Its primary function is to direct compressed air from the highest pressure source, ensuring continuous flow and avoiding interruptions in critical systems.
