| Product Line | Driveline & Axles, Driveline & Axles |
| Category Name | Wheel Studs, inner cap nuts and nuts for wheels, Wheel Studs, inner cap nuts and nuts for wheels |

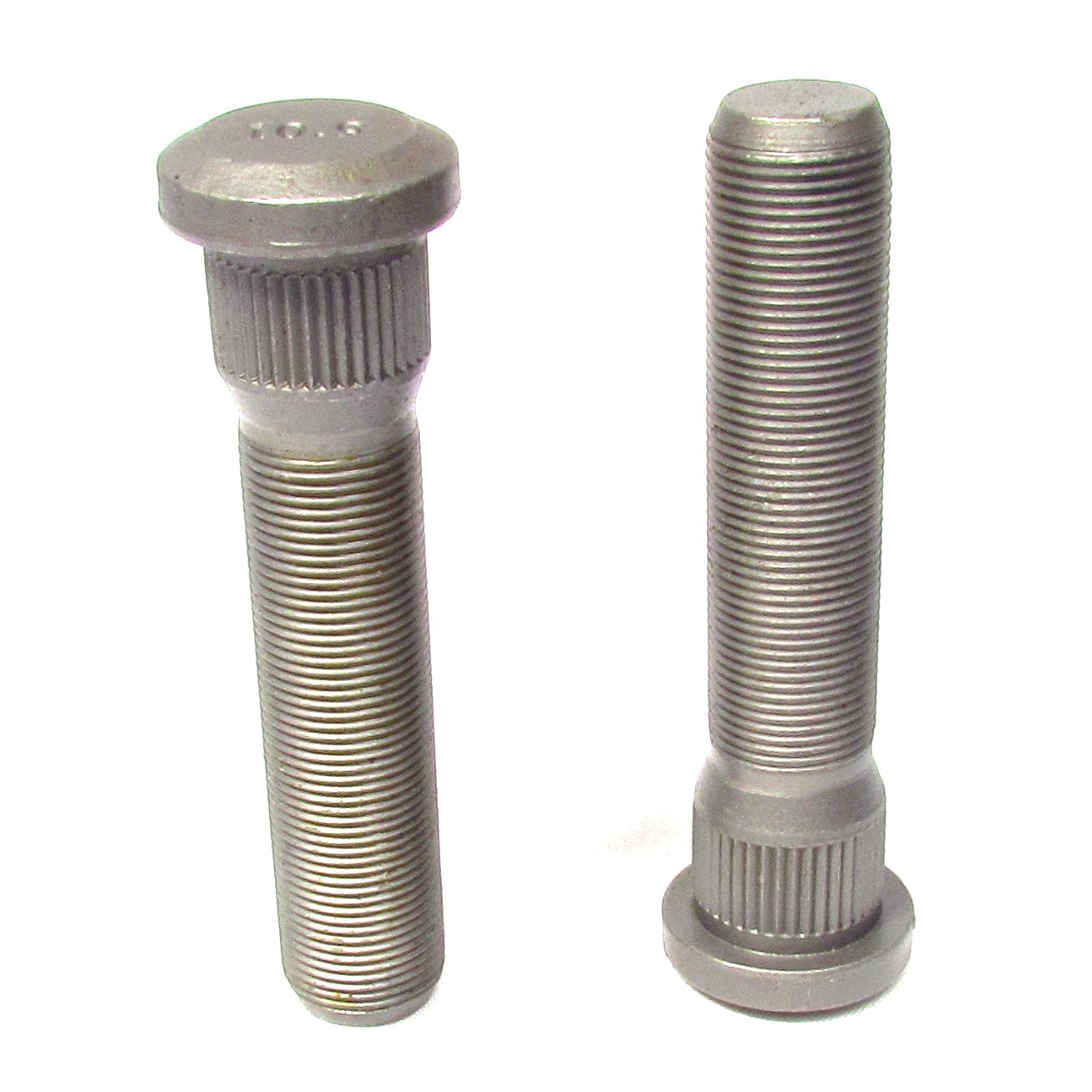

| Part Type | Wheel Stud, Wheel Stud |
| Alternate Part Name | Metric Clipped Head Studs, Metric Serrated Drive Wheel Studs, Metric Clipped Head Studs, Metric Serrated Drive Wheel Studs |
| OEM Part Number | E10676, E10676 |
| Application Type | Heavy-Duty Trucks, Semi-Trucks, Heavy-Duty Trucks, Semi-Trucks |
| Stud Type | Headed, Headed |
| Material | Carbon Alloy Steel, Carbon Alloy Steel |
| Body Diameter (G) | 0.975 in., 0.975 in. |
| Body Length (E) | 0.720 in., 0.720 in. |
| Head Diameter (F) | 1.310 in., 1.310 in. |
| Head Style | Round, Round |
| Head Thickness | 0.310 in., 0.310 in. |
| Length from Under Head (B) | 4-1/4 in., 4-1/4 in. |
| Serration | Serrated, Serrated |
| Serration Diameter | 1.015 in., 1.015 in. |
| Serration Length (D) | 0.500 in., 0.500 in. |
| Thread (A) | M22 x 1.5, M22 x 1.5 |
| Thread Diameter (H) | 22.0 mm, 22.0 mm |
| Thread Direction | RH (Right Hand), RH (Right Hand) |
| Thread Length (C) | 3.280 in., 3.280 in. |
| Thread Size | M22 X 1.5-6g, M22 X 1.5-6g |
| Threads | 1.5 per mm, 1.5 per mm |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8), 10.9 (metric equivalent of Grade 8) |
| Net Weight | 0.80 lb., 0.80 lb. |
| Cross References | 131577, 1681044, 2016153, 2016153P2, 676, E-10676, E10676, R0010676, W1196, W1249, W1327, W1403 |
| Intended Application | - Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
|
