| Product Line | Driveline & Axles, Driveline & Axles |
| Category Name | Wheel Studs, inner cap nuts and nuts for wheels, Wheel Studs, inner cap nuts and nuts for wheels |

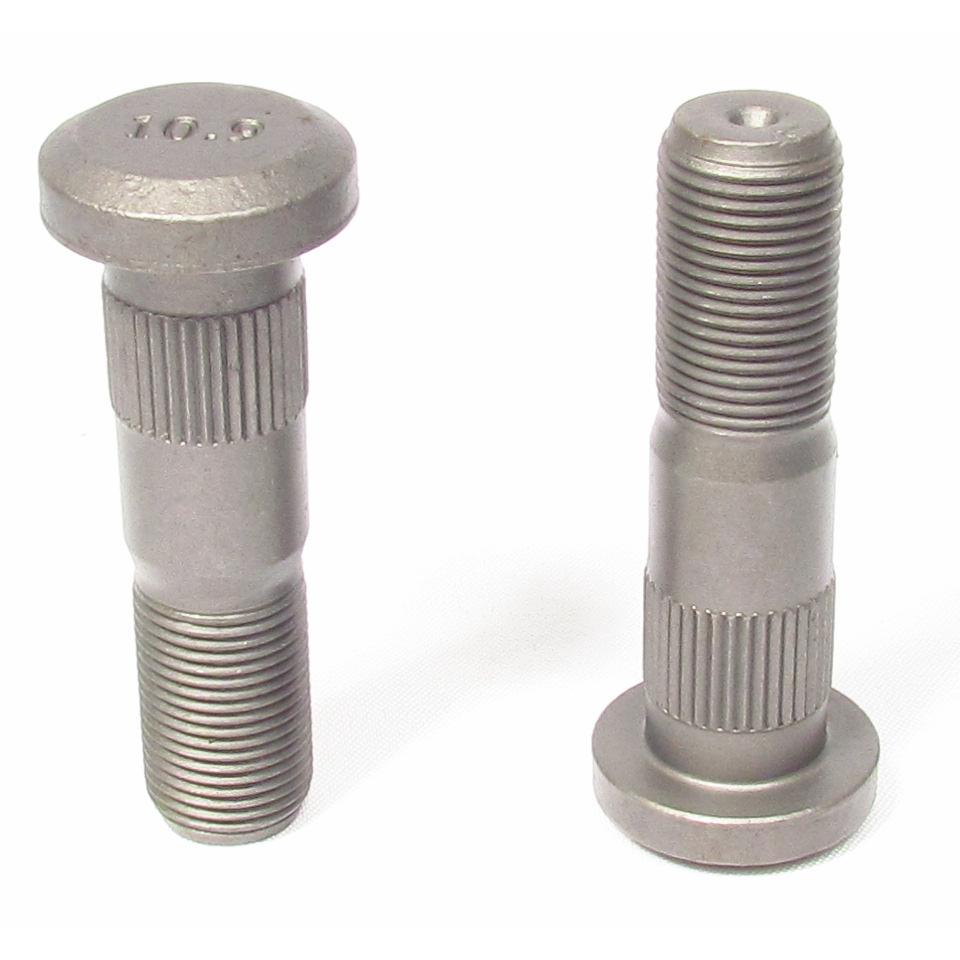

| Part Type | Wheel Stud, Wheel Stud |
| Alternate Part Name | Serrated Drive Wheel Studs, Steer Axle Wheel Stud, Right Hand Wheel Stud, Serrated Drive Wheel Studs, Steer Axle Wheel Stud, Right Hand Wheel Stud |
| OEM Part Number | E4967R, E4967R |
| Application Type | Semi-Trucks, Heavy-Duty Trucks, Semi-Trucks, Heavy-Duty Trucks |
| Stud Type | Headed, Headed |
| Material | Carbon Alloy Steel, Carbon Alloy Steel |
| Body Diameter (G) | 0.785 in., 0.785 in. |
| Body Length (E) | 1.500 in., 1.500 in. |
| Head Diameter (F) | 1.280 in., 1.280 in. |
| Head Style | Round, Round |
| Head Thickness | 0.310 in., 0.310 in. |
| Length from Under Head (B) | 2-7/8 in., 2-7/8 in. |
| Serration | Serrated, Serrated |
| Serration Diameter | 0.820 in., 0.820 in. |
| Serration Length (D) | 0.500 in., 0.500 in. |
| Thread (A) | 3/4 in.-16, 3/4 in.-16 |
| Thread Diameter (H) | 0.750 in., 0.750 in. |
| Thread Direction | RH (Right Hand), RH (Right Hand) |
| Thread Length (C) | 0.970 in., 0.970 in. |
| Thread Size | 3/4-16 UNF-2A, 3/4-16 UNF-2A |
| Threads | 16 per inch, 16 per inch |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8), 10.9 (metric equivalent of Grade 8) |
| Net Weight | 0.46 lb., 0.46 lb. |
| Cross References | 131107R, 1541704R, 2016042R, 2016042RP2, 21W6869, 384967R, 501127R, 610089, 6411216, 968, E-4967-R, E4967R, M78, M7979, R004967R |
| Intended Application | - Compatible with TK, TKL, RL, RN, RQ, TKN, TL (also Eaton)
- Compatible with some cast drums on TK, TKL, use E-4968-R/L
|
