| Product Line | Driveline & Axles, Driveline & Axles |
| Category Name | Wheel Studs, inner cap nuts and nuts for wheels, Wheel Studs, inner cap nuts and nuts for wheels |

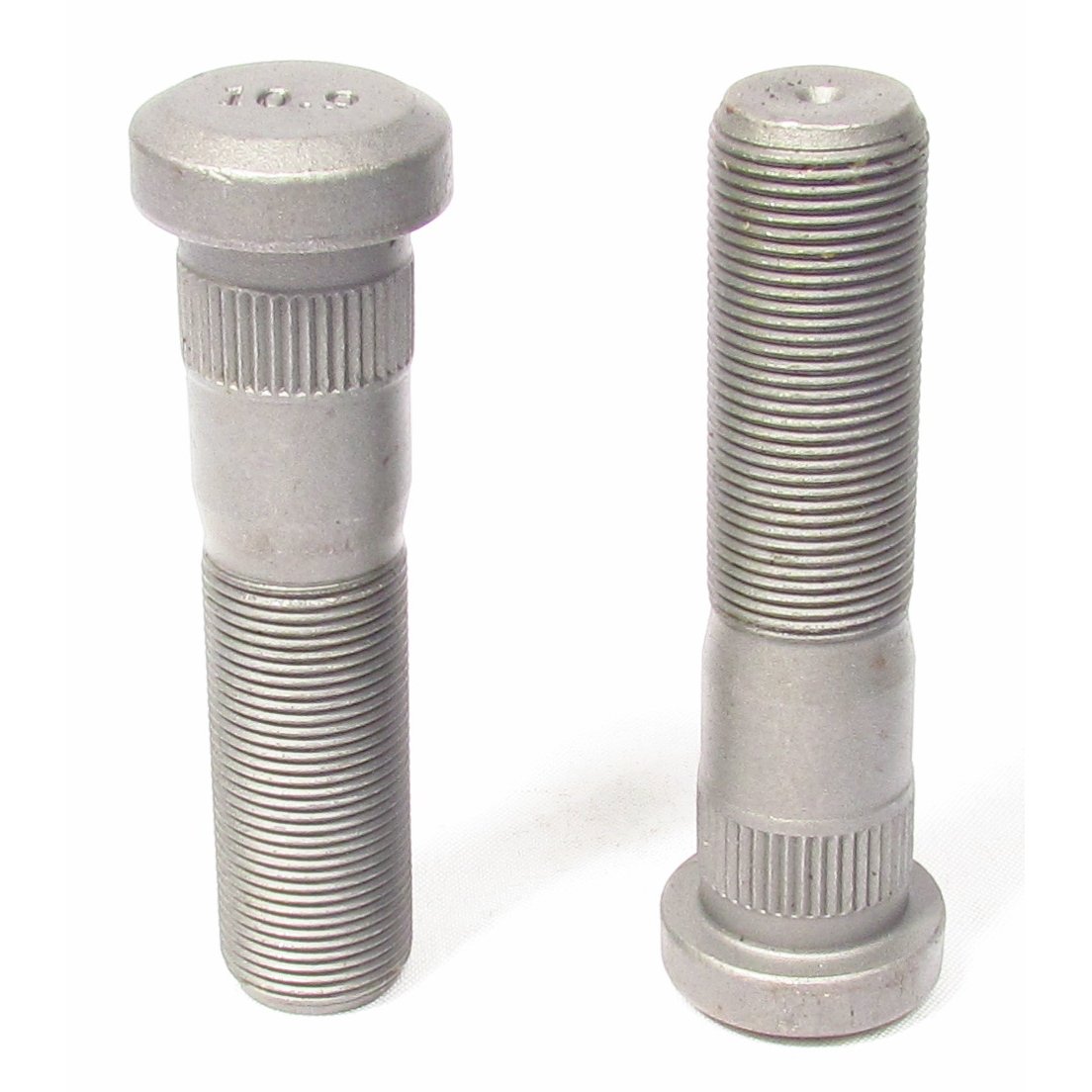

| Part Type | Wheel Stud, Wheel Stud |
| Alternate Part Name | Metric Serrated Drive Wheel Studs, Metric Clipped Head Studs, Metric Serrated Drive Wheel Studs, Metric Clipped Head Studs |
| OEM Part Number | E5997, E5997 |
| Application Type | Semi-Trucks, Heavy-Duty Trucks, Semi-Trucks, Heavy-Duty Trucks |
| Stud Type | Headed, Headed |
| Material | Carbon Alloy Steel, Carbon Alloy Steel |
| Body Diameter (G) | 0,900 in., 0,900 in. |
| Body Length (E) | 0.880 in., 0.880 in. |
| Head Diameter (F) | 1.260 in., 1.260 in. |
| Head Style | Round, Round |
| Head Thickness | 0.390 in., 0.390 in. |
| Length from Under Head (B) | 3-5/8 in., 3-5/8 in. |
| Serration | Serrated, Serrated |
| Serration Diameter | 0.950 in., 0.950 in. |
| Serration Length (D) | 0.390 in., 0.390 in. |
| Thread (A) | M22 x 1.5, M22 x 1.5 |
| Thread Diameter (H) | 22.0 mm, 22.0 mm |
| Thread Direction | RH (Right Hand), RH (Right Hand) |
| Thread Length (C) | 2.450 in., 2.450 in. |
| Thread Size | M22 X 1.5-6g, M22 X 1.5-6g |
| Threads | 1.5 per mm, 1.5 per mm |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8), 10.9 (metric equivalent of Grade 8) |
| Net Weight | 0.73 lb., 0.73 lb. |
| Cross References | 106216, 131581, 15427002, 2016132, 3018503, 335, 385997, 501285, E5997 E-5997, E5997 E5997, E5997. E-5997, E5997. E5997, IT5997, M3201, R005997, E-5997, E5997 |
| Intended Application | - Wheel End Hardware. Designed to be used with an F286669 nut.
|
