| Product Line | Driveline & Axles |
| Category Name | Wheel Fasteners |

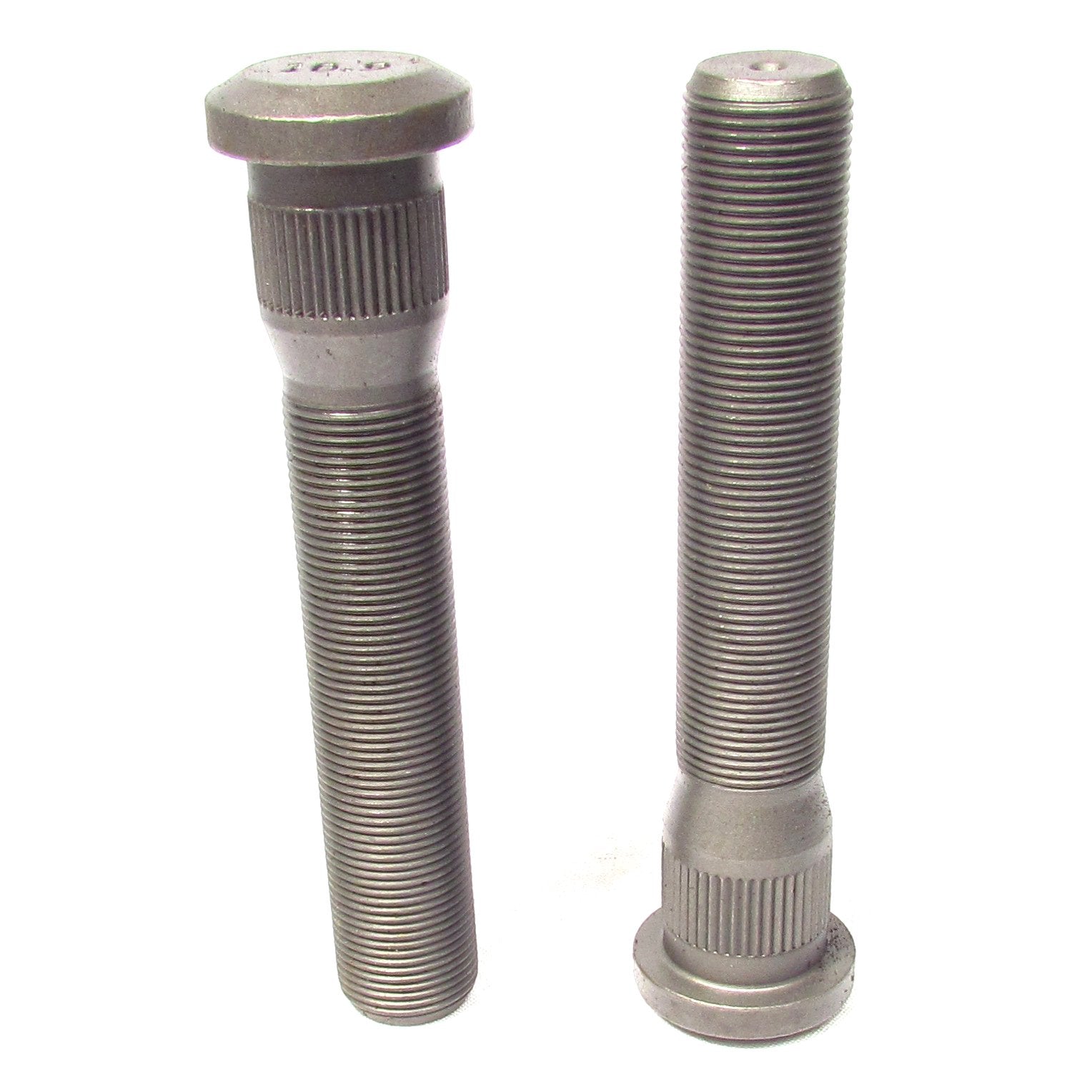

| Part Type | Wheel Stud |
| Alternate Part Name | Metric Serrated Drive Wheel Studs, Metric Clipped Head Studs |
| OEM Part Number | E8980 |
| Application Type | Semi-Trucks, Heavy-Duty Trucks |
| Stud Type | Headed |
| Material | Carbon Alloy Steel |
| Body Diameter (G) | 0.975 in. |
| Body Length (E) | 0.920 in. |
| Head Diameter (F) | 1.310 in. |
| Head Style | Round |
| Head Thickness | 0.310 in. |
| Length from Under Head (B) | 5-1/8 in. |
| Serration | Serrated |
| Serration Diameter | 1.015 in. |
| Serration Length (D) | 0.500 in. |
| Thread (A) | M22 x 1.5 |
| Thread Diameter (H) | 22.0 mm |
| Thread Direction | RH (Right Hand) |
| Thread Length (C) | 3.710 in. |
| Thread Size | M22 X 1.5-6g |
| Threads | 1.5 per mm |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8) |
| Net Weight | 0.96 lb. |
| Cross References | 131576, 1681044, 2016158, 422, E-8980, E8980, R008980, W1160 |
| Intended Application | - Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
|
