| Product Line | Brakes |
| Category Name | Air Dryers |
| Part Type | Air Brake Dryer |

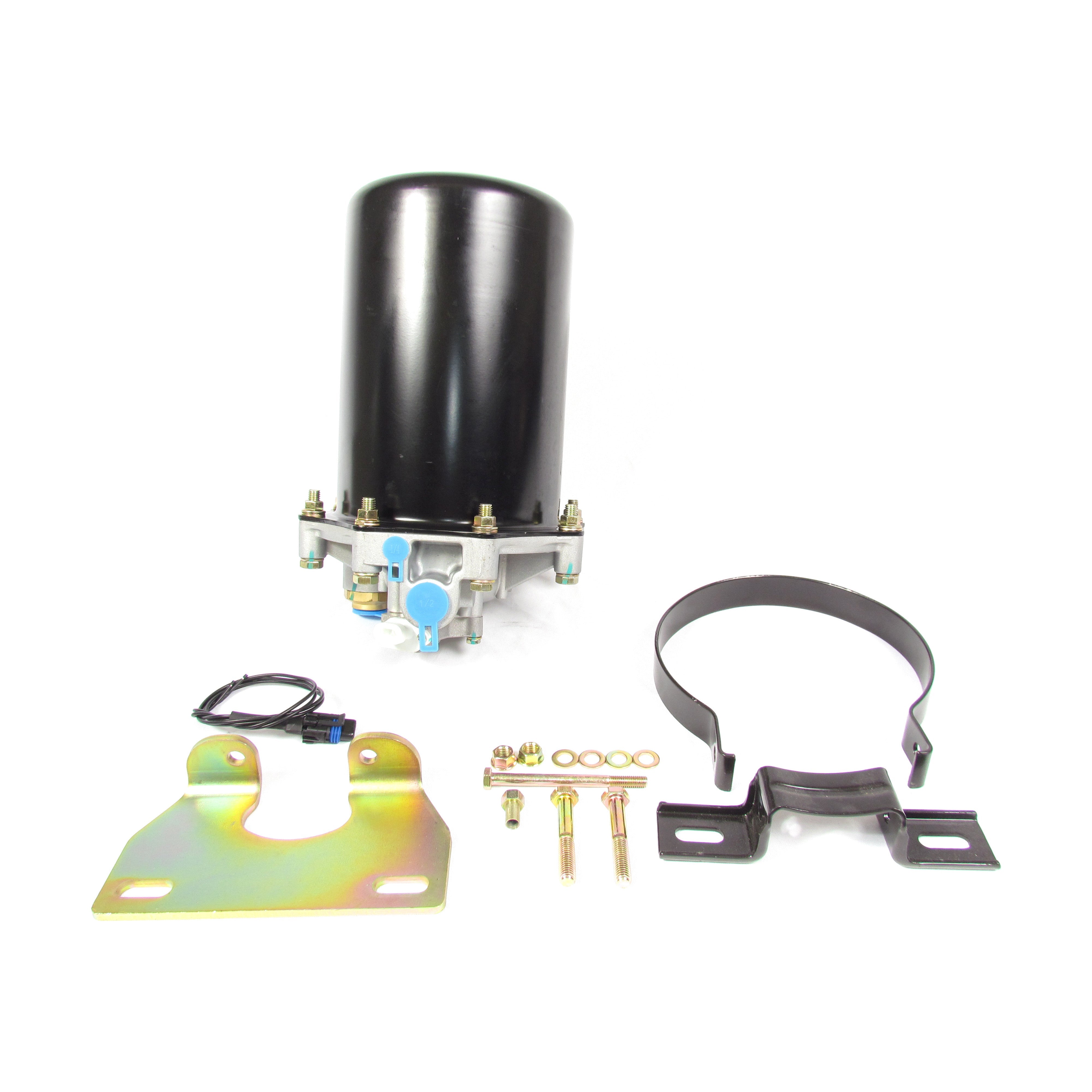

| Model | AD-9 |
| OEM Part Number | 65225 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Body Mounting Type | .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x) |
| Cartridge Thread Type | 5/8-11 UNC-2A |
| Cartridge Type | Standard |
| Control Port Size | 1/4 in.-18 NPT |
| Delivery Port 1 Size | 1/2-14 NPT |
| Heater Connector Type | Metri-Pack Sealed Connector (Male) |
| Lower Mounting Bracket Type | .41 IN x 1.15 IN Slot (2x) |
| Purge Exhaust Port Type | Open |
| Purge Valve Type | Soft Seat |
| Supply Port Size | 1/2 in.-14 NPT |
| Upper Mounting Bracket Type | Strap (Carbon Steel) |
| Minimum Operating Temperature | -40 deg. F (-40 deg. C) |
| Operating Voltage | 12V |
| Safety Valve Opening Pressure | 200 psi |
| Thermostat Power Rating (Watts) | 75W |
| Technical Notes | No Governor Included |
| Cross References | 065225, 065225X, 1093794, 109685, 109685X, 26QE377, EBN065225N, EBN065225XCF, R955065225N, R955065225X |
| Intended Application | For use in standard air brake applications on trucks, tractors, and buses |
