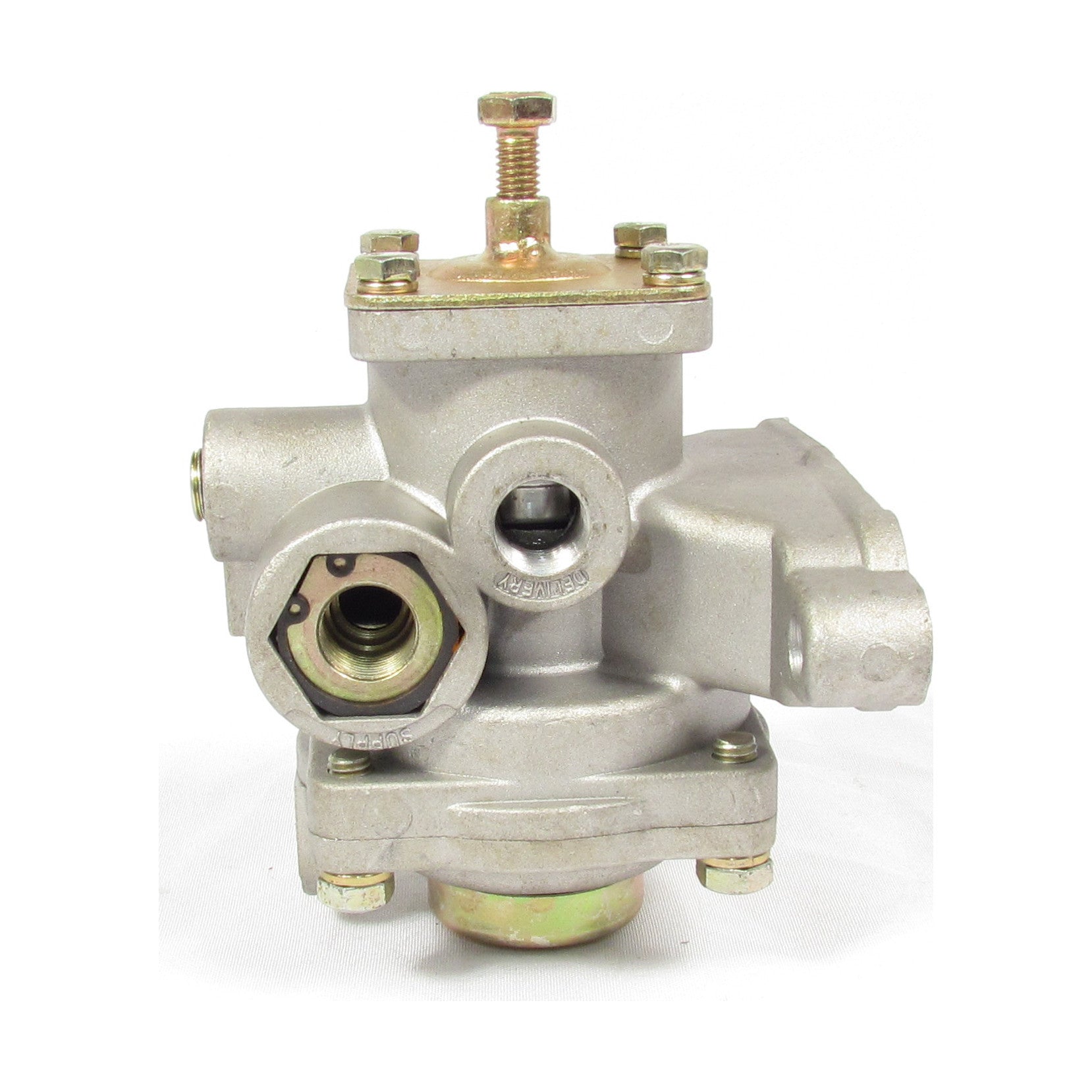

F103081, F20QE3295 R-7 MODULATING VALVE

Name: F103081, F20QE3295 R-7 MODULATING VALVE
Brand: FORTPRO
SKU: F224674
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F224674

Price:

Qty:

i h h

Specifications
Contact Us

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Air Brake Valves
Part Type	Modulating Valve
Alternate Part Name	Tractor Spring Brake Valves
Model	R-7
OEM Part Number	103081
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
Balance Port Size	1/4-18 NPT
Control Port Size	1/4-18 NPT
Delivery Port Qty	2
Delivery Port Size	3/8-18 NPT
Exhaust Port Size	Dust Shield
Mounting Hole Qty	2
Mounting Hole Size	Ø .41 in.
Supply Port Size	3/8-18 NPT
Dimensional/Physical Attributes
Material	Die-cast Zinc
Technical/Performance Attributes
Anti-Compounding	Yes
Exhaust Orientation	Exhaust Facing Up
Maximum Operating Temperature	200 deg. F (93 deg. C)
Minimum Operating Temperature	-40 deg. F (-40 deg. C)
Spring Brake Hold-Off Pressure	95 psi
Compliance & Certification Attributes
Regulatory Compliance	FMVSS 121
Packaging & Logistics Attributes
Net Weight	3.06 lb.
Special Attributes
Cross References	103081, 103081N, 103081RX, 103081X, 170103081, 20QE3295, AV103081, BAR103081 BX103081 ZAC103081, BEN103081N, BX103081RX, EBN103081N, EM34590, LMV3459, OR103081, OR103081X, R955103081N
Intended Application	Heavy and commercial vehicles equipped with spring brake systems that require protection against primary circuit failure. Trucks and trailers that need precise braking modulation to prevent wheel lockup in emergency situations. Transport fleets looking to improve operational safety and reduce premature brake wear. Dual-circuit pneumatic brake systems, where a safe transition between the service brake and the parking brake needs to be ensured.
