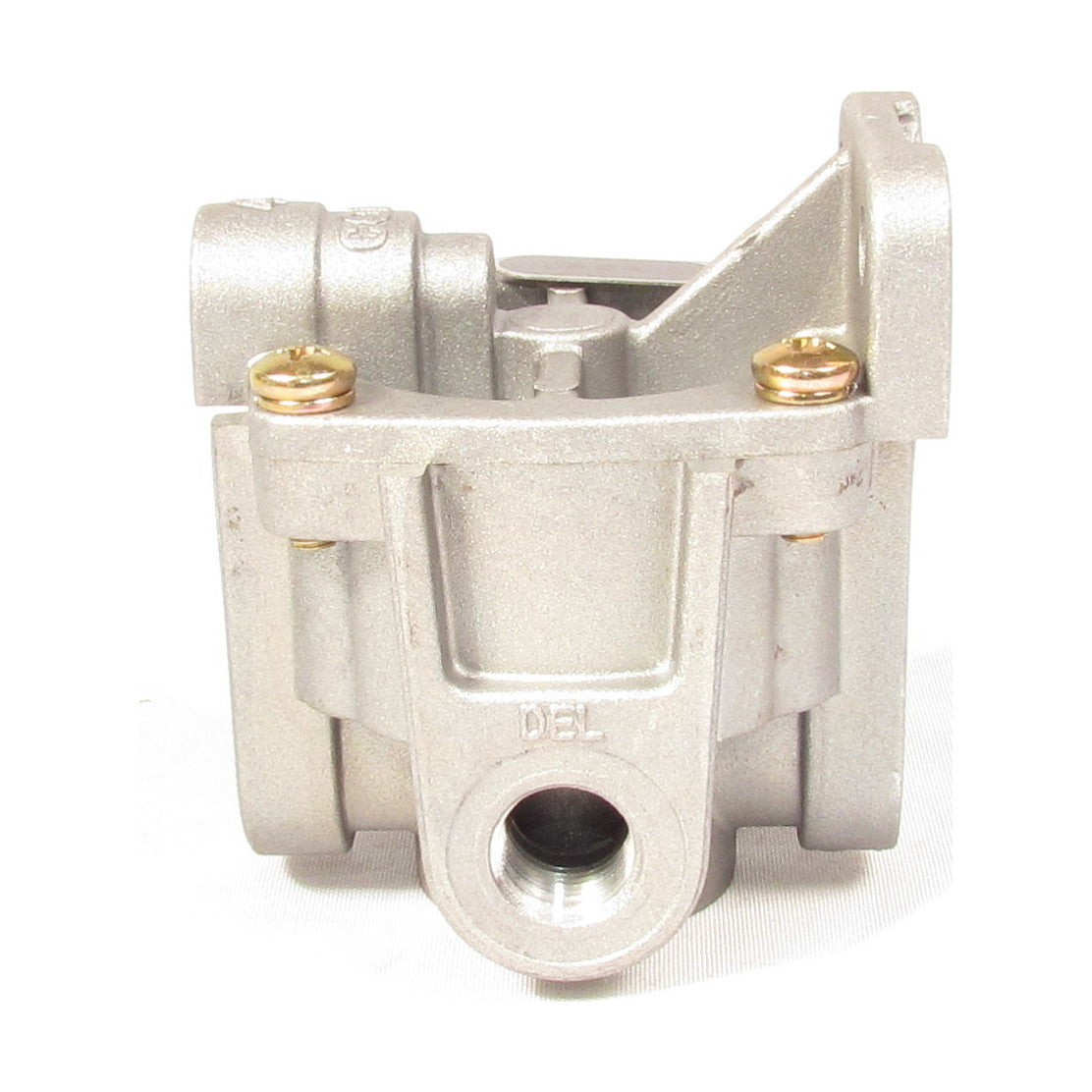

FKN28510 RG-2 RELAY VALVE

Name: FKN28510 RG-2 RELAY VALVE
Brand: FORTPRO
SKU: F224691
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F224691

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Air Brake Valves
Part Type	Relay Valve
Model	RG2
OEM Part Number	KN28510
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
Compatible Repair Kit Part Number	F224643
Control Port Size	1/4-18 NPT
Delivery Port Qty	2
Delivery Port Size	3/8-18 NPT
Mounting Hole Qty	2
Mounting Hole Size	0.34 in.
Supply Port Size	3/8-18 NPT, 1/2-14 NPT
Supply Port Qty	2
Dimensional/Physical Attributes
Material	Die-cast Aluminum
Technical/Performance Attributes
Control Port Orientation	90 deg.
Crack Pressure	6.0 psi
Maximum Operating Temperature	200 deg. F (93 deg. C)
Minimum Operating Temperature	-40 deg. F (-40 deg. C)
Packaging & Logistics Attributes
Net Weight	1.35 lb.
Special Attributes
Cross References	170.KN28510, 170KN28510, 3081425, 5396-KN28510, 5396KN28510, 8235-RKN28510, 8235RKN28510, EM36120, EMDKN28510N, KN28510, KN28510X, LRV-3612, LRV3612, R955KN28510N, RKN28510, TDA-R955KN28510N, TDAR955KN28510N, WABWKN28510, ZZKN28510X
Intended Application	Air brake systems for heavy vehicles: Fast relay used to apply and release service brakes on tractor or trailer.
