| Product Line | Driveline & Axles |
| Category Name | Driveline Components |

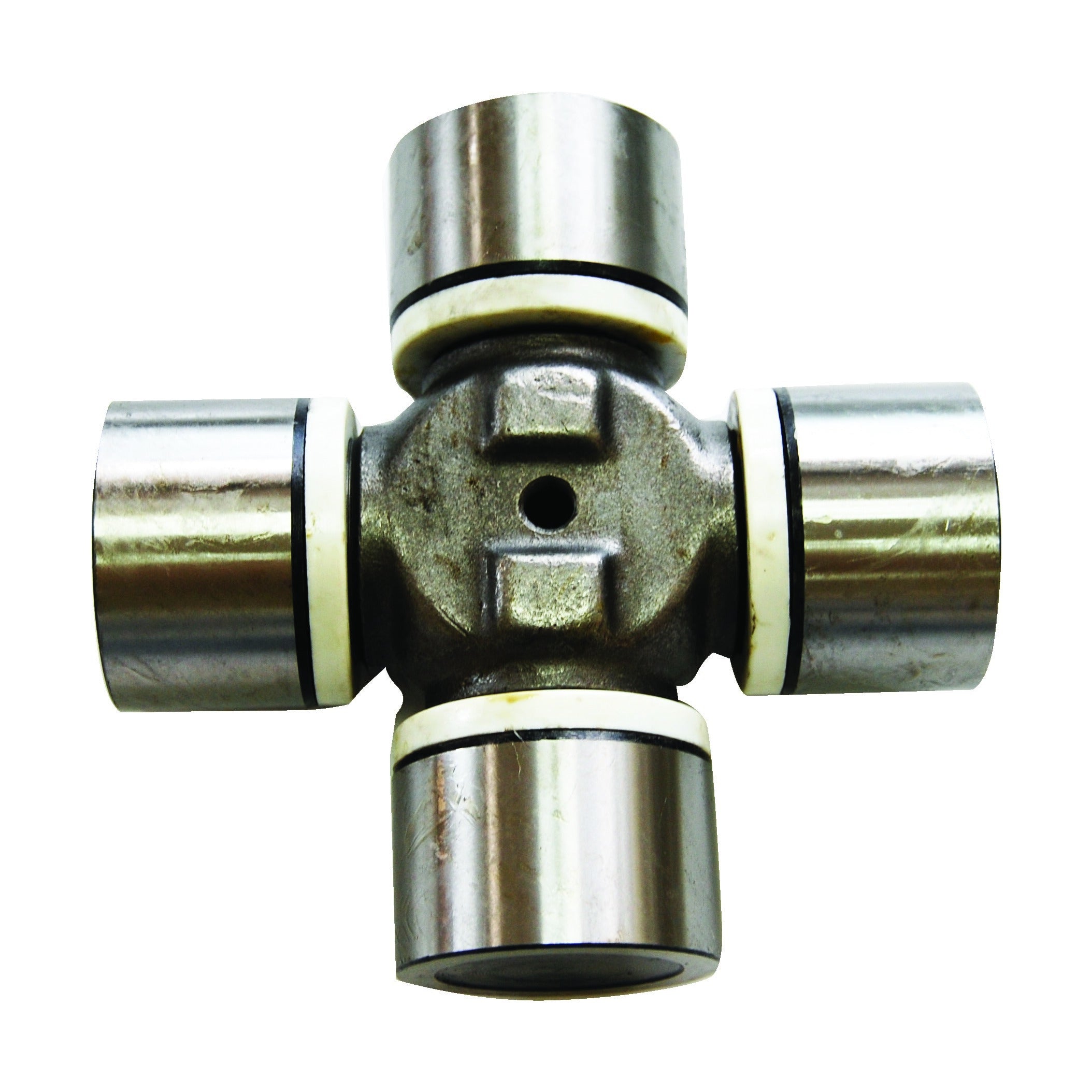

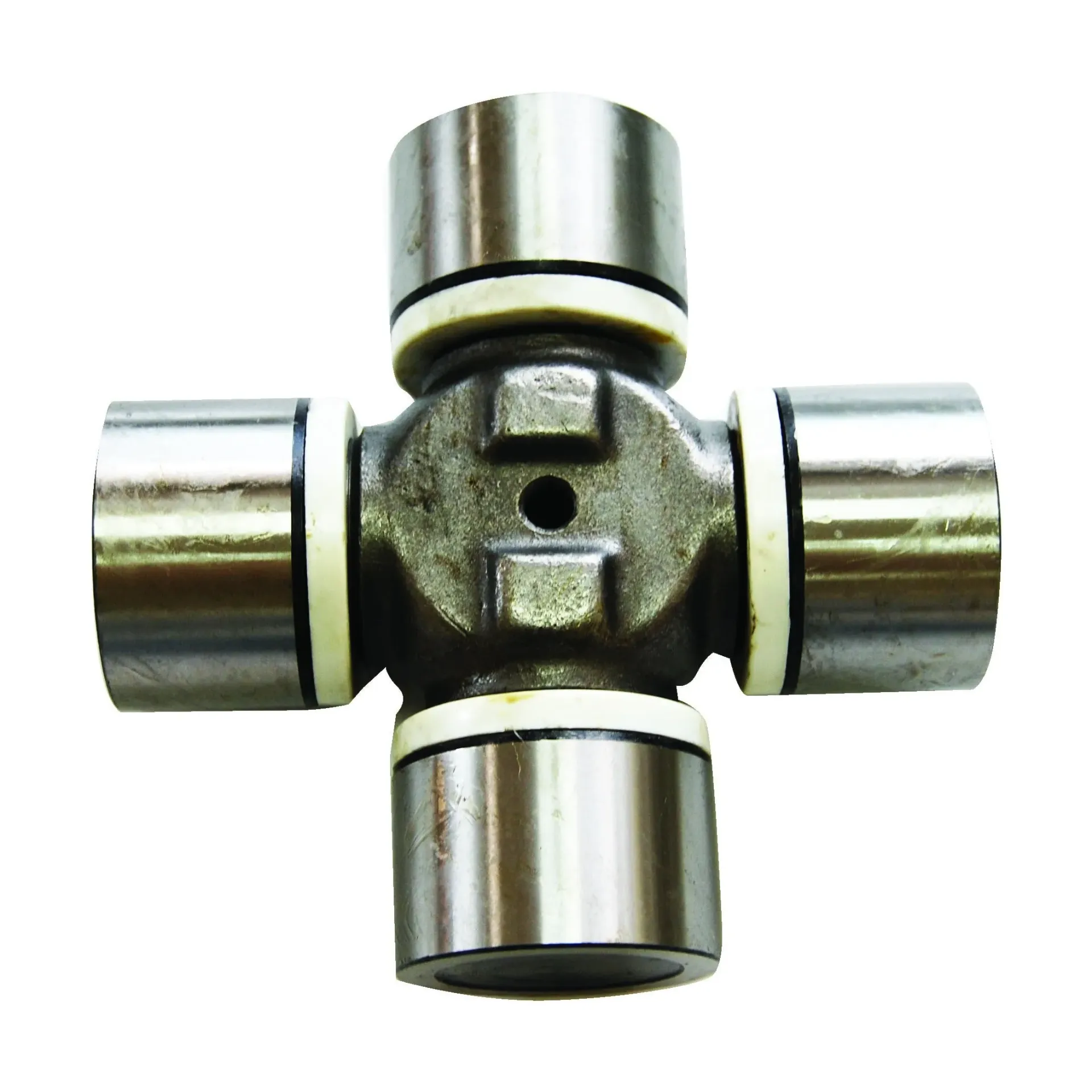

| Part Type | Universal Joint |
| Alternate Part Name | U Joint |
| OEM Part Number | SPL140X |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Series | SPL140 |
| Universal Joint Type | Spring Tab Style |
| VMRS Code | 24002046 |
| Material | Steel |
| Bearing Cap Diameter | 1.937 in. |
| Bearing Cap Type | Round |
| Snap Ring Type | SPRTAB |
| Spring Tab Distance | 5.461 in. |
| Grease Fitting Location | Center of Cross |
| Greaseable | Yes |
| Net Weight | 7.14 lb. |
| Cross References | 2500677C91, 752.SPL140X, 752SPL140X, SPL140X |
| Intended Application | - Designed for heavy duty driveshafts utilizing yokes specifically manufactured for the SPRTAB retention style. Manufactured for high-torque drivetrain applications, with a focus on heavy-duty commercial vehicles, buses, and industrial/off-highway machinery. Its greaseable design and SPRTAB Style (Spring Tab) retention system ensure maximum durability, fatigue resistance, and operating efficiency under severe loading and vibration conditions.
|
| BOM | - 1 Universal Joint
- 4 Bearing Caps
- 12 Drive Shaft Bolt ?
- 4 Spring Tab
- 1 Lube Fitting
|
