| Product Line | Driveline & Axles |
| Category Name | Driveline Components |
| Part Type | Universal Joint Strap Kit |
| Alternate Part Name | Retainer Kit, Bearing Strap Kit |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Series | SPL250 |
| VMRS Code | 24002072 |
| Material | Steel |
| Bolt Head Style | Flanged 12-Point |
| Bolt Thread Length | 0.984 in. |
| Distance Between Bolt Holes | 3.444 in. |
| Drive Shaft Bolt Specification | M12 X 1.25 6G |
| Retainer Type | Bearing Cap Retainer |
| Bolt Grade | 10.9 |
| Bolt Torque | 115-135 ft-lb. |
| Net Weight | 1.39 lb. |
| Cross References | 25-250-70-18X, 250N-70-18X, 250N7018X, 252507018X, 7522507018, EM69280, JKT-6928, JKT6928, N2507018X |
| Intended Application | - Designed for SPL250 Series Universal Joints, or their equivalents, it is an essential component for securing the U-joint to the yoke in the drivetrain. Its primary application is in a wide range of heavy commercial vehicles, including trucks, buses, and construction machinery.
|

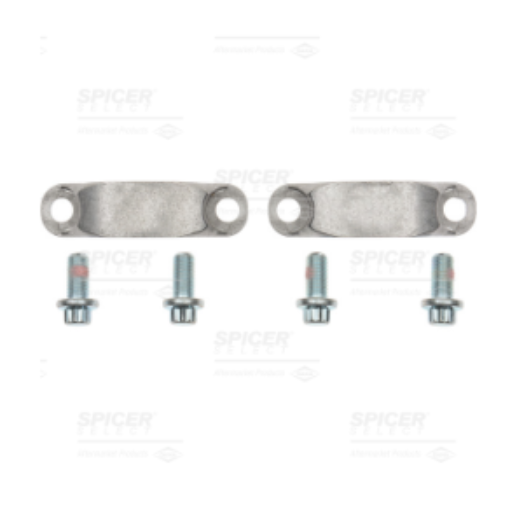

| BOM | - 2 Strap
- 4 Drive Shaft Bolt (M12 X 1.25)
|
