| Product Line | Driveline & Axles |
| Category Name | Universal Joints Assemblies |
| Part Type | Universal Joint |
| Alternate Part Name | U Joint |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Series | RPL25 |
| Universal Joint Type | RPL |
| VMRS Code | 24002046 |
| Material | Steel |
| Bearing Cap Diameter | 2.061 in. |
| Bearing Cap Type | Round, Wing |
| Center-to-Center Bearing Bolt Hole | 2.812 in. |
| Outside Snap Ring to Snap Ring | 8.203 in. |
| Snap Ring Type | External |
| Wing Bearing Type | Wing RPL |
| Wing Hole to Wing Hole Distance | 6.63 in. |
| Greaseable | No |
| Net Weight | 14.04 lb. |
| Cross References | 35-RPL25X, 35RPL25X, 7521225R, 8235-CP25RPLS1, 8235CP25RPLS1, CP25-RPL-S1, CP25RPLS1, EM59090, JUJ-5909, JUJ5909, 752.1225R |
| Intended Application | "Compatible with driveshafts equipped with ""Full Round"" or ""Bolt-on"" style yokes, specifically designed to accept Meritor CP25 series universal joints. Its application focuses on heavy-duty driveshafts in commercial and vocational vehicles requiring a robust, backlash-free connection using bolt-on retaining plates." |

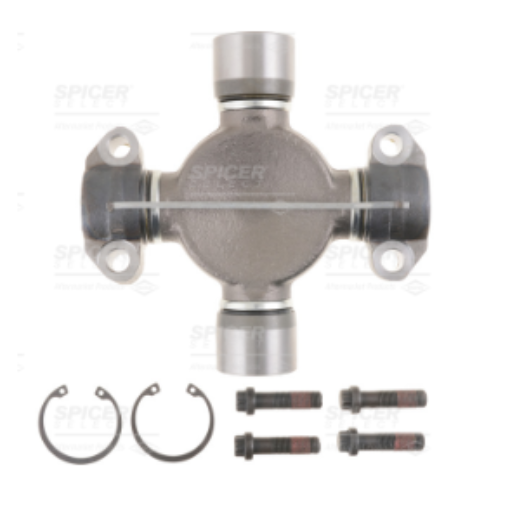

| BOM | - 1 Universal Joint
- 2 Bearing Caps
- 2 Snap Ring
- 4 Drive Shaft Bolt
|
