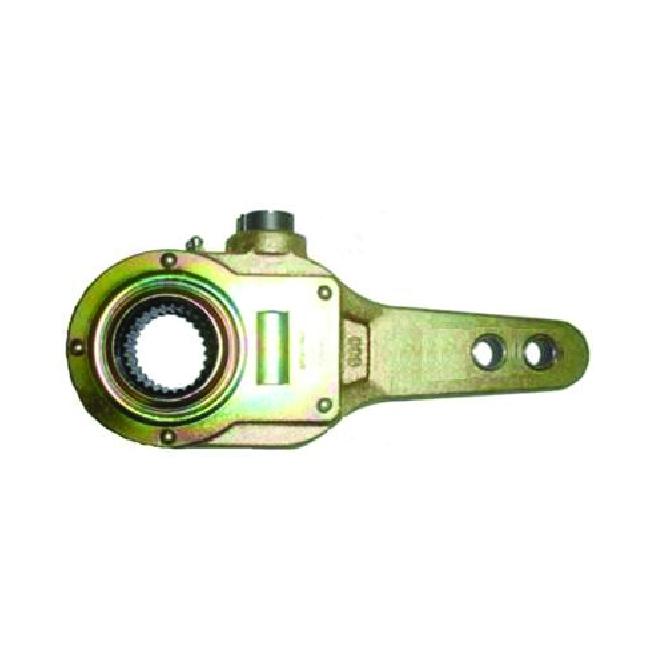

MANUAL SLACK ADJUSTER 1-1/2IN 28 TEETH 288753

Name: MANUAL SLACK ADJUSTER 1-1/2IN 28 TEETH 288753
Brand: FORTPRO
SKU: F224771
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F224771

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Slack Adjusters
Part Type	Manual Slack Adjuster
Model	Bendix Style / PL-20
OEM Part Number	288753
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
Compatible Brake Chamber Sizes	T-16, T-20, T-24
Clevis Type	Straight
Dimensional/Physical Attributes
Material	Alloy Steel
Arm Bushing Inside Diameter	1/2 in.
Arm Length Position 1	6-1/2 in.
Arm Length Position 2	5-1/2 in.
Arm Offset	No Offset
Body Inclination Angle	0 deg.
Clevis Thread Diameter	5/8-18 UNF-2B
Slack Spline Count	28
Slack Spline Diameter	1-1/2 in.
Technical/Performance Attributes
Maximum Operating Temperature	158 deg. F (70 deg. C)
Maximum Torque	22.000 In./Lbs.
Minimum Operating Temperature	(-40 deg. F) (-40 deg. C)
Operation Type	Tension Adjuster - Torque
Positive Lock Feature	Yes
Special Attributes
Cross References	10368, 10368BULK, 1342831, 2021R, 2029, 2066, 288753, 288753N, 52228, CA2202, E-2459S, E-2459S-BK, E2459S, E2459SBK, KN44061, M2577, R82204, R824004
