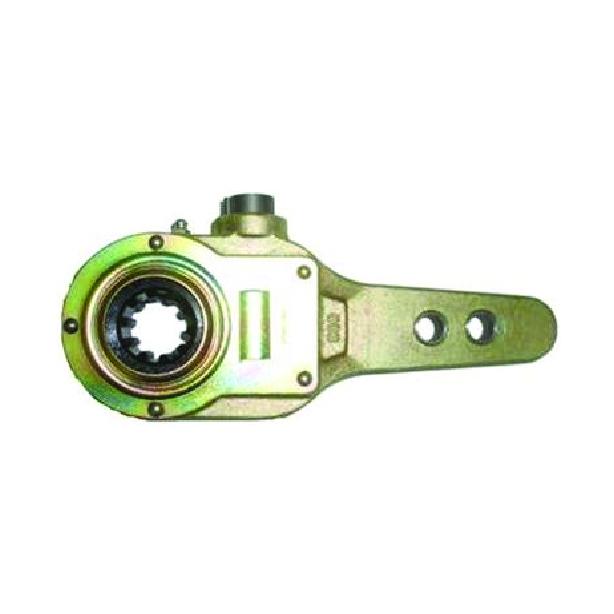

MANUAL SLACK ADJUSTER 1-1/4IN 10 TEETH.D F278303

Manufacturer: FORTPRO
SKU: F224736
Price:
i h h
Products specifications
Basic Part Information
Product LineBrakes
Category NameSlack Adjusters
Part TypeManual Slack Adjuster
ModelBendix Style / PL-20
OEM Part Number278303
Application/Fitment Attributes
Application TypeHeavy Duty Trucks, Semi-Trucks
Compatible Brake Chamber SizesT-16, T-20, T-24
Clevis TypeStraight
Dimensional/Physical Attributes
MaterialAlloy Steel
Arm Bushing Inside Diameter1/2 in.
Arm Length Position 16 in.
Arm Length Position 25 in.
Arm OffsetNo Offset
Body Inclination Angle0 deg.
Clevis Thread Diameter5/8-18 UNF-2B
Slack Spline Count10
Slack Spline Diameter1-1/4 in.
Technical/Performance Attributes
Maximum Operating Temperature158 deg. F (70 deg. C)
Maximum Torque26.000 In./Lbs.
Minimum Operating Temperature(-40 deg. F) (-40 deg. C)
Operation TypeTension Adjuster - Torque
Positive Lock FeatureYes
Special Attributes
Cross References1341010, 1341011, 278302, 278303, 35128, 5-215, 5214, E-4904BK, E-4904S, E-939, E-939-BK, E4904BK, E4904S, KN48001, KN48031, M2582, M3375, R824009
*
*
*
Product tags
Customers who bought this item also bought

MAK11ME229P6 CLAMP,STAINLESS 5"

F286502

HUB CAP 343-4009, P9961

F276180

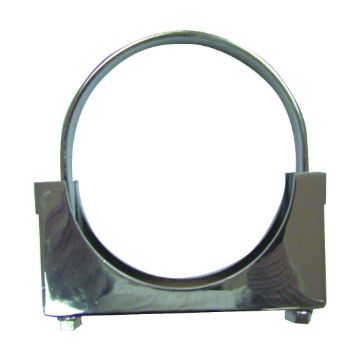

MUFFLER CLAMP 5" GALVANIZED
