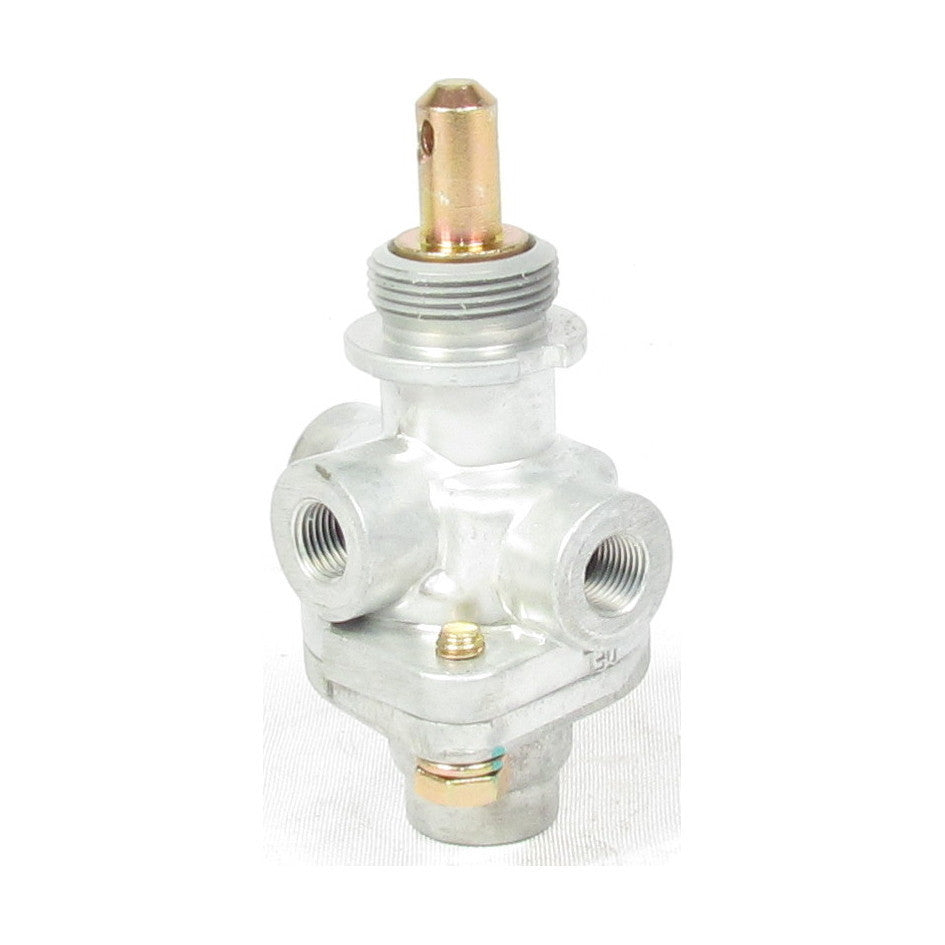

PP-1 PUSH PULL VALVE F276567

Name: PP-1 PUSH PULL VALVE F276567
Brand: FORTPRO
SKU: F224705
Availability: OutOfStock

Fabricante: FORTPRO

Sku: F224705

Precio:

Cant.:

i h h

Especificaciones de productos

Basic Part Information
Product Line	Brakes
Category Name	Air Brake Valves
Part Type	Push Pull Valve
Alternate Part Name	Control Valve
Model	PP-1
OEM Part Number	276567
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
Delivery Port Qty	2
Delivery Port Size	1/8-27 NPT
Exhaust Port Size	1/8-27 NPT
Mounting Hole Size	7/8-20 UNEF-2A
Supply Port Size	1/8-27 NPT
Dimensional/Physical Attributes
Material	Die-cast Zinc
Knob Included	No
Mounting Nut Included	No
Plunger / Button Height	1.16 in.
Plunger Diameter	Ø .374 in.
Technical/Performance Attributes
Automatic Release Pressure	40 psi
Maximum Operating Temperature	200 deg. F (93 deg. C)
Minimum Operating Temperature	-40 deg. F (-40 deg. C)
Packaging & Logistics Attributes
Net Weight	0.62 lb.
Special Attributes
Cross References	170276567, 276567, 276567N, 276567RX, 38597C91, 745-276567N, 745276567N, AV276567, EBN276567N, EM36190, KN20021, KN20021N, LPP-3619, OR276567, OR276567X, R955276567N
Intended Application	Air brake systems for trucks and commercial vehicles. This is a manually operated push-pull valve, allowing on-off control of air flow with an exhaust function.Used in applications where reliable air control is required, such as parking and auxiliary brake systems on trucks and trailers.
