| Product Line | Brakes |
| Category Name | Air Brake Valves |

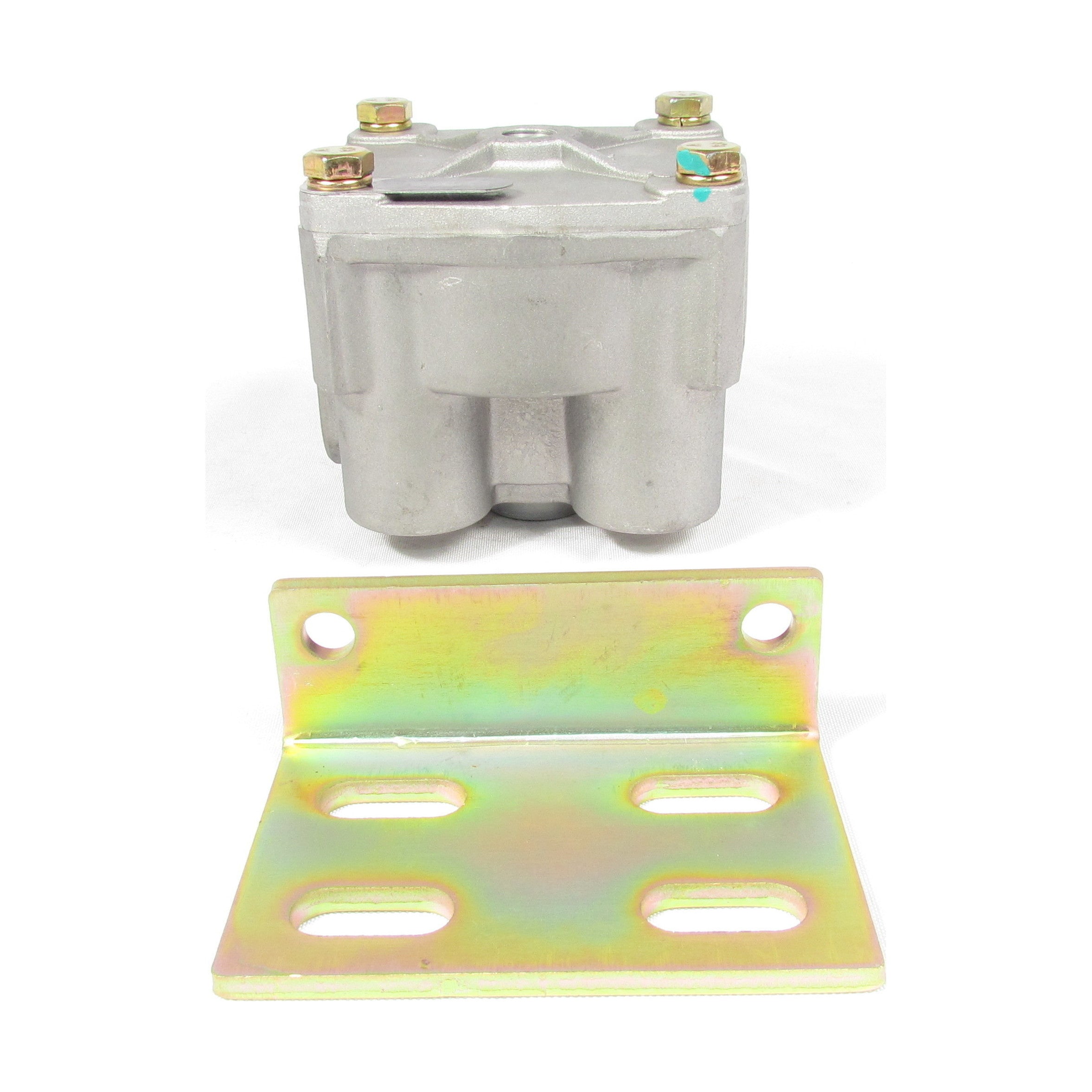

| Part Type | Relay Valve |
| Model | R-12 |
| OEM Part Number | 102626 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Compatible Repair Kit Part Number | F224642 |
| Delivery Port Qty | 4 |
| Delivery Port Size | 1/2-14 NPT |
| Exhaust Port Size | Dust Shield |
| Mounting Bracket Dimension | 0.96 in. x 0.40 in. |
| Mounting Hole Qty | 4 |
| Service Port Size | 1/4-18 NPT |
| Supply Port Size | 1/2-14 NPT |
| Supply Port Qty | 1 |
| Universal Mounting Bracket Included | Yes |
| Material | Die-cast Aluminum |
| Valve Body Configuration | 1 SUP / 4 DEL (V) |
| Crack Pressure | 4.0 psi |
| Maximum Operating Temperature | 200 deg. F (93 deg. C) |
| Minimum Operating Temperature | -40 deg. F (-40 deg. C) |
| Net Weight | 2.82 lb. |
| Cross References | 102626, 102626N, 170102626, 745-102626N, 745102626N, 86824R93, A86473, E-BN102626N, EBN102626N, EM36130, FLTBV2626, LRV-3613, LRV3613, R955102626N, RA86477 |
| Intended Application | - For air brake systems of trucks, trailers and buses.
- Ideal for systems with spring brakes, where the anti-compounding function is crucial to avoid double brake application problems.
- Improves the efficiency of the brake system in heavy-duty and commercial vehicles.
|
