| Product Line | Brakes |
| Category Name | Air Brake Valves |

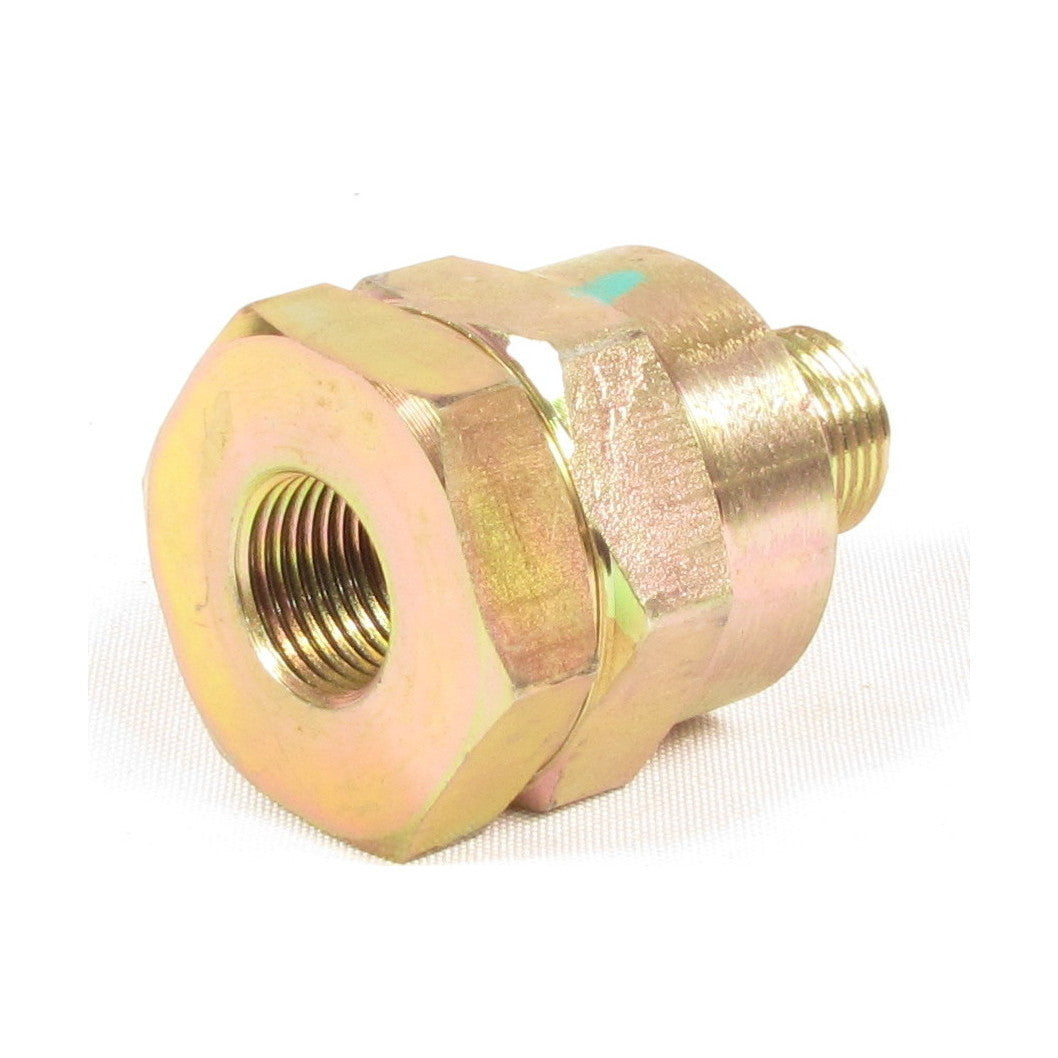

| Part Type | Check Valve |
| Alternate Part Name | Air One-Way Check Valve, Air Line Check Valve, One-Way Valve, Air Check Valve |
| Model | SC-1 |
| OEM Part Number | 227870, 800373 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Body Type | Straight |
| Delivery Port Size | 3/8-18 NPT (Male) |
| Supply Port Size | 3/8-18 NPT (Female) |
| Material | Brass |
| Maximum Operating Temperature | 250 deg. F (121 deg. C) |
| Minimum Operating Temperature | -40 deg. F (-40 deg. C) |
| Net Weight | 0.52 lb. |
| Cross References | 10200 3/8, 170.227870, 227870, 5396-KN23010, 5396KN23010, 800373, EBN227870N, EM40650, KN23010, KN23010X, LCV-4065, LCV4065, R955227870N |
| Intended Application | - One-way check valve used in air brake systems to allow air flow in one direction and prevent flow in the opposite direction.
- Main applications:
- Air brake systems in commercial vehicles
- Separation of air circuits.
- Applications in air suspension systems
|
