| Serration Diameter | 1.006 in., 1.006 in. |
| Serration Length (D) | 1.020 in., 1.020 in. |
| Thread (A) | 3/4 in.-16, 3/4 in.-16 |
| Head Thickness | 0.310 in., 0.310 in. |
| Length from Under Head (B) | 3-3/8 in., 3-3/8 in. |
| Serration | Serrated, Serrated |
| Thread Diameter (H) | 0.750 in., 0.750 in. |
| Threads | 16 per inch, 16 per inch |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8), 10.9 (metric equivalent of Grade 8) |
| Thread Direction | RH (Right Hand), RH (Right Hand) |
| Thread Length (C) | 1.230 in., 1.230 in. |
| Thread Size | 3/4-16 UNF-2A, 3/4-16 UNF-2A |
| Head Style | Round, Round |
| Body Diameter (G) | 0.973 in., 0.973 in. |
| Body Length (E) | 1.310 in., 1.310 in. |
| Head Diameter (F) | 1.310 in., 1.310 in. |
| Stud Type | Headed, Headed |
| Product Line | Driveline & Axles, Driveline & Axles |
| Category Name | Wheel Studs, Inner Cap Nuts and Nuts for Wheels, Wheel Studs, Inner Cap Nuts and Nuts for Wheels |

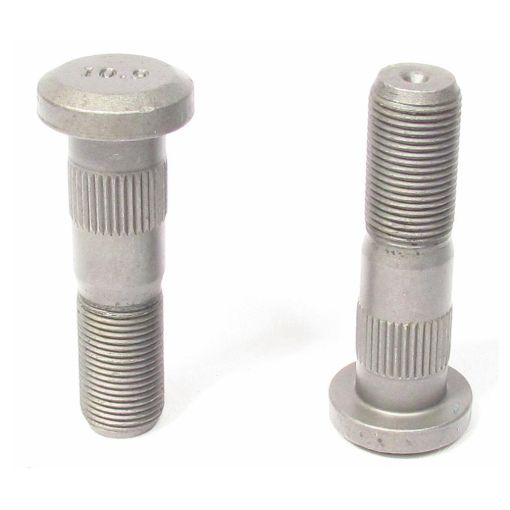

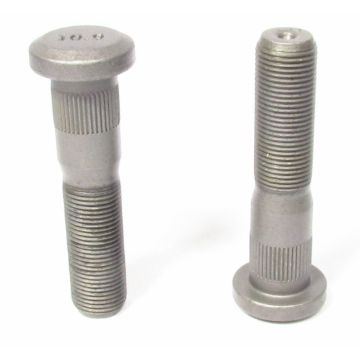

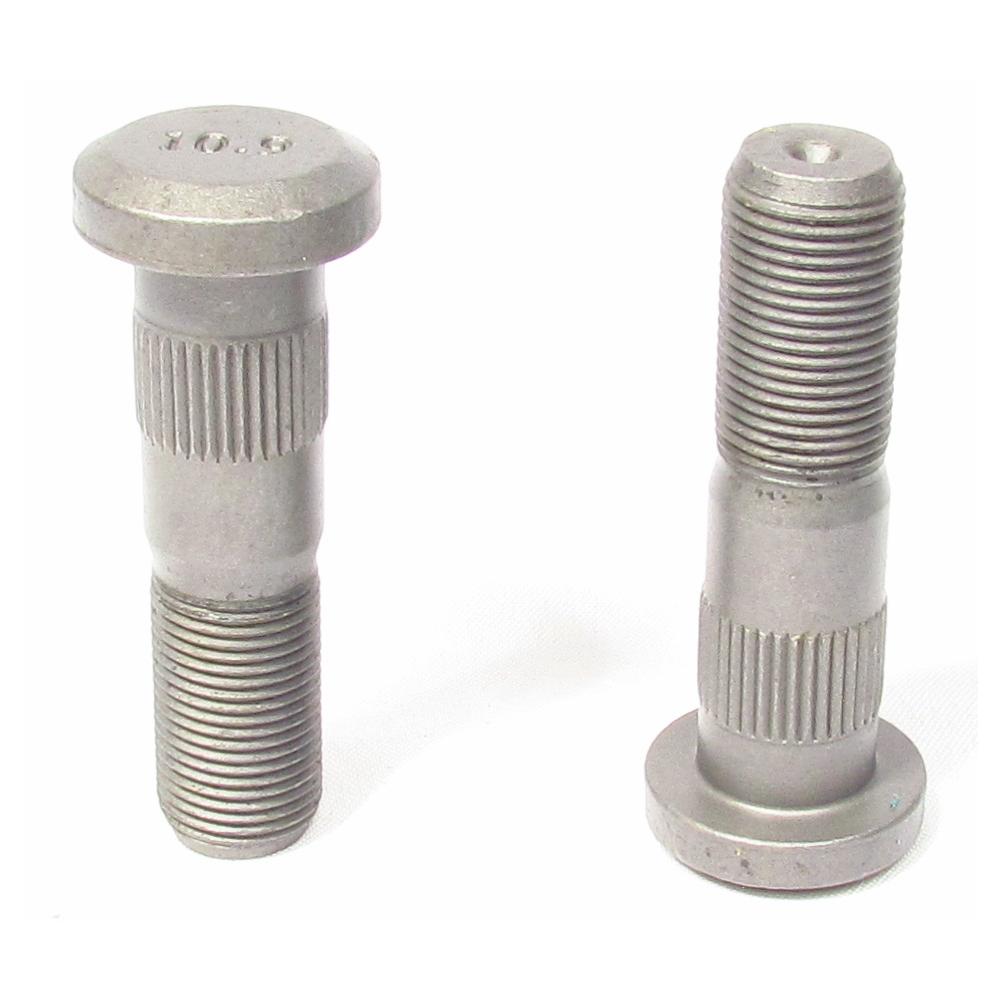

| Part Type | Wheel Stud, Wheel Stud |
| Alternate Part Name | Right Hand Wheel Stud, Serrated Drive Wheel Studs, Right Hand Wheel Stud, Serrated Drive Wheel Studs |
| OEM Part Number | E5896R, E5896R |
| Application Type | Semi-Trucks, Heavy-Duty Trucks, Semi-Trucks, Heavy-Duty Trucks |
| Material | Carbon Alloy Steel, Carbon Alloy Steel |
| Net Weight | 0.64 lb., 0.64 lb. |
| Cross References | 131231R, 132341R, 1541406R, 2016114R, 2016114RP2, 21W276277, 287R, 385896R, 501182R, 6412392, 916152, E-5896-R, E5896R, K233287R, M2438, M243839, PAC1, R005896L, X1935 |
| Intended Application | - Compatible with Paccar axles (K233?2871L / 03?02208 / PAC?2).
|
