| Serration Diameter | 1.015 in., 1.015 in. |
| Serration Length (D) | 0.357 in., 0.357 in. |
| Thread (A) | 3/4 in.-16, 3/4 in.-16 |
| Head Thickness | 0.310 in., 0.310 in. |
| Length from Under Head (B) | 2-7/8 in., 2-7/8 in. |
| Serration | Serrated, Serrated |
| Thread Diameter (H) | 0.750 in., 0.750 in. |
| Threads | 16 per inch, 16 per inch |
| DIN / ISO Grade | 10.9 (metric equivalent of Grade 8), 10.9 (metric equivalent of Grade 8) |
| Thread Direction | RH (Right Hand), RH (Right Hand) |
| Thread Length (C) | 1.180 in., 1.180 in. |
| Thread Size | 3/4-16 UNF-2A, 3/4-16 UNF-2A |
| Head Style | Round, Round |
| Body Diameter (G) | 0.975 in., 0.975 in. |
| Body Length (E) | 0.812 in., 0.812 in. |
| Head Diameter (F) | 1.310 in., 1.310 in. |
| Stud Type | Headed, Headed |
| Product Line | Driveline & Axles, Driveline & Axles |
| Category Name | Wheel Studs, Inner Cap Nuts and Nuts for Wheels, Wheel Studs, Inner Cap Nuts and Nuts for Wheels |

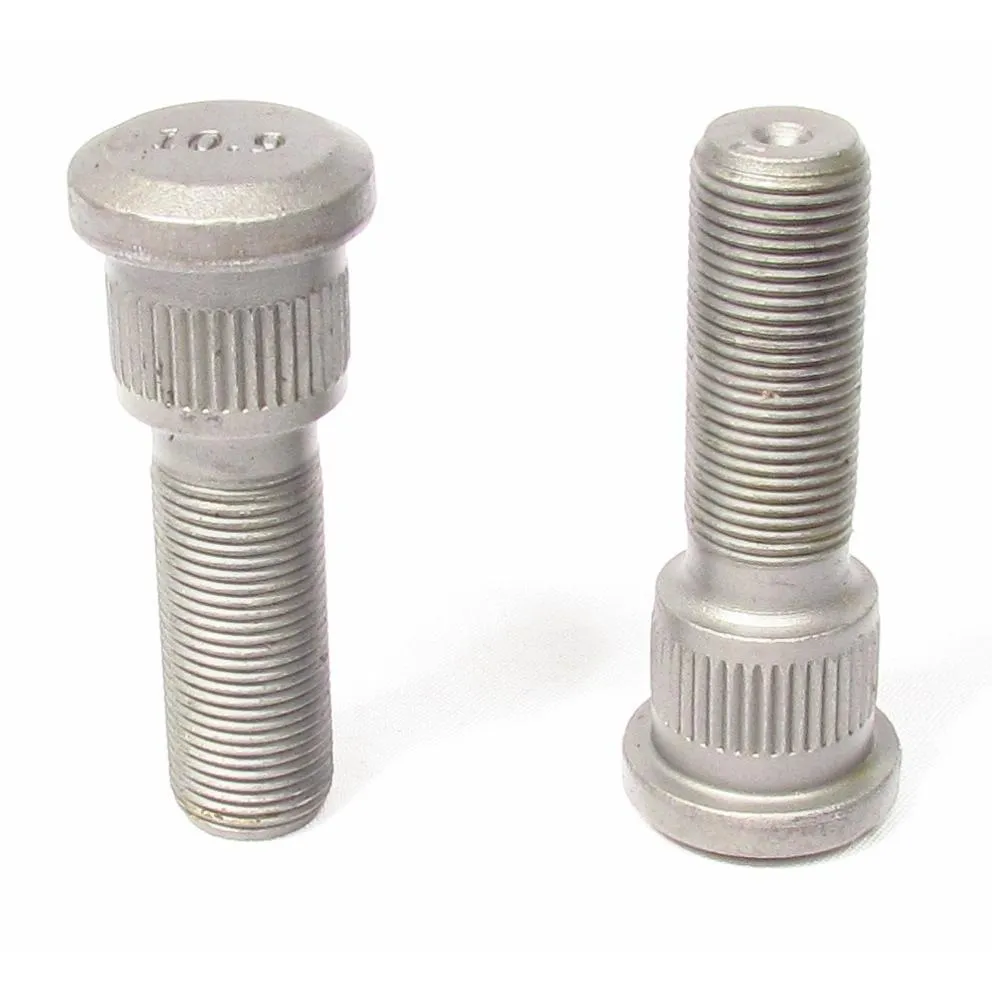

| Part Type | Wheel Stud, Wheel Stud |
| Alternate Part Name | Right Hand Wheel Stud, Serrated Drive Wheel Studs, Right Hand Wheel Stud, Serrated Drive Wheel Studs |
| OEM Part Number | E9010R, E9010R |
| Application Type | Semi-Trucks, Heavy-Duty Trucks, Semi-Trucks, Heavy-Duty Trucks |
| Material | Carbon Alloy Steel, Carbon Alloy Steel |
| Net Weight | 0.51 lb., 0.51 lb. |
| Cross References | 101172, 131273R, 1681016R, 2016106R, 2016106RWE, 36101172, 389010R, 430, E-9010-R, E9010R, M3618, R009010R, W700 |
| Intended Application | - Heavy Duty Trucks, Buses & Trailers. Fit into wheel hubs to secure rims under high torque and load conditions.
|
