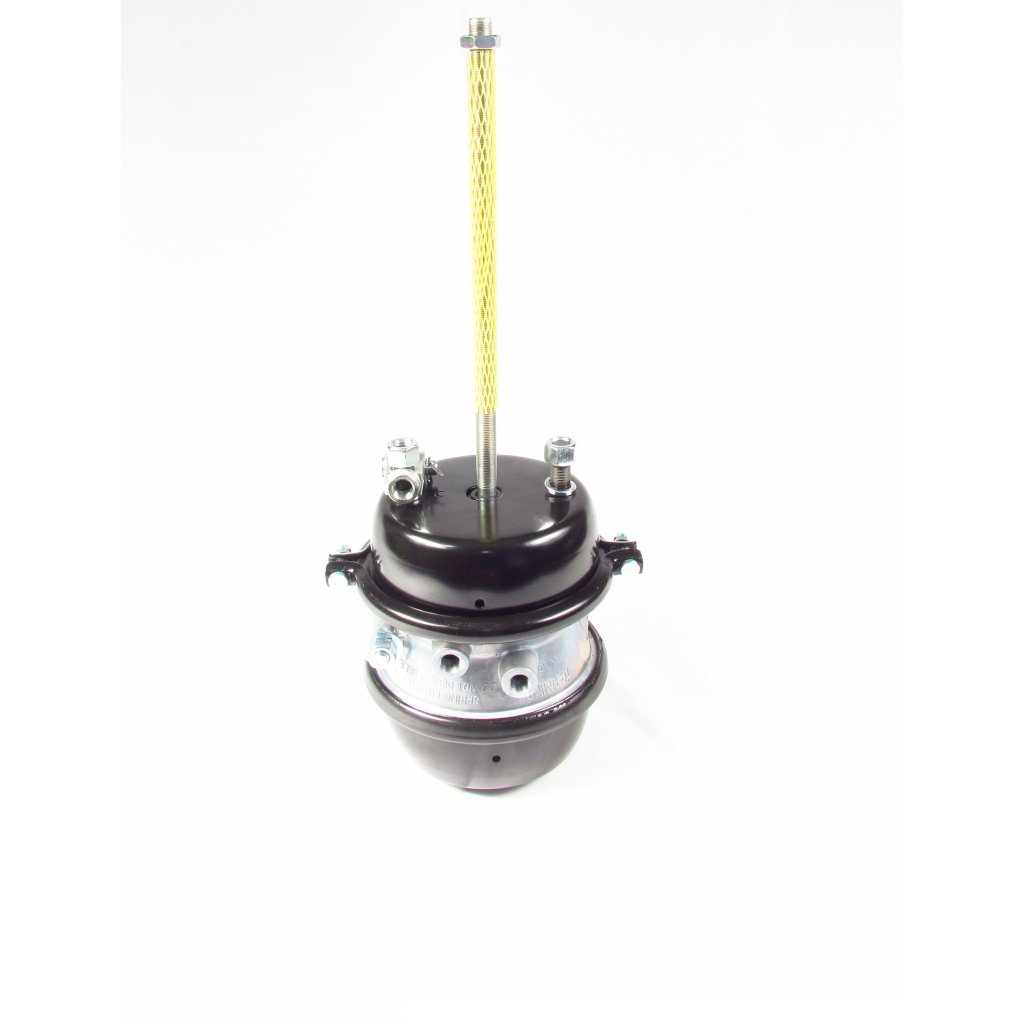

| Part Type | Air Brake Chamber |
| Alternate Part Name | Brake Canister / Brake Can / Air Brake Canister |
| Model | Type 3030, T30/30, 3030, 30 30 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Brake System Compatibility | S-Cam |
| Brake Type | Drum |
| Chamber Style | Double Diaphragm |
| Chamber Type | Spring Brake Chamber |
| Clevis Mounting Type | Threaded |
| Emergency Port Thread Size | 3/8-18 NPTF |
| Mounting Bolt Length | 1.50 in. |
| Mounting Bolt Thread Size | 5/8-11 UNC-2A |
| Outside Diameter (O.D.) | 8.30 in. |
| Push Rod Length | 12.00 in |
| Push Rod Thread Size | 5/8-18 UNF-2A |
| Service Chamber Joint Type | Single Clamp Band |
| Service Port Thread Size | 3/8-18 NPTF |
| Clevis Yoke | Included |
| Maximum Operating Pressure | 150 PSI |
| Port Orientation | 90° |
| Serviceability | Sealed |
| Stroke Lenght | 2.50 in. |
| Stroke Type | Standard Stroke |
| Cross References | 165255, 179SB3030, 179SB3030S, 19QE441RP1, 3030C, 3030TS, 3232951, 3232951X, E-BC3030C, EBC3030C, EM30300-100, EM30300100, GC3030, K049898, NT3030STD120, OTR3030SB, R873030C, SB3030CC, WA3030T |
