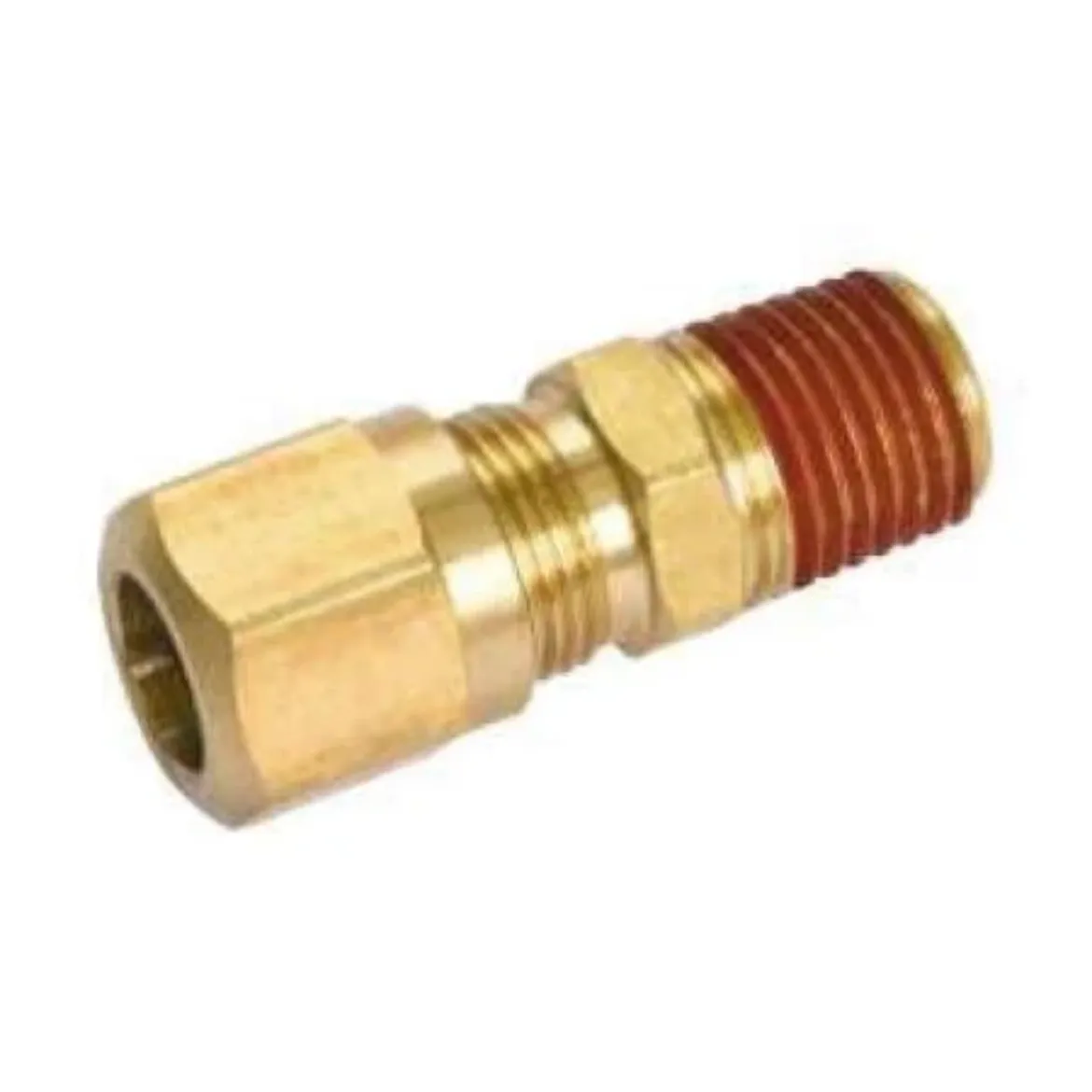

38080 1/2 X 1/4 NAB X MIP ADAPTER

Name: 38080 1/2 X 1/4 NAB X MIP ADAPTER
SKU: F229033
Availability: OutOfStock

Sku: F229033

Precio:

Cant.:

i h h

SalesUnit : 10Pkg

Especificaciones de productos

Basic Part Information
Product Line	Brakes
Category Name	Air Brake NTA Fittings
Part Type	NTA Male Connector
Alternate Part Name	D.O.T. Air Brake Compression Male Connector
OEM Part Number	1368-8B
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks, Trailers
VMRS Code	013-010-295
Dimensional/Phisical Attributes
Material	Brass
Connection Type	Male Thread - Compression Fitting
Connector Shape	Straight
Fitting Angle	0 deg.
Pipe Thread Size	1/4 in.
Tube Outside Diameter	1/2 in.
Technical/Performance Attributes
Maximum Operating Pressure	150 PSI
Packaging & Logistics Attributes
Net Weight	0.1243 lb.
Special Attributes
Cross References	016884, 12-8310, 128310, 1368-8B, 13688B
Intended Application	For use in connecting main or secondary air lines in the air brake system on semi-trailers, trailers, buses and agricultural machinery.
