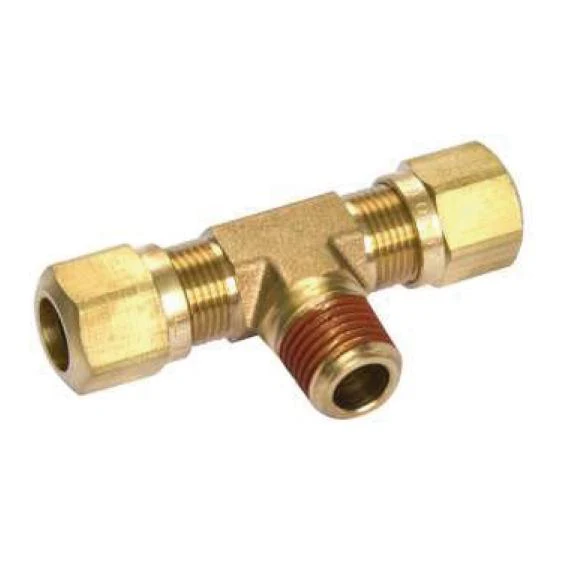

38138 3/8 X 1/8 NAB X MIP BRANCH TEE

Name: 38138 3/8 X 1/8 NAB X MIP BRANCH TEE
SKU: F229060
Availability: OutOfStock

SKU: F229060

Price:

Qty:

i h h

SalesUnit : 10Pkg

Products specifications

Basic Part Information
Product Line	Brakes
Category Name	Air Brake NTA Fittings
Part Type	NTA Male Branch Tee Connector
Alternate Part Name	D.O.T. Air Brake NTA Male Branch Tee Connector
OEM Part Number	1372-6A
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks, Trailers
VMRS Code	013-010-305
Dimensional/Physical Attributes
Material	Brass
Connection Type	Male Thread - 2 Compression Fittings
Connector Shape	Tee
Fitting Angle	90 deg.
Pipe Thread Size	1/8 in.
Tube Outside Diameter	3/8 in.
Technical/Performance Attributes
Maximum Operating Pressure	150 psi
Packaging & Logistics Attributes
Net Weight	0.155 lb.
Special Attributes
Cross References	017262, 11280, 1372-6A, 13726A, 177.14726A, 17714726A, 38138, M-5029, M5029, S772AB-6-2, S772AB62, 17262
Intended Application	For use in connecting main or secondary air lines in the air brake system on semi-trailers, trailers, buses and agricultural machinery.
