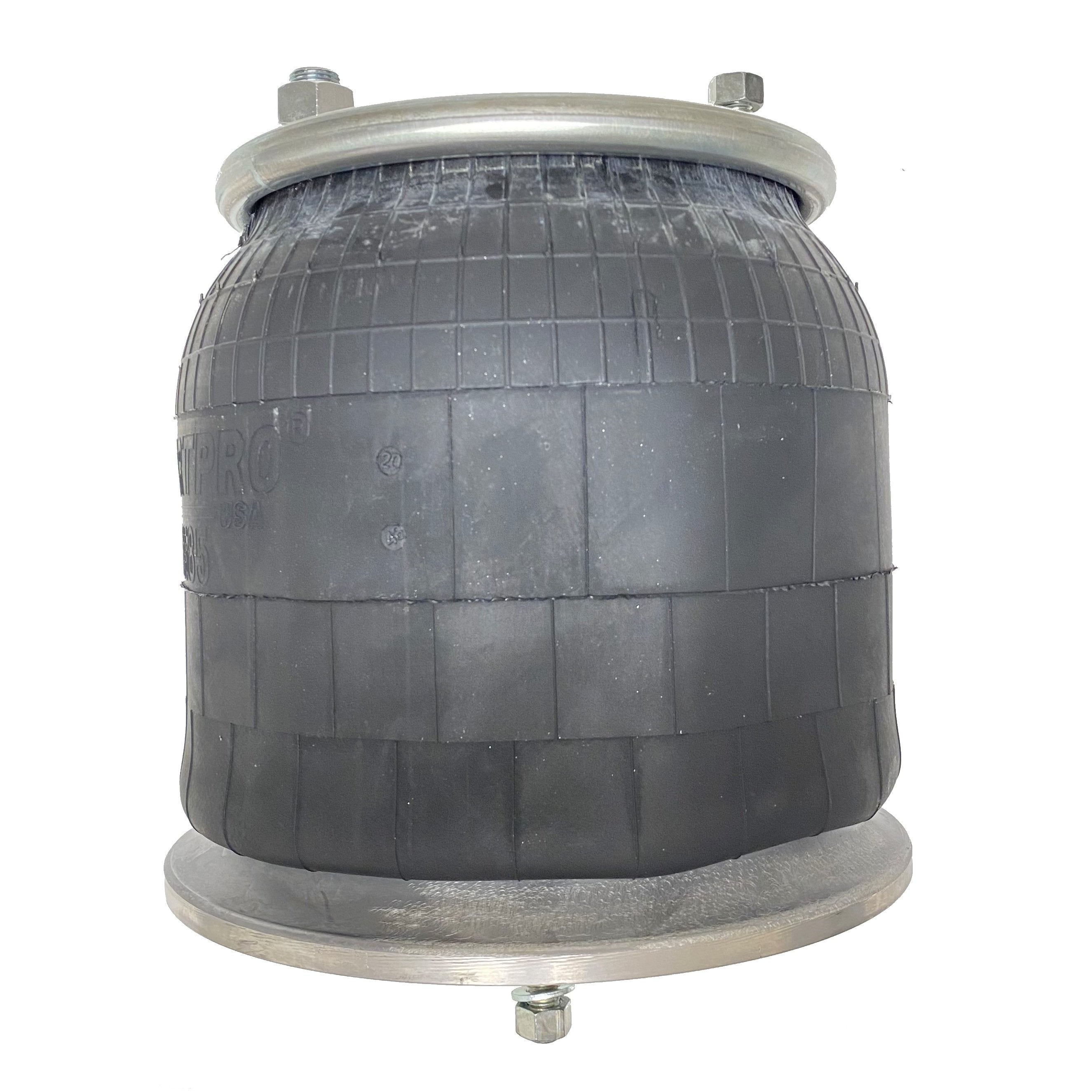

F9781 AIR SPRING 1R12-603 A16-19468-000, 8529

Name: F9781 AIR SPRING 1R12-603 A16-19468-000, 8529
Brand: FORTPRO
SKU: F245585
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F245585

Price:

Qty:

i h h

Specifications
Contact Us

Products specifications

Basic Part Information
Product Line	Suspension
Category Name	Air Springs and Bags
Part Type	Rolling Lobe Air Spring
Alternate Part Name	Air Bag Suspension, Air Suspension Bag, Reversible Sleeve Air Spring, Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Suspension Air Bag, Air Spring Bag, Rear Air Bag, Truck Air Bag
OEM Part Number	681-320-0017
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
Mounting Position	Rear Axle
VMRS Code	016-008-000
Dimensional/Physical Attributes
Material	Fiber reinforced rubber bellows
Air Inlet Inside Thread	1/4-18 NPT
Air Inlet Outside Thread	3/4-16 UNF
Body Diameter	12.60 in.
Bottom Plate Alignment	Parallel
Bottom Plate Diameter	10.62 in.
Bottom Plate Stud	1/2-13 UNC
Mounting Stud Configuration - Bottom	1
Mounting Stud Configuration - Top	2
Piston Diameter	10.62 in.
Piston Height	6.91 in.
Piston Material Type	Aluminum
Top Plate C To C Diameter	6.20 in.
Top Plate Diameter	9.00 in.
Top Plate Stud	1/2-13 UNC
Technical/Performance Attributes
Air Spring Type	1T Reversible Sleeve
Collapsed Length	8.75 in.
Extended Length	23.00 in.
Packaging & Logistics Attributes
Net Weight	17.20 lb.
Special Attributes
Technical Notes	Design height: 12.50 in. No internal bumper Torque the 1/2-13 UNC nuts to 35 lbf ft max and the 3/4-16 UNF combo stud to 50 lbf ft max Release all air pressure and support the frame before removal Check ride height after inflating
Cross References	1613840000, 1614004000, 1616773000, 1619466000, 1R12-603, 1R12603, 3529780, 566CT64266, 566CT68207, 64266, 6813200017, 910S16A382, A1614004000, AB1DF239781, AB1DF23A999, AS9781, EAS9781, FS9781, MAF9781, W013589781, W013778536, W013779780, 16-13810-000, 16-15595-000, 16-19465-000, 16-19466-000, 16-19769-000, 1613810000, 1615595000, 1619465000, 1619769000, 1DF23-9781, 1DF239781, 1R12-1064, 1R121064, 332441, 449780, 6363, 85101151, AS8382, AS9780A, MAF9781B, N32-0197811, N320197811, SC2750, 681-320-0017,A16-14004-000,A16-17574-001,A16-17574-002,16-17575-000,16-19466-000,16-19768-000,W01-358-9781,9781,W01-377-8527,W01-377-8529,W01-377-8536,1R12-603,64266,AS9781,AB1DF23-9781,AS-8382,TR9781,HDV9781,MAF9781
Intended Application	Compatible with Freightliner (Cascadia, Century Class, Coronado, Columbia) AirLiner II (Rear Suspension). , Freightliner AirLiner rear suspension: Cascadia, Century Class, Columbia and Coronado Semi-trucks and heavy-duty trucks
