| Product Line | Suspension |
| Category Name | Air Springs and Bags |

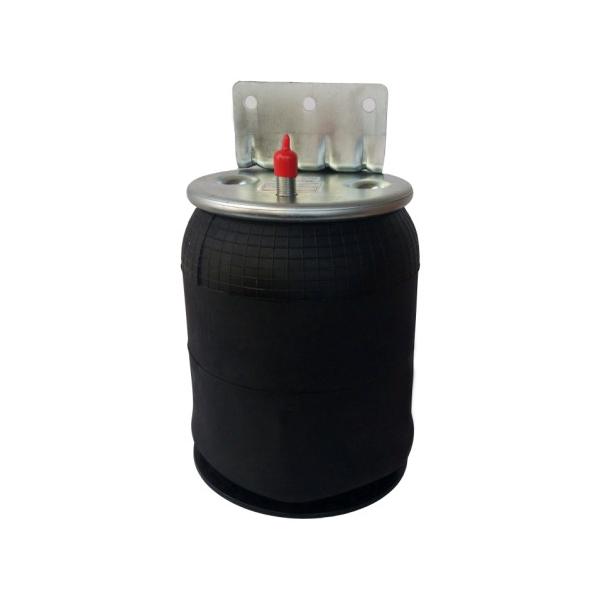

| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Suspension Bag, Reversible Sleeve Air Spring, Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Suspension Air Bag, Air Bag Suspension |
| OEM Part Number | W01-358-9648 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| VMRS Code | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4 16 UNF |
| Body Diameter | 10.12 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10.00 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 4 |
| Piston Height | 4.65 in. |
| Piston Material Type | Composite |
| Top Plate Diameter | 9.00 in. |
| Top Plate Stud | 3/4-10 UNC |
| Air Spring Type | 1T Reversible Sleeve |
| Collapsed Length | 6.70 in. |
| Extended Length | 20.00 in. |
| Net Weight | 14.05 lb. |
| Cross References | 1R12398, 1R12538, 1R12539, 2027911C1, 2027911C2, 3529648, 566CT73770, 73770, 910175P456, 910S16P1068(BK), 9648, AB1DK23M9648, AS9648, FAS-0695, FAS0695, W013589648, 910S16P1068, W01-358-9648 |
| Intended Application | - Compatible with International 9200, 9400, 8100, and LT Series Trucks equipped with Navistar IROS / Air Ride Rear Suspension Systems
|
