| Product Line | Suspension |
| Category Name | Air Springs and Bags |

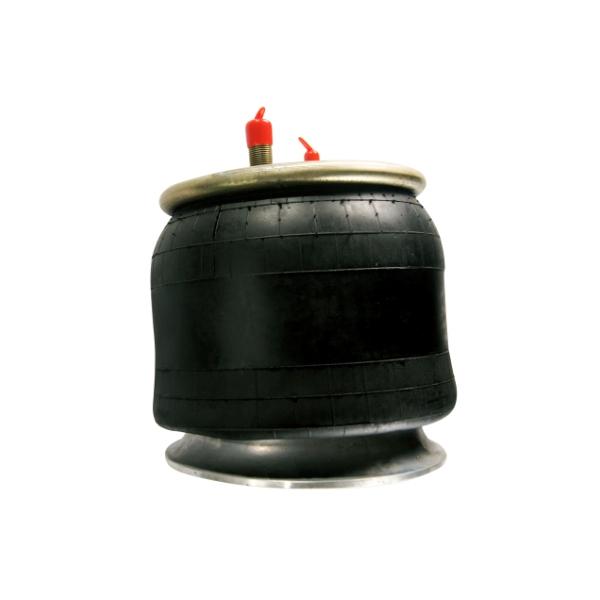

| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Bag Suspension, Suspension Air Bag, Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Reversible Sleeve Air Spring, Air Suspension Bag |
| OEM Part Number | W01-358-8204 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS Code | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4 16 UNF |
| Body Diameter | 10.12 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 9.30 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 2.83 in. |
| Piston Material Type | Composite |
| Top Plate Diameter | 9.00 in. |
| Top Plate Stud | 1/2-13 UNC |
| Air Spring Type | 1T Reversible Sleeve |
| Collapsed Length | 4.40 in. |
| Extended Length | 14.00 in. |
| Net Weight | 10.34 lb. |
| Cross References | 1R12508, 1R12522, 3528204, 566CT64456, 64456, 8204, 8484, 90557173, 90557223, 91012P484, AB1DK23H8204, AS8204, FS8204, W013588204, MAF8204, W01-358-8204 |
| Intended Application | - Compatible with Holland (Neway) Binkley Newlite Rear Air Suspension Systems.
|
